SSA-EB1PL1-22 Banner Emergency Stop Push Buttons

SSA-EB1PL1-22 on Powermatic Associates
Banner
  • SSA-EB1PL1-22
  • SSA-EB1PL1-22

Part#:SSA-EB1PL1-22

Alt. Part#:42207

Manufacturer:Banner

Category:Emergency Stop Push Buttons

Product Lifecycle:Active

Product description

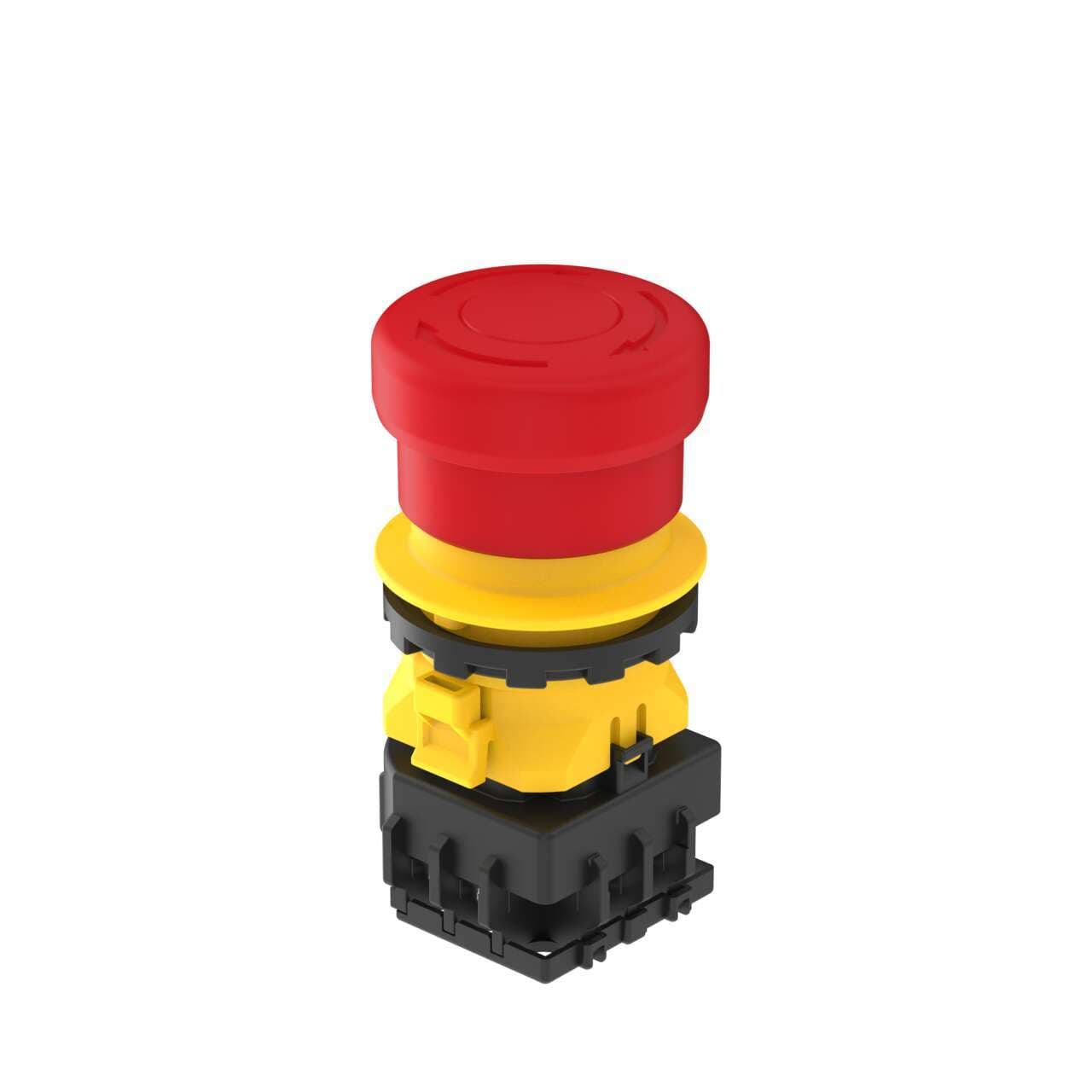

SSA-EB1 Panel-mount Emergency Stop Push Button; Illuminated 40 mm Actuator; Contacts: 2NC/2NO; Screw Terminals; 30 mm mounting hole

Product Details

  • Weight
    45.3592 g
  • Country Of Origin
    JP
  • Button Diameter (mm)
    40
  • Max Operating Temperature ( °C)
    55
  • Min Operating Temperature ( °C)
    -25
  • Actuator/Button Material
    Thermoplastic
  • Contact Rating
    2 A @ 24 V dc
  • Mounting Thread/Style
    Panel
  • Dimensions (HxWxD mm )
    81 x 37 x 40
  • Connection Type
    Screw Terminal
  • Actuated Color
    Red or OFF
  • Button Shroud
    No
  • IP Rating
    IP65
  • Contact Quantity
    2 NC, 2 NO
  • Armed Color (Solid)
    OFF or Red
  • Feature: Lockable
    No
  • Feature: Illuminated
    Yes
  • Actuation
    Twist/Pull-to-Release
  • Illumination Type
    Button
  • Primary Housing Material
    Polycarbonate
  • Device Type
    Push Button
  • Housing Style
    Base

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SSA-EB1PL1-22 on Powermatic Associates is $89.00. Order now.

About the product

Banner Engineering SSA-EB1PL1-22 is a stand-alone illuminated emergency STOP (E-Stop) pushbutton designed with a polycarbonate (PC) base and a 40mm mushroom head for clear visibility and easy operation. It features LED illumination for enhanced visibility in various lighting conditions. This pushbutton offers a screw-clamp terminal connection for secure wiring and has a red actuator for quick identification in emergency situations. It is equipped with 2NO+2NC contacts to facilitate diverse wiring configurations, supporting a supply voltage of 24Vdc. The SSA-EB1PL1-22 is designed for flush mounting in a 30mm hole and can operate within an ambient air temperature range of -25°C to +55°C. It boasts an IP65 degree of protection, making it suitable for use in environments where dust and water resistance are necessary. The operating mode is push-to-stop stay-put (maintained / latched) with a twist-to-release mechanism, and it includes 2 NO and 2 NC auxiliary contacts for additional connectivity options.
