SSA-EB1PL1-04 Banner Emergency Stop Push Buttons

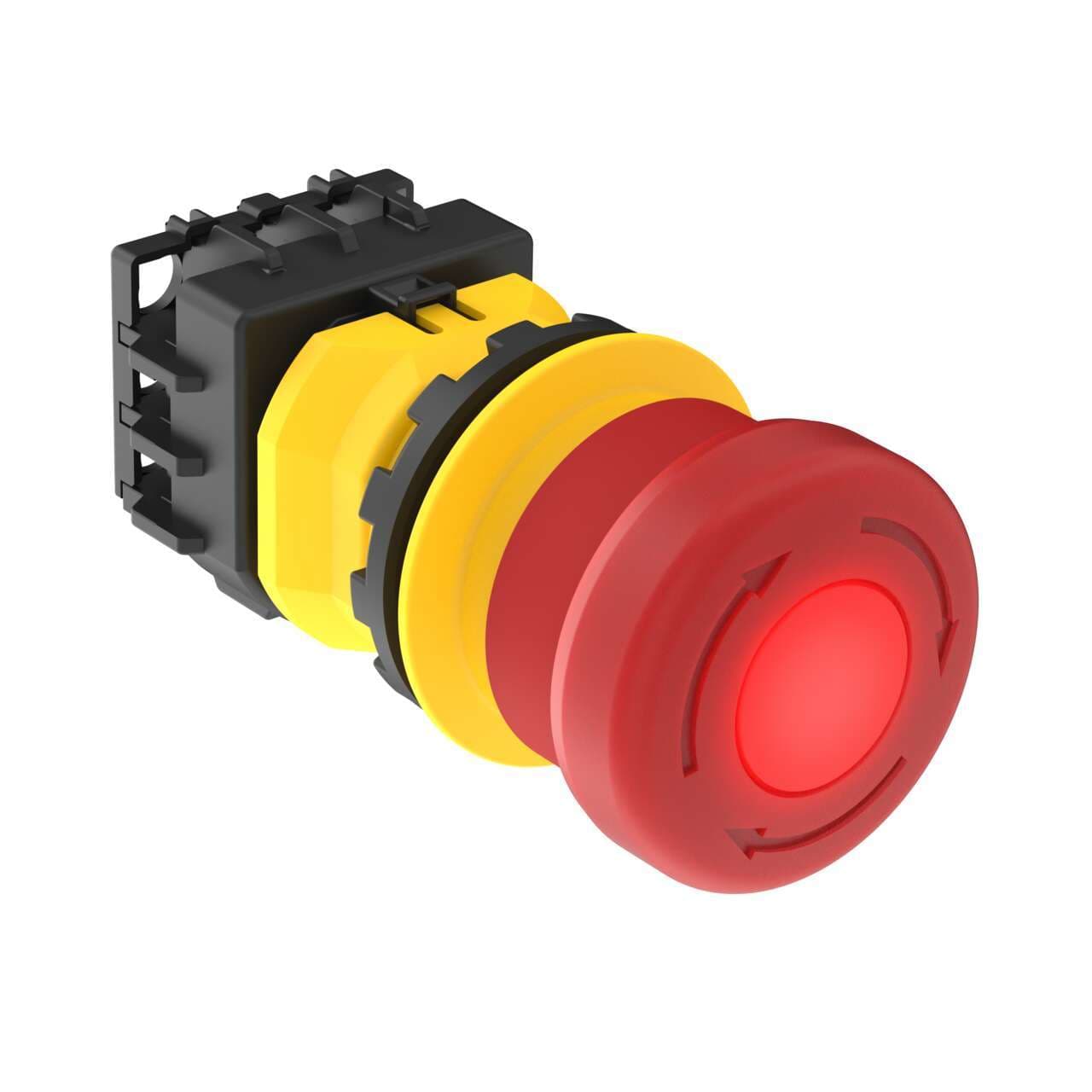

Banner SSA-EB1PL1-04 SSA-EB1 Panel-mount Emergency Stop Push Button; Illuminated 40 mm Actuator; Contacts: 4NC; Screw Terminals; 30 mm mounting hole
Banner

Part#:SSA-EB1PL1-04

Manufacturer:Banner

Alt. Part#:42209

Product Lifecycle:Active

Get a quick Quote!

SSA-EB1 Panel-mount Emergency Stop Push Button; Illuminated 40 mm Actuator; Contacts: 4NC; Screw Terminals; 30 mm mounting hole

About the manufacturer: Banner is one of the manufacturers that offers Emergency Stop Push Buttons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SSA-EB1PL1-04 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    45.3592 g
  • Country Of Origin
    JP
  • Feature: Quick Disconnect
    No
  • Actuator/Button Material
    Thermoplastic
  • Max Operating Temperature ( °C)
    55
  • Button Diameter (mm)
    40
  • Device Type
    Push Button
  • Primary Housing Material
    Polycarbonate
  • Mounting Thread/Style
    Panel
  • Min Operating Temperature ( °C)
    -25
  • Dimensions (HxWxD mm )
    81 x 37 x 40
  • Contact Rating
    2 A @ 30 V dc
  • Feature: Illuminated
    Yes
  • Housing Style
    Base
  • Contact Quantity
    4 NC
  • Feature: Lockable
    No
  • IP Rating
    IP65
  • Illumination Type
    Button
  • Actuation
    Twist/Pull-to-Release
  • Button Shroud
    No
  • Actuated Color
    Red or OFF
  • Connection Type
    Screw Terminal
  • Armed Color (Solid)
    OFF or Red

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SSA-EB1PL1-04 Description

Banner Engineering SSA-EB1PL1-04 is a stand-alone illuminated emergency STOP (E-Stop) pushbutton designed with a 40mm mushroom head and LED illumination for clear visibility. It features a polycarbonate (PC) base for durability and is equipped with screw-clamp terminal connections for secure wiring. The red actuator button is designed for easy identification in emergency situations. This pushbutton offers 4NC contacts and operates on a 24Vdc supply voltage. It is designed for flush mounting in a 30mm hole and can operate in ambient air temperatures ranging from -25°C to +55°C. The SSA-EB1PL1-04 provides an IP65 degree of protection against dust and water ingress. Its operating mode is push-to-stop stay-put (maintained/latched) with a twist-to-release mechanism. It does not have Normally Open (NO) auxiliary contacts but includes 4 Normally Closed (NC) auxiliary contacts for integration into safety circuits.

Related documents SSA-EB1PL1-04 Specs

SSA-EB1PL1-04 194992.pdf
