SSA-EB1PL-12ED1 Banner Emergency Stop Push Buttons

SSA-EB1PL-12ED1 on Powermatic Associates
Banner
  • SSA-EB1PL-12ED1
  • SSA-EB1PL-12ED1

Part#:SSA-EB1PL-12ED1

Alt. Part#:803814

Manufacturer:Banner

Category:Emergency Stop Push Buttons

Product Lifecycle:Active

Product description

Emergency Stop: Flush Mounting 40 mm Push Button; Environmental Rating: IP65; Lighted; Color: Red Solid; 2 N.C. Safety Contacts; 1 N.O. Aux. Contacts; Terminal Strip

Product Details

  • Weight
    399.16096 g
  • Country Of Origin
    JP
  • Feature: Quick Disconnect
    No
  • Stop Signal Color ( Solid)
    Red
  • In-Series Diagnostics
    No
  • Primary Housing Material
    Polycarbonate
  • Max Operating Temperature ( °C)
    55
  • Button Diameter (mm)
    40
  • Actuator/Button Material
    Thermoplastic
  • Dimensions (HxWxD mm )
    103 x 110 x 81
  • Contact Rating
    2 A @ 24 V dc
  • Contact Quantity
    2 NC, 1 NO
  • Feature: Lockable
    No
  • Min Operating Temperature ( °C)
    -25
  • Feature: Illuminated
    Yes
  • Actuation
    Twist/Pull-to-Release
  • Actuated Color
    Red
  • Connection Type
    Terminal Strip
  • Illumination Type
    Base
  • Mounting Thread/Style
    Flat
  • Housing Style
    Base
  • Button Shroud
    No
  • Armed Color (Solid)
    OFF
  • Device Type
    Push Button
  • IP Rating
    IP65

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SSA-EB1PL-12ED1 on Powermatic Associates is $231.00. Order now.

About the product

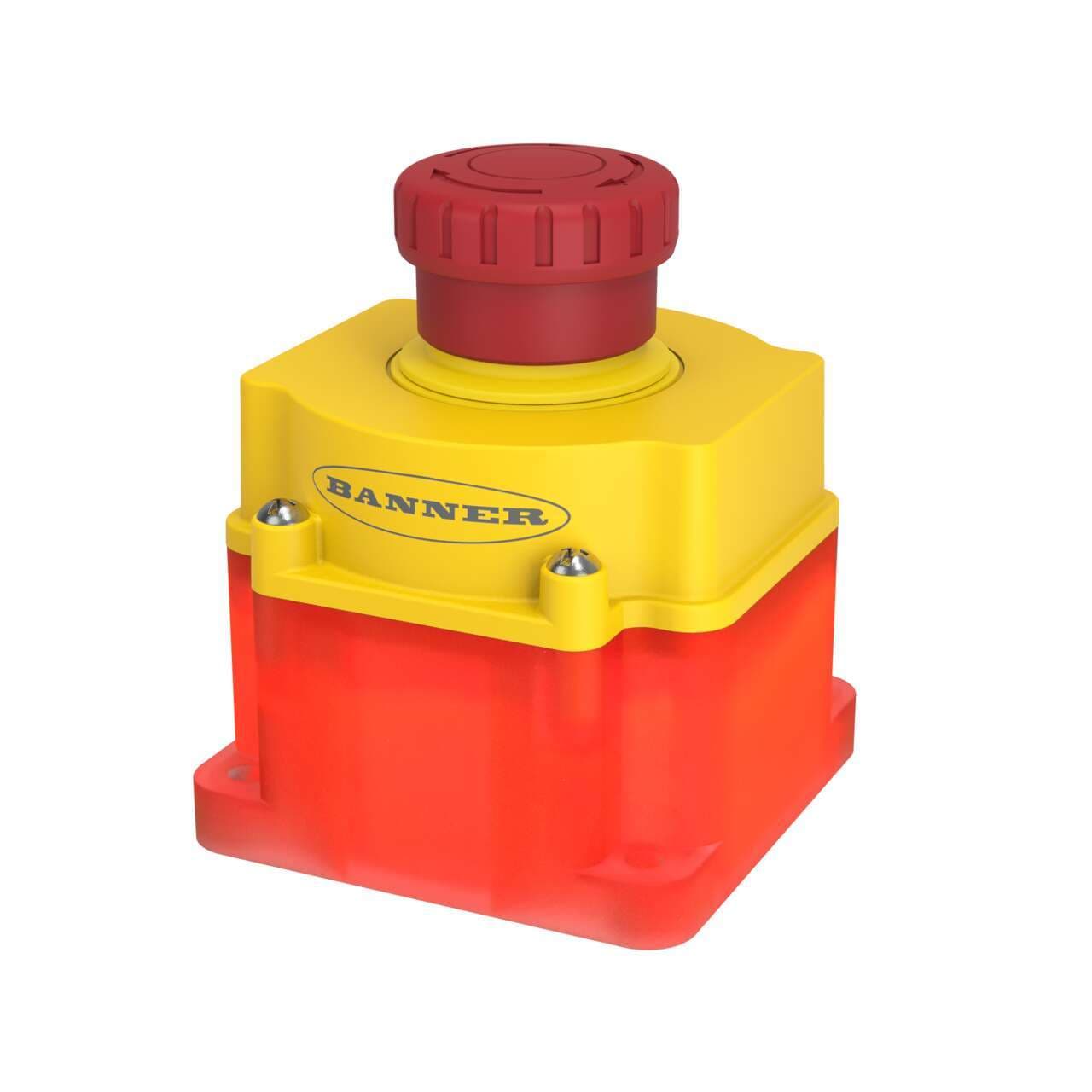

Banner Engineering SSA-EB1PL-12ED1 is an enclosed illuminated emergency STOP (E-Stop) pushbutton featuring a solid red mushroom head (40mm diameter) that, when pushed, activates ON with LED illumination for clear visibility. It is constructed with a polycarbonate housing in yellow, with a red actuator for easy identification. This push-button offers a screw-clamp terminal connection for secure wiring and is designed with 1NO+2NC contacts to accommodate various circuit requirements. It operates on a 24Vdc supply voltage and is mounted via a square base with 4 screws, ensuring a stable installation. The SSA-EB1PL-12ED1 is engineered for safety with an IP65 degree of protection against dust and water ingress, featuring a push-to-stop, stay-put (maintained/latched) operation with a twist-to-release mechanism. It includes 1 Normally Open (NO) auxiliary contact and 2 Normally Closed (NC) auxiliary contacts for comprehensive control in emergency situations.

SSA-EB1PL-12ED1 Related Documents

165998.pdf

This item can ship within 0 day!

Manufacturer warranty

SSA-EB1PL-12ED1 Banner

$231.00

Your price can be lower.
Log in or Create account to check your discount

Stock:

0

Select Qty:

$231.00

$231.00 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
