SSA-EB1PL-12ECQ8 Banner Emergency Stop Push Buttons

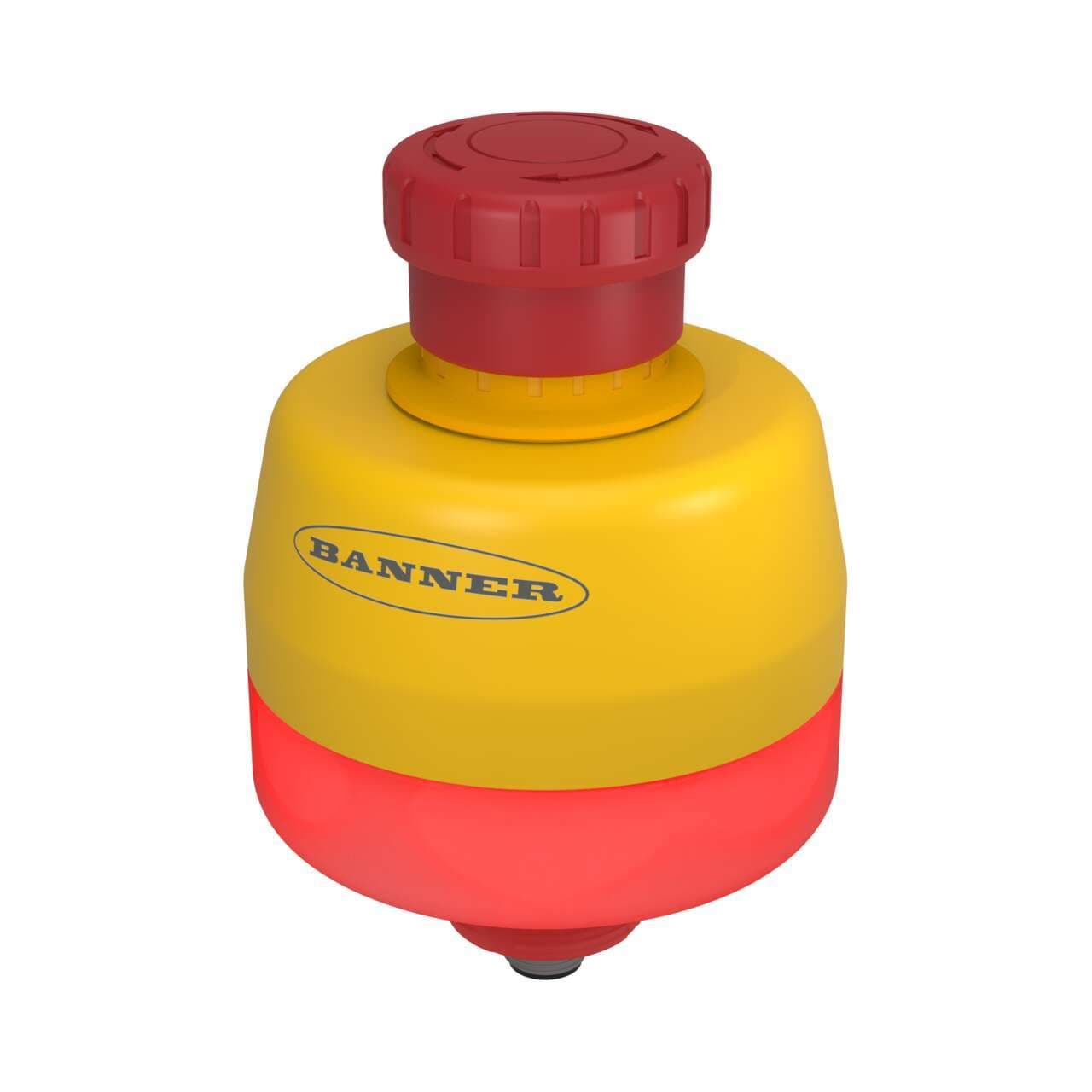

Banner SSA-EB1PL-12ECQ8 SSA-EB1 30 mm Mount Emergency Stop Push Button; Red-Solid Illuminated Base; 40 mm Actuator; IP65; Contacts: 2NC/1NO-PNP; 8-pin M12 Integral QD
Banner

Part#:SSA-EB1PL-12ECQ8

Manufacturer:Banner

Alt. Part#:26627

Product Lifecycle:Active

Get a quick Quote!

SSA-EB1 30 mm Mount Emergency Stop Push Button; Red-Solid Illuminated Base; 40 mm Actuator; IP65; Contacts: 2NC/1NO-PNP; 8-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Emergency Stop Push Buttons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SSA-EB1PL-12ECQ8 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    299.37072 g
  • Country Of Origin
    JP
  • Max Operating Temperature ( °C)
    55
  • Button Diameter (mm)
    40
  • Actuator/Button Material
    Thermoplastic
  • Stop Signal Color ( Solid)
    Red
  • Min Operating Temperature ( °C)
    -25
  • Dimensions (HxWxD mm )
    120 x 80
  • Feature: Lockable
    No
  • In-Series Diagnostics
    No
  • Mounting Thread/Style
    30 mm
  • Feature: Illuminated
    Yes
  • Contact Quantity
    2 NC, 1 NO
  • Illumination Type
    Base
  • Device Type
    Push Button
  • IP Rating
    IP65
  • Actuated Color
    Red
  • Connection Type
    M12 (Euro)
  • Armed Color (Solid)
    OFF
  • Actuation
    Twist/Pull-to-Release
  • Contact Rating
    2 A @ 30 V dc
  • Primary Housing Material
    Polycarbonate
  • Housing Style
    Base
  • Button Shroud
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SSA-EB1PL-12ECQ8 Description

Banner Engineering SSA-EB1PL-12ECQ8 is an enclosed illuminated emergency STOP (E-Stop) push-button designed with a solid red (button pushed ON) illuminated base that is hygienic and ECOLAB compliant. This push-button features a polycarbonate (PC) base and a 40mm mushroom head for easy activation. It comes pre-equipped with an 8-pin M12 Euro-style quick disconnect (QD) connector for straightforward installation. The housing is yellow with a red actuator, providing clear visibility. It includes 1NO+2NC contacts for connectivity, supporting a supply voltage range of 12Vdc to 30Vdc, with 24Vdc nominal. The SSA-EB1PL-12ECQ8 offers versatile mounting options, including surface or base mounting with an M30 thread. It is designed to operate within an ambient air temperature range of -25°C to +60°C and offers a degree of protection rated at IP65 and IP67. The operating mode is push-to-stop and stay-put (maintained/latched) with a twist-to-release mechanism. Additionally, it features 1 Normally Open (NO) and 2 Normally Closed (NC) auxiliary contacts for enhanced functionality.

Related documents SSA-EB1PL-12ECQ8 Specs

SSA-EB1PL-12ECQ8 162754.pdf
