SSA-EB1PL-12ECQ8-WC Banner Emergency Stop Push Buttons

SSA-EB1PL-12ECQ8-WC on Powermatic Associates
Banner

Part#:SSA-EB1PL-12ECQ8-WC

Manufacturer:Banner

Alt. Part#:803637

Product Lifecycle:Active

Get a quick Quote!

SSA-EB1 30 mm Mount Emergency Stop Push Button; Red-Solid illuminated base; 40 mm Actuator; IP65; Contacts: 2NC/1NO-PNP; 8-pin M12 Integral QD; Includes SSA-EB1P-ECWC Washdown Cover

About the manufacturer: Banner is one of the manufacturers that offers Emergency Stop Push Buttons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SSA-EB1PL-12ECQ8-WC Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    362.8736 g
  • Country Of Origin
    JP
  • Contact Rating
    2 A @ 24 V dc
  • IP Rating
    IP65, IP67, IP69
  • Max Operating Temperature ( °C)
    55
  • Actuator/Button Material
    Thermoplastic
  • Stop Signal Color ( Solid)
    Red
  • Button Diameter (mm)
    40
  • Min Operating Temperature ( °C)
    -25
  • Dimensions (HxWxD mm )
    120 x 80
  • Mounting Thread/Style
    30 mm
  • Feature: Washdown Rated
    Yes
  • Feature: Illuminated
    Yes
  • Contact Quantity
    2 NC, 1 NO
  • Feature: Lockable
    No
  • Actuation
    Twist/Pull-to-Release
  • In-Series Diagnostics
    No
  • Connection Type
    M12 (Euro)
  • Illumination Type
    Base
  • Housing Style
    Base
  • Button Shroud
    No
  • Actuated Color
    Red
  • Armed Color (Solid)
    OFF
  • Primary Housing Material
    Polycarbonate
  • Device Type
    Push Button

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SSA-EB1PL-12ECQ8-WC Description

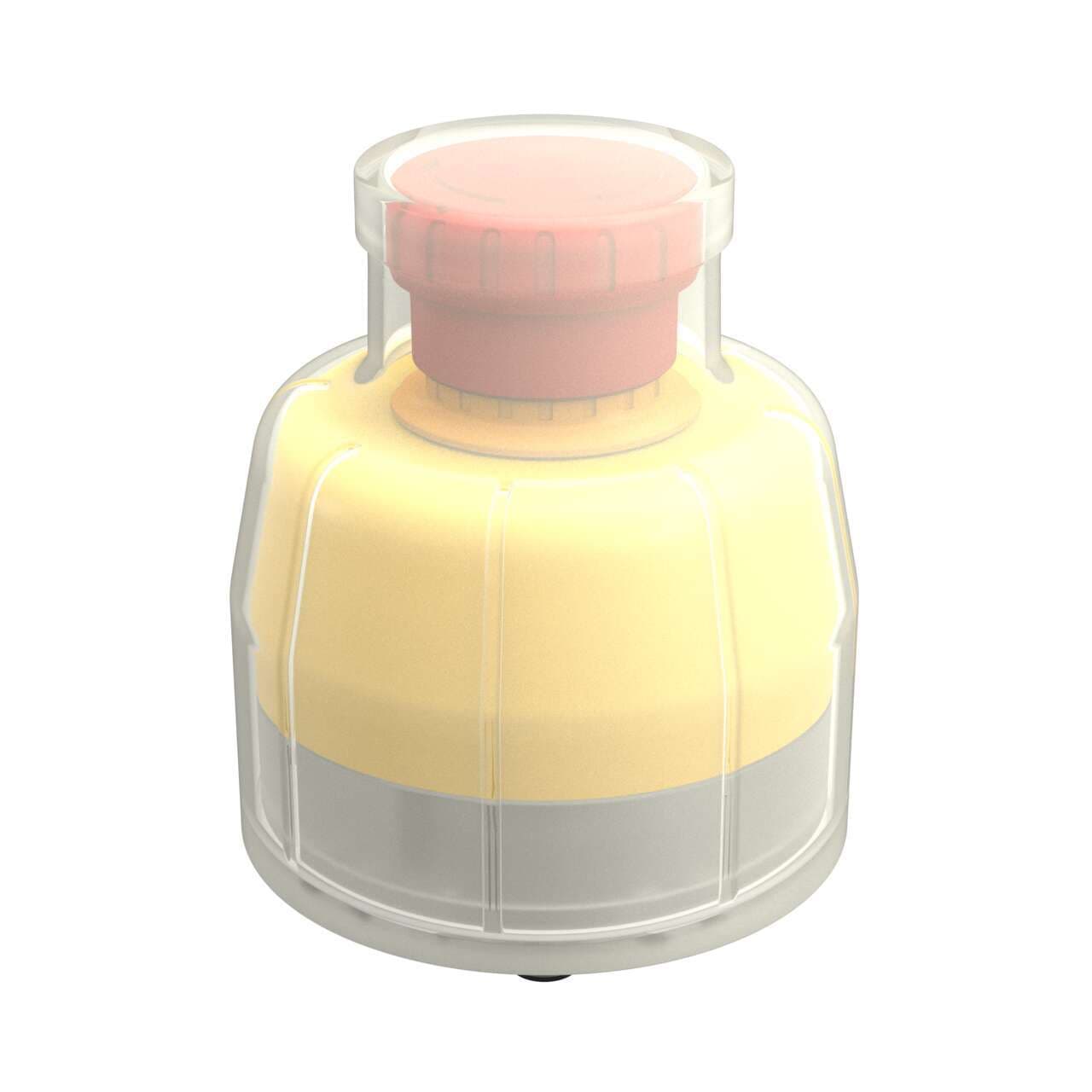

Banner Engineering SSA-EB1PL-12ECQ8-WC is an enclosed illuminated emergency STOP push-button featuring a solid red (button pushed ON) illuminated base with a washdown cover and LED illumination. This push-button is designed with a polycarbonate housing and a 40mm mushroom head. It comes pre-equipped with an 8-pin M12 Euro-style QD connector for connectivity. The housing is yellow, and the actuator is red, providing clear visibility. It includes 1NO+2NC contacts for connectivity and operates with a 24Vdc supply voltage. The SSA-EB1PL-12ECQ8-WC can be mounted via surface or base with an M30 thread and is designed to operate in ambient air temperatures ranging from -25°C to +55°C. It offers a high degree of protection with IP65, IP67, and IP69K ratings, ensuring durability in various environments. The operating mode is push-to-stop and stay-put (maintained/latched) with a twist-to-release mechanism. It also features 1 NO and 2 NC auxiliary contacts for additional connectivity options.

Related documents SSA-EB1PL-12ECQ8-WC Specs

SSA-EB1PL-12ECQ8-WC 162754.pdf
