SSA-EB1PL-02ED1Q5B Banner Emergency Stop Push Buttons

SSA-EB1PL-02ED1Q5B on Powermatic Associates
Banner

Part#:SSA-EB1PL-02ED1Q5B

Manufacturer:Banner

Alt. Part#:30018

Product Lifecycle:Active

Get a quick Quote!

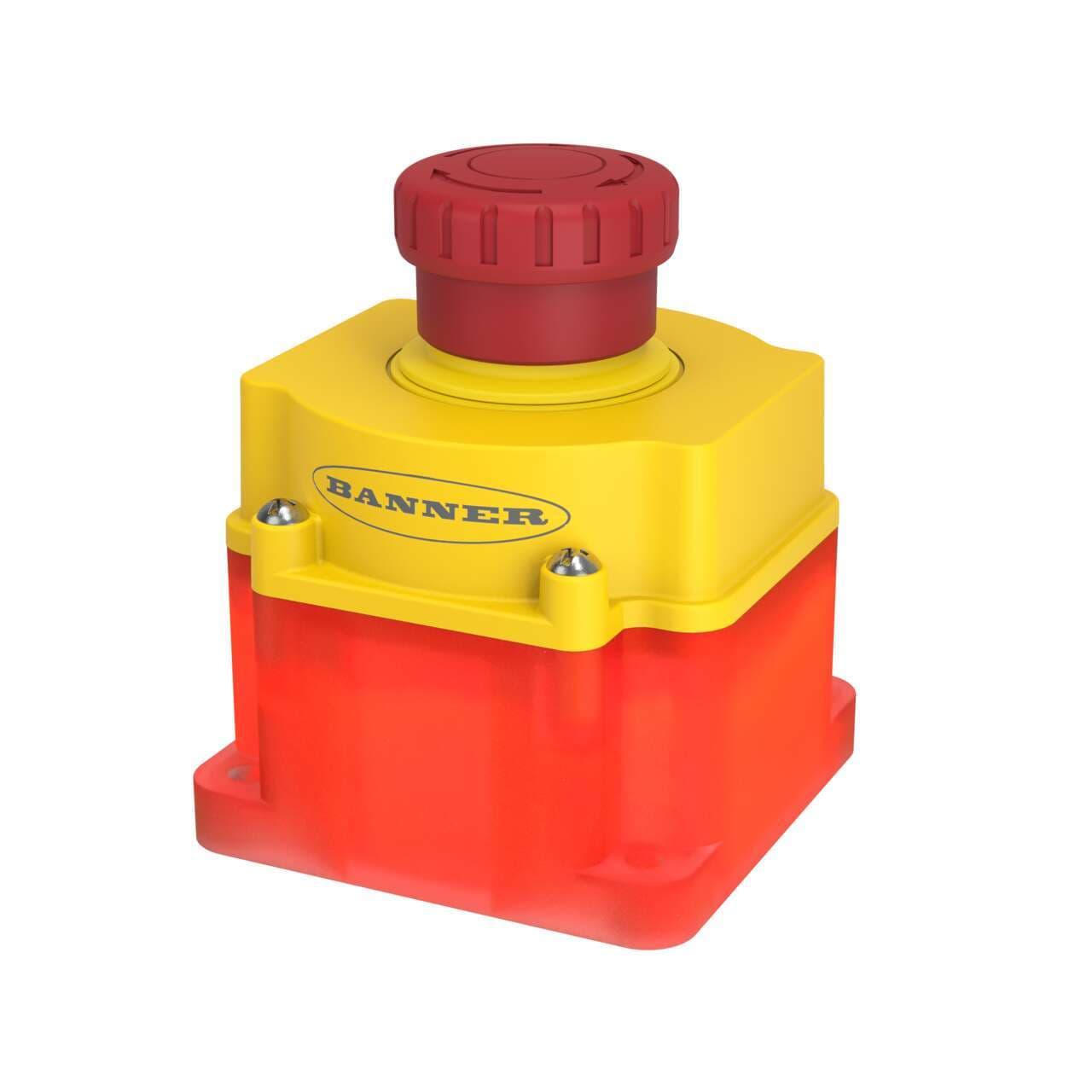

Emergency Stop: Flush Mounting 40 mm Push Button; Environ. Rating: IP65; Lighted; Color: Red Solid; 2 N.C. Safety Contacts; Siemens ET200Pro; 5-pin M12 QD

About the manufacturer: Banner is one of the manufacturers that offers Emergency Stop Push Buttons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SSA-EB1PL-02ED1Q5B Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    399.16096 g
  • Country Of Origin
    JP
  • Contact Rating
    2 A @ 30 V dc
  • Actuator/Button Material
    Thermoplastic
  • Max Operating Temperature ( °C)
    55
  • Mounting Thread/Style
    Flat
  • In-Series Diagnostics
    No
  • Actuated Color
    Red
  • Min Operating Temperature ( °C)
    -25
  • Button Diameter (mm)
    40
  • Dimensions (HxWxD mm )
    103 x 110 x 81
  • Actuation
    Twist/Pull-to-Release
  • Primary Housing Material
    Polycarbonate
  • Device Type
    Push Button
  • Feature: Lockable
    No
  • Feature: Illuminated
    Yes
  • Contact Quantity
    2 NC
  • Illumination Type
    Base
  • Connection Type
    M12 (Euro)
  • Housing Style
    Base
  • Button Shroud
    No
  • IP Rating
    IP65
  • Armed Color (Solid)
    OFF

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SSA-EB1PL-02ED1Q5B Description

Banner Engineering SSA-EB1PL-02ED1Q5B is an enclosed illuminated emergency STOP (E-Stop) push-button featuring a solid red (button pushed ON) illuminated base and safety BUS node compatibility (CH1; pins 1; pins 4 / CH2; pins 2; pins 5) with LED illumination. It is constructed with a polycarbonate housing and has a 40mm mushroom head diameter. This push-button is pre-equipped with a 5-pin M12 Euro-style QD connector for connectivity. It comes in a yellow housing with a red actuator, and it includes 2NC contacts for its operation. The supply voltage required is 24Vdc, and it is designed for mounting on a square base with 4 screws. The SSA-EB1PL-02ED1Q5B operates within an ambient air temperature range of -25°C to +60°C and offers a degree of protection rated at IP65. Its operating mode is push-to-stop stay-put (maintained / latched) with a twist-to-release mechanism. It has 0 Normally Open (NO) auxiliary contacts and 2 Normally Closed (NC) auxiliary contacts.

Related documents SSA-EB1PL-02ED1Q5B Specs

SSA-EB1PL-02ED1Q5B 165999.pdf
