SSA-EB1PL-02ED1Q5A Banner Emergency Stop Push Buttons

SSA-EB1PL-02ED1Q5A on Powermatic Associates
Banner

Part#:SSA-EB1PL-02ED1Q5A

Manufacturer:Banner

Alt. Part#:30005

Product Lifecycle:Active

Get a quick Quote!

Emergency Stop: Flush Mount 40 mm Push Button; Environ. Rating: IP65; Lighted; Color: Red Solid; 2 N.C. Safety Contacts; AB ArmorBlock; 5-pin M12 QD

About the manufacturer: Banner is one of the manufacturers that offers Emergency Stop Push Buttons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SSA-EB1PL-02ED1Q5A Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    41.276872 g
  • Country Of Origin
    JP
  • Actuator/Button Material
    Thermoplastic
  • Button Diameter (mm)
    40
  • Max Operating Temperature ( °C)
    55
  • Min Operating Temperature ( °C)
    -25
  • Feature: Lockable
    No
  • Contact Quantity
    2 NC
  • Dimensions (HxWxD mm )
    103 x 110 x 81
  • Contact Rating
    2 A @ 30 V dc
  • Mounting Thread/Style
    Flat
  • Actuation
    Twist/Pull-to-Release
  • Feature: Illuminated
    Yes
  • In-Series Diagnostics
    No
  • Actuated Color
    Red
  • Primary Housing Material
    Polycarbonate
  • IP Rating
    IP65
  • Connection Type
    M12 (Euro)
  • Armed Color (Solid)
    OFF
  • Housing Style
    Base
  • Button Shroud
    No
  • Illumination Type
    Base
  • Device Type
    Push Button

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SSA-EB1PL-02ED1Q5A Description

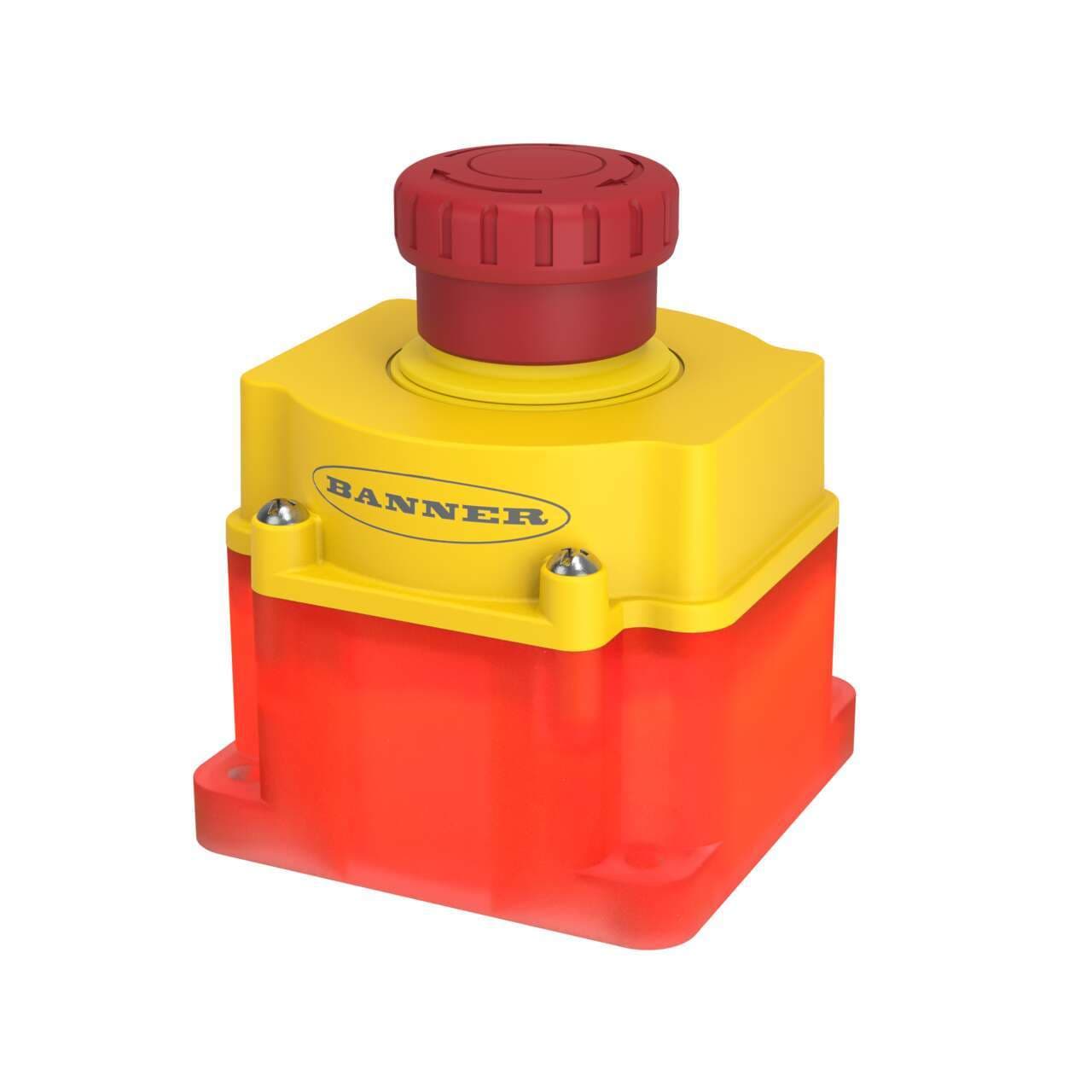

Banner Engineering SSA-EB1PL-02ED1Q5A is a push-button emergency stop device featuring a solid red, illuminated mushroom head and a yellow polycarbonate housing designed for safety applications. This E-Stop pushbutton is compatible with a safety BUS node, supporting CH1 (pins 1 and 2) and CH2 (pins 4 and 5) with LED illumination for clear visibility. It comes pre-equipped with a 5-pin M12 Euro-style quick disconnect (QD) connector, facilitating easy installation. The device has a 40mm diameter mushroom head, operates with a 24Vdc supply voltage, and offers a square base for mounting with 4 screws. It is designed to operate in ambient air temperatures ranging from -25°C to +60°C and provides an IP65 degree of protection against dust and water ingress. The operating mode is push-to-stop and stay-put (maintained/latched) with a twist-to-release mechanism. It features 2NC (Normally Closed) contacts for safety functions, with no NO (Normally Open) auxiliary contacts.

Related documents SSA-EB1PL-02ED1Q5A Specs

SSA-EB1PL-02ED1Q5A 165999.pdf

Manufacturer warranty

$231.00

Request a quote, and we will send availability within minutes.

Select Qty:

$231.00

$231.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
