SSA-EB1PL-02ECQ5B Banner Emergency Stop Push Buttons

SSA-EB1PL-02ECQ5B on Powermatic Associates
Banner
  • SSA-EB1PL-02ECQ5B
  • SSA-EB1PL-02ECQ5B

Part#:SSA-EB1PL-02ECQ5B

Alt. Part#:26261

Manufacturer:Banner

Category:Emergency Stop Push Buttons

Product Lifecycle:Active

Product description

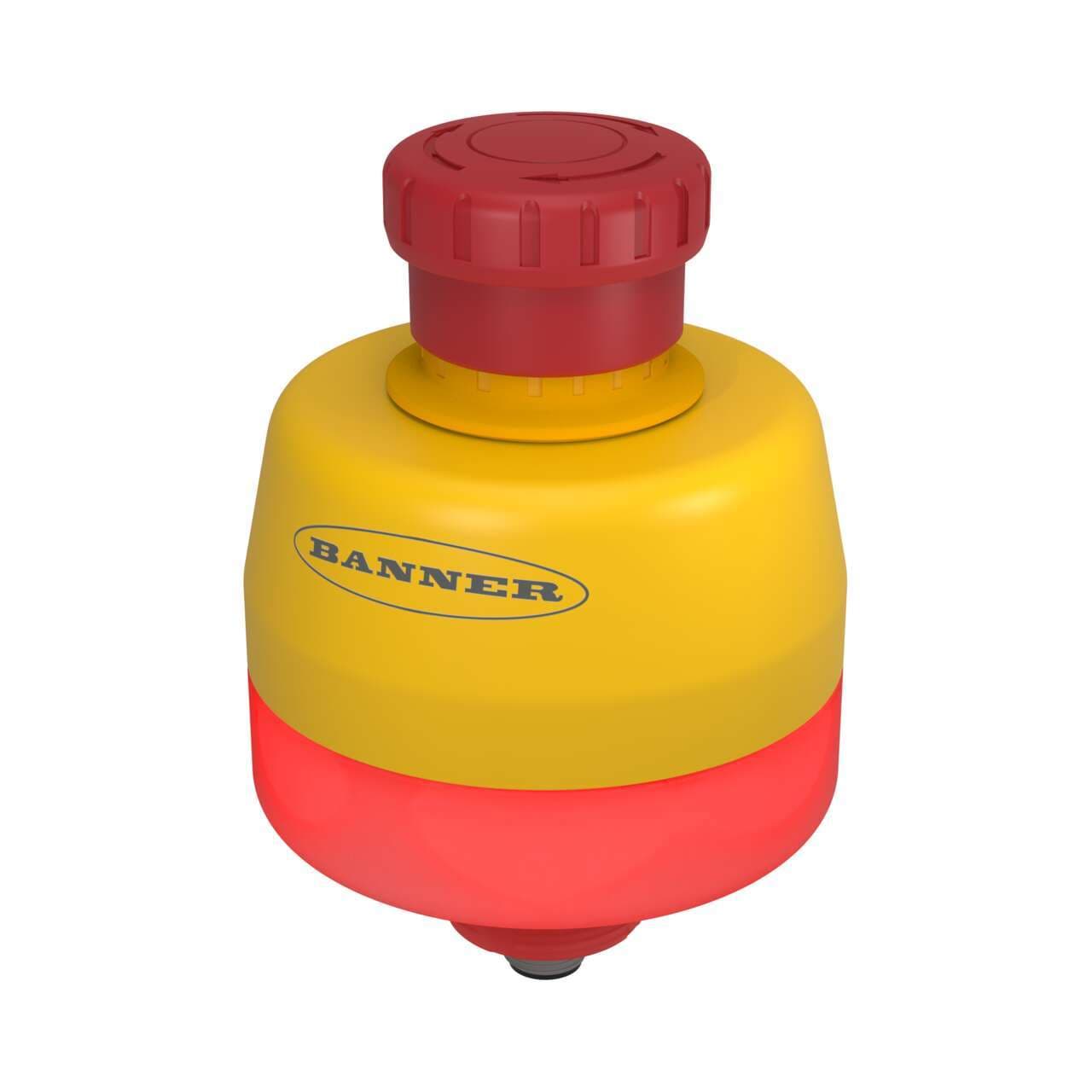

SSA-EB1 30 mm Mount Emergency Stop Push Button; Red-Solid Illuminated Base; 40 mm Actuator; IP65; Contacts: 2 NC; 5-pin M12 Integral QD; Safety BUS Node Compatible CH1=pins1&4 CH2=pins2&5

Product Details

  • Weight
    299.37072 g
  • Country Of Origin
    JP
  • Max Operating Temperature ( °C)
    55
  • Actuator/Button Material
    Thermoplastic
  • Button Diameter (mm)
    40
  • Contact Rating
    2 A @ 24 V dc
  • Dimensions (HxWxD mm )
    120 x 80
  • Min Operating Temperature ( °C)
    -25
  • Mounting Thread/Style
    30 mm
  • Feature: Lockable
    No
  • Contact Quantity
    2 NC
  • Actuation
    Twist/Pull-to-Release
  • Feature: Illuminated
    Yes
  • In-Series Diagnostics
    No
  • IP Rating
    IP65
  • Device Type
    Push Button
  • Connection Type
    M12 (Euro)
  • Illumination Type
    Base
  • Button Shroud
    No
  • Armed Color (Solid)
    OFF
  • Primary Housing Material
    Polycarbonate
  • Actuated Color
    Red
  • Housing Style
    Base

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SSA-EB1PL-02ECQ5B on Powermatic Associates is $236.00. Order now.

About the product

Banner Engineering SSA-EB1PL-02ECQ5B is an enclosed illuminated emergency STOP push-button featuring a solid red, 40mm mushroom head for visible operation and a yellow polycarbonate housing for durability. This E-Stop push-button is designed with an illuminated base compatible with safety BUS nodes (CH1; pins 1; pins 4 / CH2; pins 2; pins 5) and uses LED illumination for clear status indication. It is pre-equipped with a 5-pin M12 Euro-style quick disconnect (QD) connector for easy installation. The device offers 2NC contacts for safety functions, operates with a 24Vdc supply voltage, and can be mounted via surface or base with an M30 thread. It operates within an ambient air temperature range of -25°C to +55°C and offers a degree of protection rated at IP65 and IP67, ensuring durability in various environmental conditions. The operating mode is push-to-stop, stay-put (maintained/latched) with a twist-to-release mechanism. It has 0 Normally Open (NO) auxiliary contacts and 2 Normally Closed (NC) auxiliary contacts for comprehensive control in emergency situations.
