SSA-EB1PL-02ECQ5A Banner Emergency Stop Push Buttons

SSA-EB1PL-02ECQ5A on Powermatic Associates
Banner
  • SSA-EB1PL-02ECQ5A
  • SSA-EB1PL-02ECQ5A

Part#:SSA-EB1PL-02ECQ5A

Alt. Part#:25695

Manufacturer:Banner

Category:Emergency Stop Push Buttons

Product Lifecycle:Active

Product description

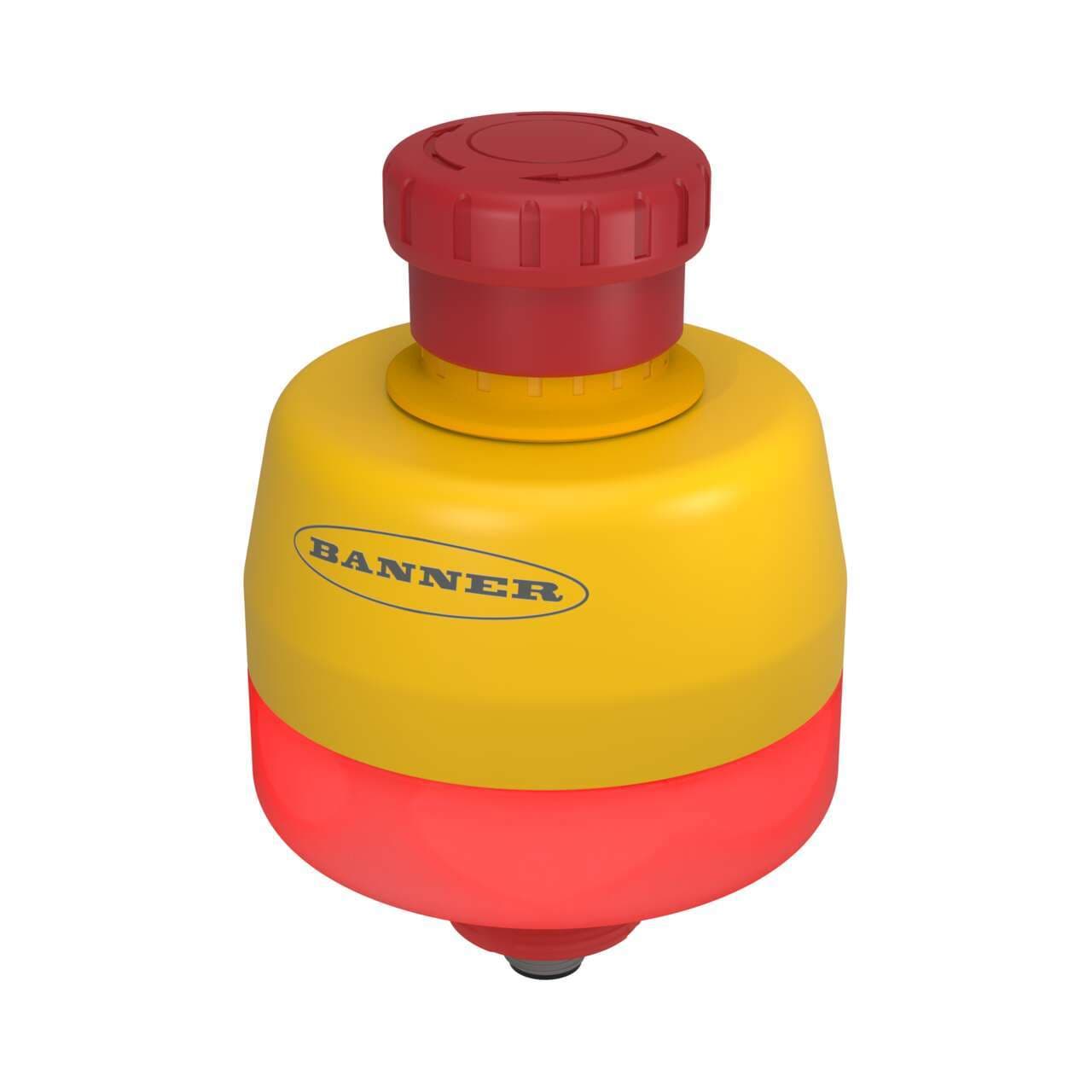

SSA-EB1 30 mm Mount Emergency Stop Push Button; Red-Solid Illuminated Base; 40 mm Actuator; IP65; Contacts: 2 NC; 5-pin M12 Integral QD; Safety BUS Node Compatible CH1=pins1&2 CH2=pins4&5

Product Details

  • Weight
    299.37072 g
  • Country Of Origin
    JP
  • Feature: Illuminated
    Yes
  • Actuation
    Twist/Pull-to-Release
  • Actuated Color
    Red
  • Max Operating Temperature ( °C)
    55
  • Button Diameter (mm)
    40
  • Actuator/Button Material
    Thermoplastic
  • Dimensions (HxWxD mm )
    120 x 80
  • Min Operating Temperature ( °C)
    -25
  • Contact Rating
    2 A @ 24 V dc
  • Feature: Lockable
    No
  • Mounting Thread/Style
    30 mm
  • Contact Quantity
    2 NC
  • In-Series Diagnostics
    No
  • Connection Type
    M12 (Euro)
  • Device Type
    Push Button
  • Primary Housing Material
    Polycarbonate
  • Illumination Type
    Base
  • Housing Style
    Base
  • IP Rating
    IP65
  • Button Shroud
    No
  • Armed Color (Solid)
    OFF

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SSA-EB1PL-02ECQ5A on Powermatic Associates is $236.00. Order now.

About the product

Banner Engineering SSA-EB1PL-02ECQ5A is an enclosed illuminated emergency STOP push-button featuring a solid red mushroom head with LED illumination for clear visibility. This E-Stop push-button is designed for safety BUS node compatibility, supporting CH1 (pins 1 and 2) and CH2 (pins 4 and 5). It is constructed with a polycarbonate housing in yellow, with a red actuator, and measures 40mm in diameter. The device connects via a pre-equipped 5-pin M12 Euro-style QD connector and operates with a 24Vdc supply voltage. It offers a surface or base mounting option with an M30 thread. The SSA-EB1PL-02ECQ5A operates within an ambient air temperature range of -25°C to +55°C and is rated for IP65 and IP67 degrees of protection. Its operating mode is push-to-stop and stay-put (maintained/latched) with a twist-to-release mechanism. It features 2NC contacts for its emergency stop function and does not include Normally Open (NO) auxiliary contacts, but has 2 Normally Closed (NC) auxiliary contacts.

SSA-EB1PL-02ECQ5A Related Documents

164714.pdf

This item can ship within 0 day!
