SSA-EB1P-02-A01 Banner Emergency Stop Push Buttons

SSA-EB1P-02-A01 on Powermatic Associates
Banner

Part#:SSA-EB1P-02-A01

Manufacturer:Banner

Alt. Part#:810952

Product Lifecycle:Active

Get a quick Quote!

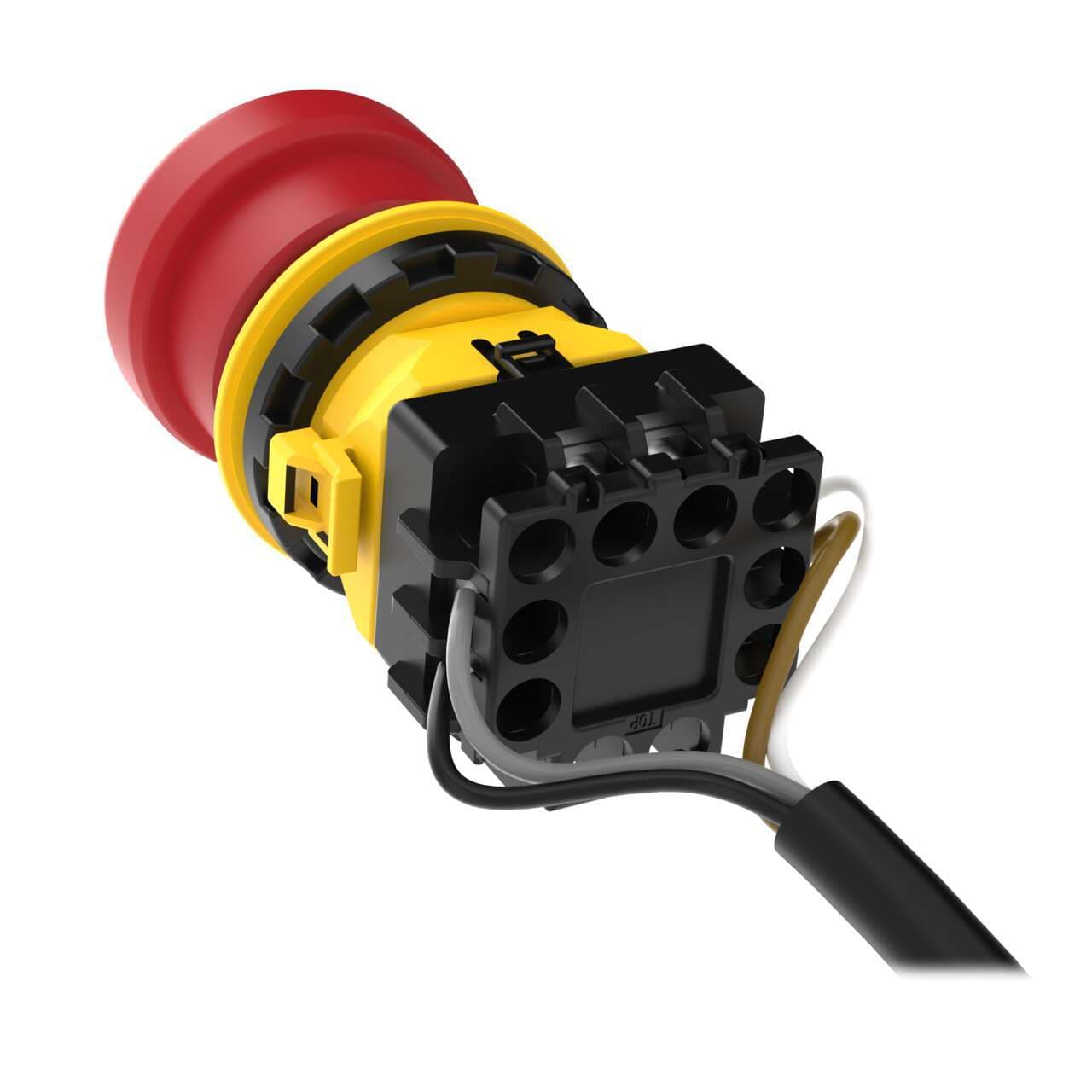

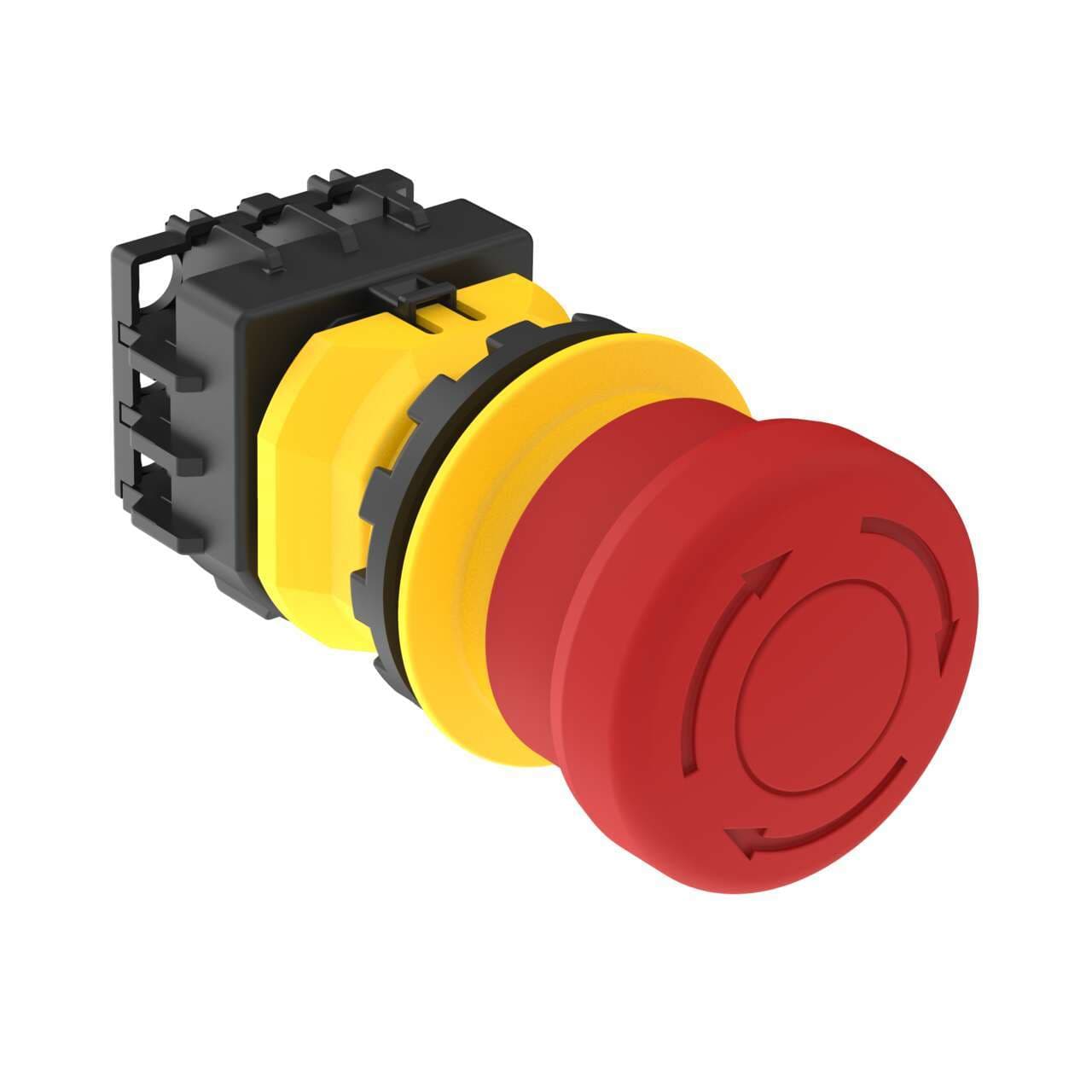

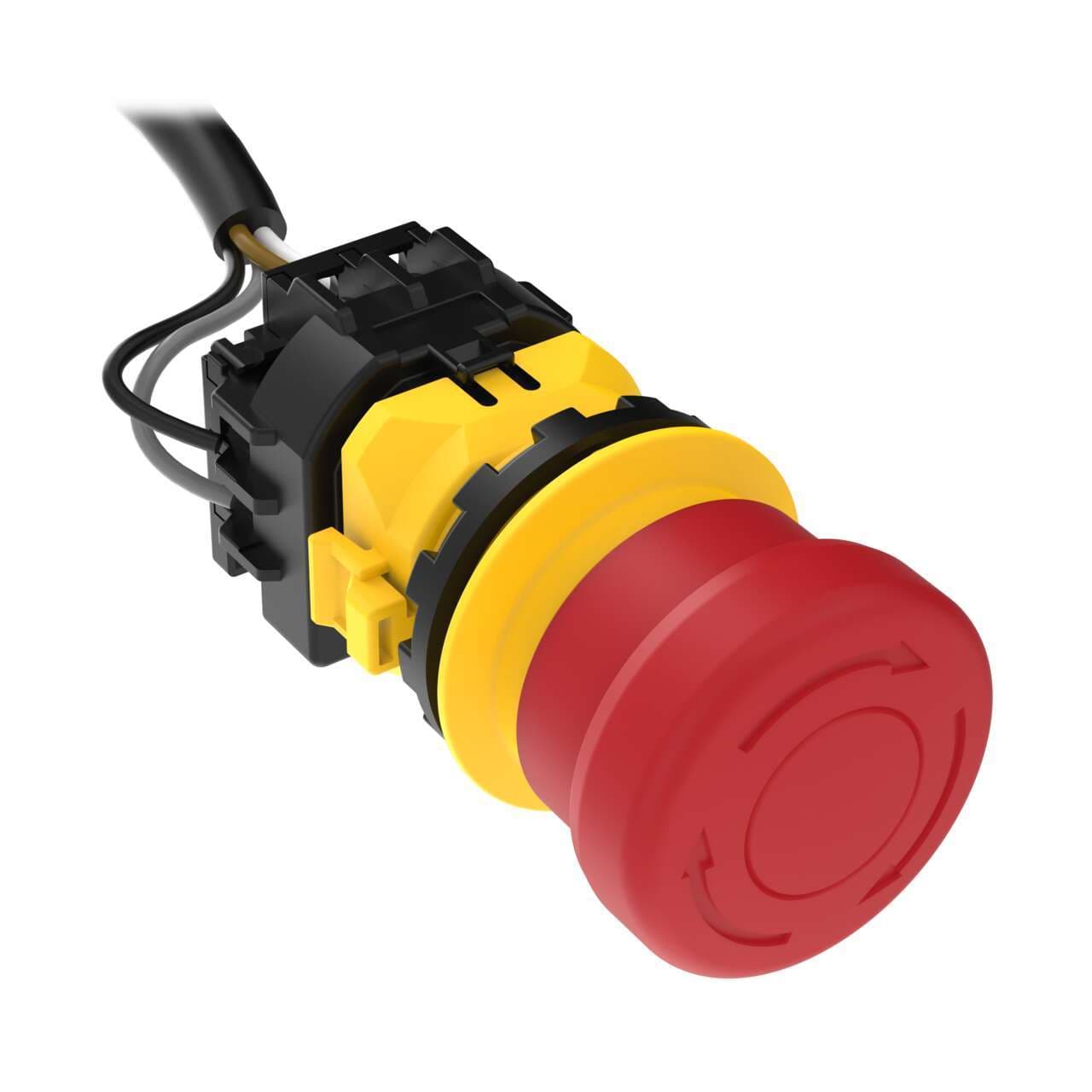

SSA-EB1 Panel-mount Emergency Stop Push Button; ISD Connect Compatible; 40 mm Actuator; Contacts: 2NC; M12 Integral QD Pigtail; 30 mm Mounting Hole

About the manufacturer: Banner is one of the manufacturers that offers Emergency Stop Push Buttons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SSA-EB1P-02-A01 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    90.7184 g
  • Country Of Origin
    JP
  • Max Operating Temperature ( °C)
    60
  • Min Operating Temperature ( °C)
    -25
  • Button Diameter (mm)
    40
  • Actuator/Button Material
    Thermoplastic
  • Feature: Lockable
    No
  • Dimensions (HxWxD mm )
    81 x 37 x 40
  • Contact Quantity
    2 NC
  • Mounting Thread/Style
    Panel
  • Contact Rating
    2 A @ 24 V dc
  • Feature: Illuminated
    No
  • Housing Style
    Base
  • Actuation
    Twist/Pull-to-Release
  • Primary Housing Material
    Polycarbonate
  • Connection Type
    M12 (Euro)
  • Device Type
    Push Button
  • IP Rating
    IP65
  • ISD Connect Compatible
    Yes
  • Button Shroud
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SSA-EB1P-02-A01 Description

SSA-EB1 Panel-mount Emergency Stop Push Button, ISD Connect Compatible, 40 mm Actuator, Contacts: 2NC, M12 QD Pigtail; 30 mm Mounting Hole

Related documents SSA-EB1P-02-A01 Specs

SSA-EB1P-02-A01 220680.pdf

Manufacturer warranty

$122.00

Request a quote, and we will send availability within minutes.

Select Qty:

$122.00

$122.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
