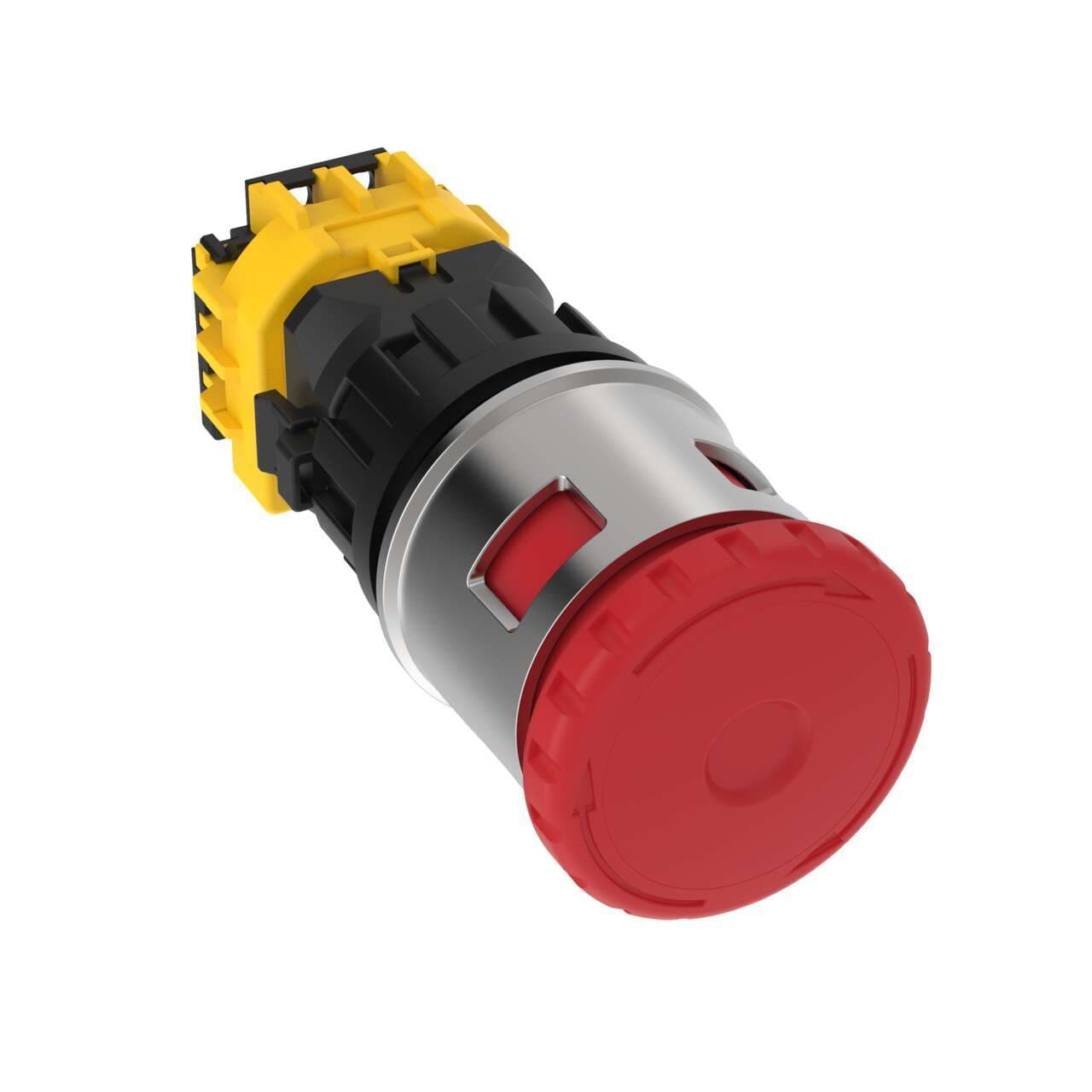

SSA-EB1MP-13 Banner Emergency Stop Push Buttons

SSA-EB1MP-13 on Powermatic Associates
Banner

Part#:SSA-EB1MP-13

Manufacturer:Banner

Alt. Part#:42214

Product Lifecycle:Active

Get a quick Quote!

SSA-EB1 Panel-mount Emergency Stop Push Button; Lockable 44 mm Actuator; Contacts: 3NC/1NO; Screw Terminals; 30 mm mounting hole

About the manufacturer: Banner is one of the manufacturers that offers Emergency Stop Push Buttons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SSA-EB1MP-13 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    45.3592 g
  • Country Of Origin
    JP
  • Min Operating Temperature ( °C)
    -25
  • Contact Rating
    2 A @ 30 V dc
  • Contact Quantity
    3 NC, 1 NO
  • Button Diameter (mm)
    44
  • Max Operating Temperature ( °C)
    60
  • Dimensions (HxWxD mm )
    105 x 37 x 44
  • Actuator/Button Material
    Thermoplastic
  • Mounting Thread/Style
    Panel
  • Primary Housing Material
    Polycarbonate
  • Feature: Lockable
    Yes
  • Feature: Illuminated
    No
  • Actuation
    Twist-to-Release
  • Device Type
    Push Button
  • Housing Style
    Base
  • Connection Type
    Screw Terminal
  • IP Rating
    IP65
  • Button Shroud
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SSA-EB1MP-13 Description

Banner Engineering SSA-EB1MP-13 is a stand-alone emergency STOP (E-Stop) push-button designed with a padlockable feature for enhanced security. It features a polycarbonate (PC) base and a red actuator with a 44mm mushroom head for easy operation. The connection is facilitated through a screw-clamp terminal connection. This push-button is designed for flush mounting in a 30mm hole and operates with a push-to-stop, stay-put (maintained/latched), and twist-to-release mechanism. It includes 1 Normally Open (NO) and 3 Normally Closed (NC) contacts for integration into various control systems. The SSA-EB1MP-13 is built to withstand ambient air temperatures ranging from -25°C to +60°C and offers a degree of protection rated at IP65, making it suitable for diverse industrial environments.

Related documents SSA-EB1MP-13 Specs

SSA-EB1MP-13 194992.pdf
