SSA-EB1MLXRP-12ED1Q8 Banner Emergency Stop Push Buttons
Part#:SSA-EB1MLXRP-12ED1Q8
Alt. Part#:29992
Manufacturer:Banner
Category:Emergency Stop Push Buttons
Product Lifecycle:Active
Product description
Emergency Stop: Flush Mount 44 mm Lockable Push Button; Environ. Rating: IP65; Lighted; Color: Red Solid/Flashing; 2 N.C. Safety Contacts; 1 N.O. aux. Contacts; 8-pin M12 QD
Product Details
- Weight 458.12792 g
- Country Of Origin JP
- Feature: Quick Disconnect Yes
- Button Diameter (mm) 44
- Feature: Lockable Yes
- Min Operating Temperature ( °C) -25
- Actuated Color Red - Flash
- Connection Type M12 (Euro)
- Max Operating Temperature ( °C) 55
- Actuator/Button Material Thermoplastic
- Stop Signal Color ( Solid) Red
- Contact Rating 2 A @ 24 V dc
- Dimensions (HxWxD mm ) 113 x 110 x 81
- Mounting Thread/Style Flat
- In-Series Diagnostics No
- Contact Quantity 2 NC, 1 NO
- Feature: Illuminated Yes
- Actuation Twist-to-Release
- Primary Housing Material Polycarbonate
- Illumination Type Base
- Device Type Push Button
- Housing Style Base
- Button Shroud No
- Armed Color (Solid) OFF
- IP Rating IP65
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SSA-EB1MLXRP-12ED1Q8 on Powermatic Associates is $300.00. Order now.
About the product

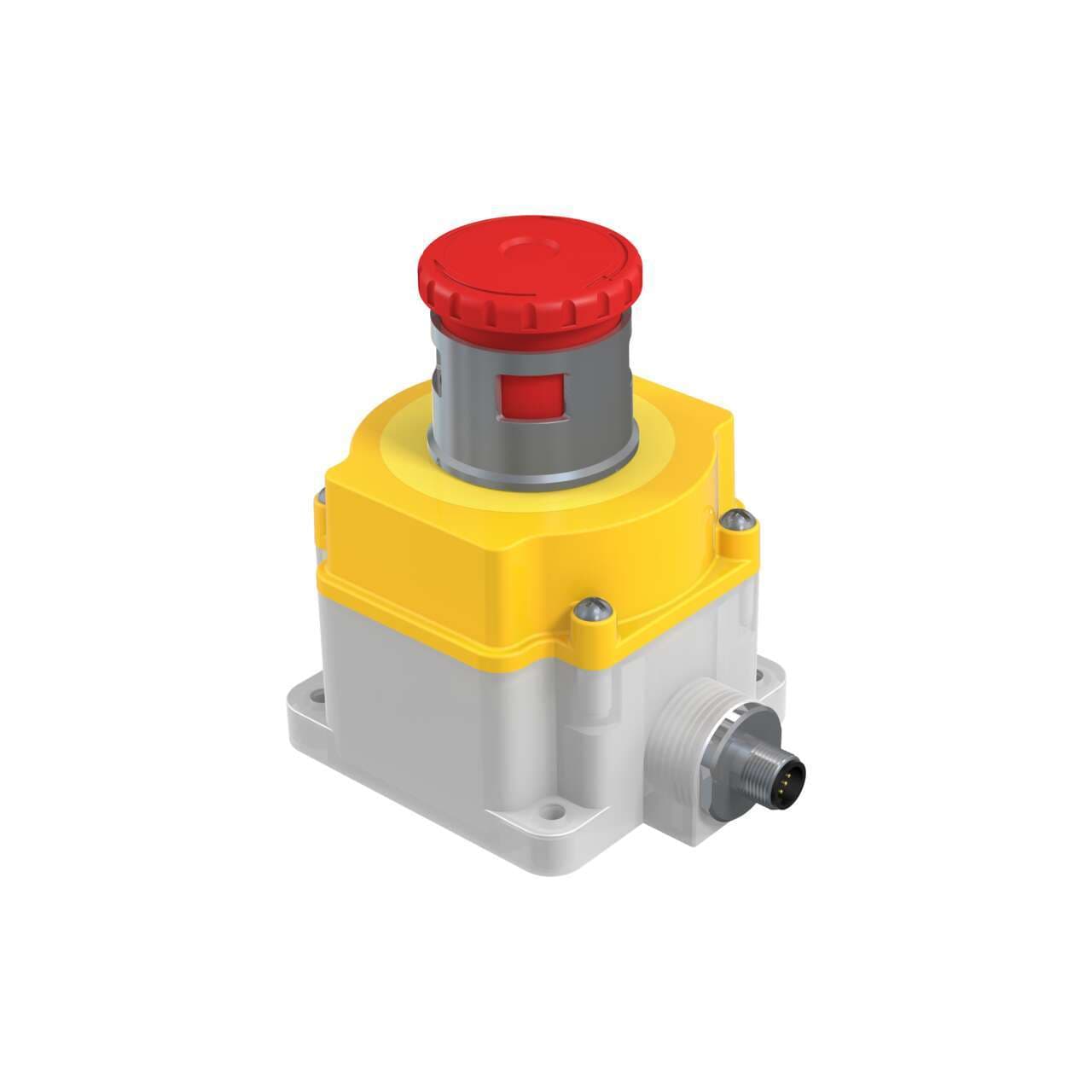

Banner Engineering SSA-EB1MLXRP-12ED1Q8 is an enclosed illuminated emergency STOP push-button featuring a flashing red illuminated base when activated and a padlockable design for enhanced security. It is constructed with a polycarbonate housing and has a 44mm mushroom head for easy operation. This push-button is pre-equipped with an 8-pin M12 Euro-style quick disconnect (QD) connector for straightforward installation. The housing is yellow, and the actuator is red, providing clear visual cues for emergency activation. It includes 1NO+2NC contacts for versatile wiring options and operates on a 24Vdc supply voltage. The mounting is facilitated by a square base with 4 screws, ensuring a secure installation. It is designed to operate within an ambient air temperature range of -25°C to +60°C and offers an IP65 degree of protection against dust and water ingress. The operating mode is push-to-stop and stay-put (maintained/latched) with a twist-to-release mechanism. Additionally, it features 1 Normally Open (NO) auxiliary contact and 2 Normally Closed (NC) auxiliary contacts for comprehensive control options.
SSA-EB1MLXRP-12ED1Q8 Related Documents
Manufacturer warranty
SSA-EB1MLXRP-12ED1Q8 Banner
$300.00
Your price can be lower.
Log in or Create account to check your discount
Select Qty:
$300.00
$300.00 each
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare SSA-EB1MLXRP-12ED1Q8 with other Emergency Stop Push Buttons products
Weight
Country Of Origin
Feature: Quick Disconnect
Button Diameter (mm)
Feature: Lockable
Min Operating Temperature...
Actuated Color
Connection Type
Max Operating Temperature...
Actuator/Button Material
Selected product
SSA-EB1MLXRP-12ED1Q8
Banner
Emergency Stop: Flush Mount 44 mm Lockable Push Button; Environ. Rating: IP65; Lighted; Color: Red S...
Weight458.12792 g
Country Of OriginJP
Feature: Quick DisconnectYes
Button Diameter (mm)44
Feature: LockableYes
Min Operating Temperature ( °C)-25
Actuated ColorRed - Flash
Connection TypeM12 (Euro)
Max Operating Temperature ( °C)55
Actuator/Button MaterialThermoplastic
Weight-
Country Of OriginChina
Feature: Quick Disconnect-
Button Diameter (mm)-
Feature: Lockable-
Min Operating Temperature ( °C)-
Actuated Color-
Connection Type-
Max Operating Temperature ( °C)-
Actuator/Button Material-
About the manufacturer
Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
Recently viewed products
Relevant products
FAQ
What is the price of SSA-EB1MLXRP-12ED1Q8?
Purchase the SSA-EB1MLXRP-12ED1Q8 from Powermatic Associates at the price of $300.00. Order today.
Out if stock but available for backorder.
Emergency Stop: Flush Mount 44 mm Lockable Push Button; Environ. Rating: IP65; Lighted; Color: Red Solid/Flashing; 2 N.C. Safety Contacts; 1 N.O. aux. Contacts; 8-pin M12 QD
