SSA-EB1MLP-12ED1Q8 Banner Emergency Stop Push Buttons

SSA-EB1MLP-12ED1Q8 on Powermatic Associates
Banner
  • SSA-EB1MLP-12ED1Q8
  • SSA-EB1MLP-12ED1Q8

Part#:SSA-EB1MLP-12ED1Q8

Alt. Part#:29996

Manufacturer:Banner

Category:Emergency Stop Push Buttons

Product Lifecycle:Active

Product description

Emergency Stop: Flush Mounting 44 mm Lockable Push Button; Environ. Rating: IP65; Lighted; Color: Red Solid; 2 N.C. Safety Contacts; 1 N.O. aux. Contacts; 8-pin M12 QD

Product Details

  • Weight
    430.9124 g
  • Country Of Origin
    JP
  • Max Operating Temperature ( °C)
    55
  • Button Diameter (mm)
    44
  • Actuator/Button Material
    Thermoplastic
  • Stop Signal Color ( Solid)
    Red
  • Min Operating Temperature ( °C)
    -25
  • Dimensions (HxWxD mm )
    113 x 110 x 81
  • Contact Rating
    2 A @ 24 V dc
  • Mounting Thread/Style
    Flat
  • Contact Quantity
    2 NC, 1 NO
  • Feature: Lockable
    Yes
  • Feature: Illuminated
    Yes
  • In-Series Diagnostics
    No
  • Actuation
    Twist-to-Release
  • Illumination Type
    Base
  • Device Type
    Push Button
  • Primary Housing Material
    Polycarbonate
  • Button Shroud
    No
  • Actuated Color
    Red
  • IP Rating
    IP65
  • Housing Style
    Base
  • Connection Type
    M12 (Euro)
  • Armed Color (Solid)
    OFF

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SSA-EB1MLP-12ED1Q8 on Powermatic Associates is $300.00. Order now.

About the product

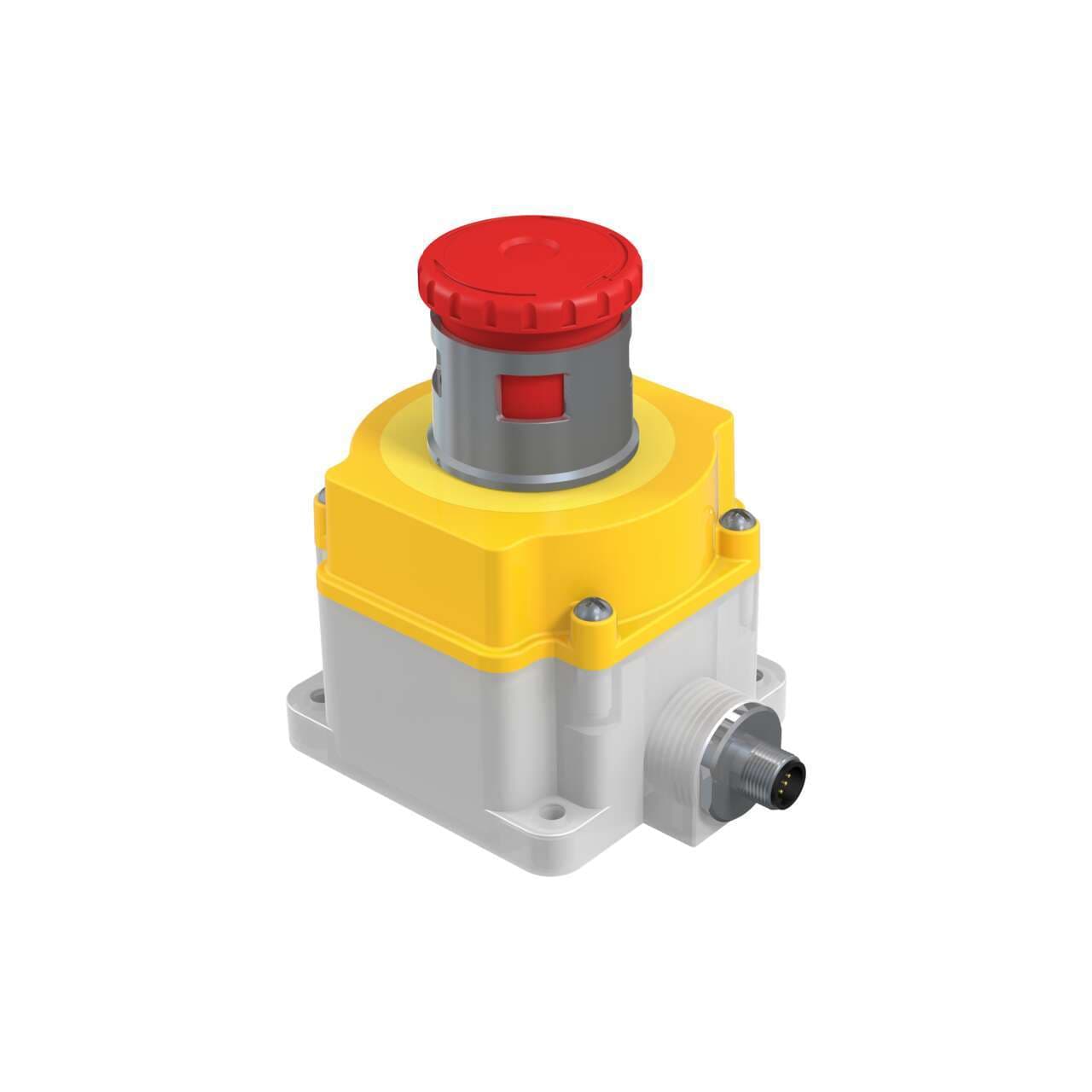

Banner Engineering SSA-EB1MLP-12ED1Q8 is an enclosed illuminated emergency STOP push-button featuring a solid red mushroom head with LED illumination for visibility, designed for push-to-stop and twist-to-release operation. This E-Stop push-button is housed in a yellow polycarbonate casing with a red actuator, ensuring durability and visibility. It comes pre-equipped with an 8-pin M12 Euro-style quick disconnect (QD) connector for easy installation. The device has a 44mm diameter mushroom head, operates with a supply voltage of 24Vdc, and is designed for mounting via a square base with 4 screws. It offers 1 Normally Open (NO) and 2 Normally Closed (NC) contacts for connectivity, ensuring compatibility with various control systems. The SSA-EB1MLP-12ED1Q8 operates effectively in ambient air temperatures ranging from -25°C to +60°C and is rated at an IP65 degree of protection, making it suitable for use in diverse environments.
