SSA-EB1MLGRP-12ED1Q8 Banner Emergency Stop Push Buttons

Name: SSA-EB1MLGRP-12ED1Q8
Brand: Banner

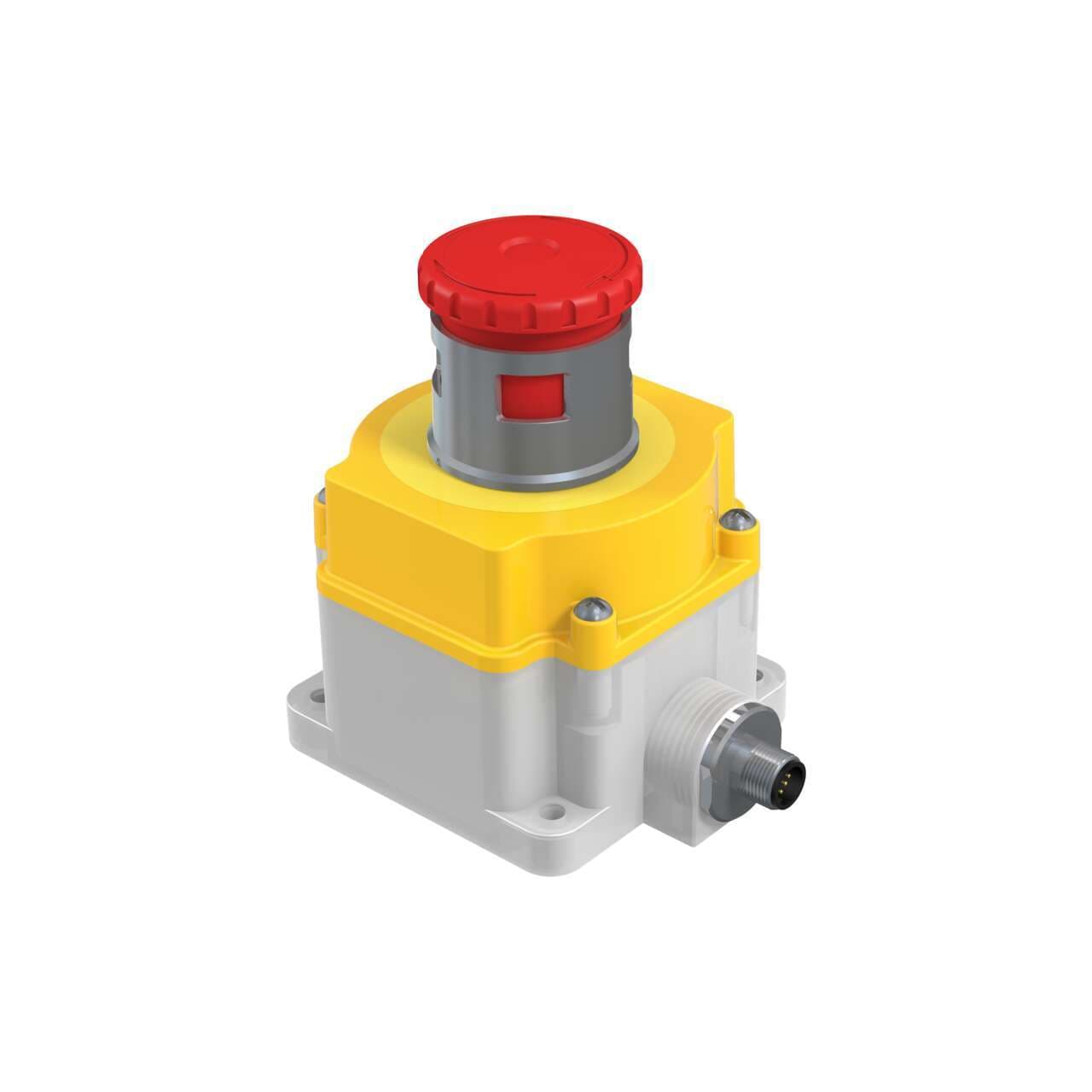

Banner SSA-EB1MLGRP-12ED1Q8 Emergency Stop: Flush Mounting 44 mm Lockable Push Button; Environ. Rating: IP65; Lighted; Color: Green, Red Solid/Flashing; 2 N.C. Safety Contacts; 1 N.O. aux. Contacts; 8-pin M12 QD

Part#:SSA-EB1MLGRP-12ED1Q8

Manufacturer:Banner

Alt. Part#:30001

Product Lifecycle:Active

Get a quick Quote!

Emergency Stop: Flush Mounting 44 mm Lockable Push Button; Environ. Rating: IP65; Lighted; Color: Green, Red Solid/Flashing; 2 N.C. Safety Contacts; 1 N.O. aux. Contacts; 8-pin M12 QD

About the manufacturer: Banner is one of the manufacturers that offers Emergency Stop Push Buttons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SSA-EB1MLGRP-12ED1Q8 Banner price in the box on the right side or send a quick quote.

Product Details

Weight
430.9124 g
Country Of Origin
JP
Max Operating Temperature ( °C)
55
Button Diameter (mm)
44
Stop Signal Color ( Solid)
Red
Actuator/Button Material
Thermoplastic
Min Operating Temperature ( °C)
-25
Dimensions (HxWxD mm )
113 x 110 x 81
Contact Rating
2 A @ 30 V dc
Feature: Lockable
Yes
Contact Quantity
2 NC, 1 NO
Mounting Thread/Style
Flat
Feature: Illuminated
Yes
Actuation
Twist-to-Release
Housing Style
Base
In-Series Diagnostics
No
Connection Type
M12 (Euro)
Actuated Color
Red - Flash
Illumination Type
Base
Armed Color (Solid)
Green

Button Shroud

Device Type

Push Button

Primary Housing Material

Polycarbonate

IP Rating

IP65

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SSA-EB1MLGRP-12ED1Q8 Description

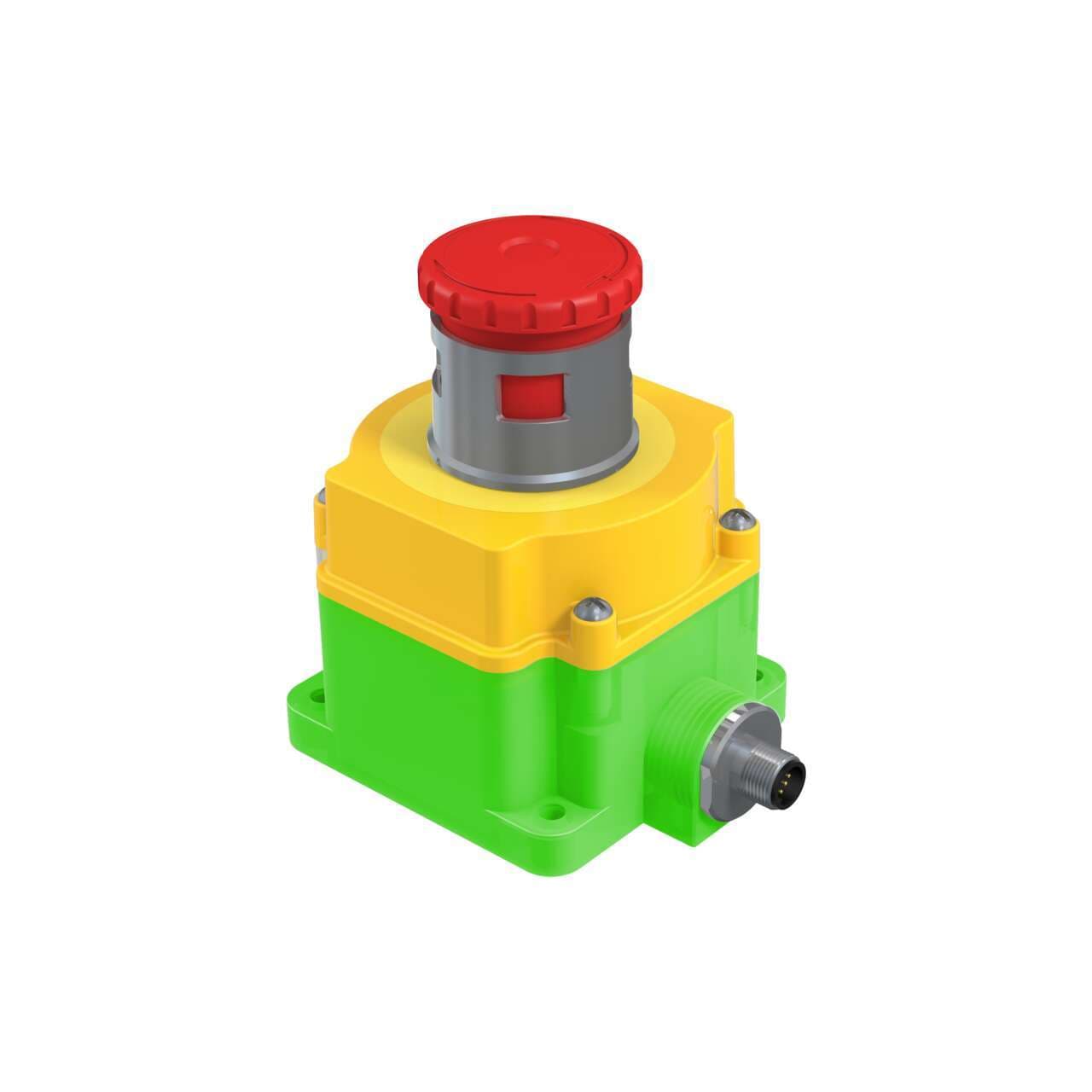

Banner Engineering SSA-EB1MLGRP-12ED1Q8 is an enclosed illuminated emergency STOP push-button featuring a solid green (ARMED) / flashing red (button pushed ON) illuminated base that is padlockable for enhanced security. This push-button is designed with a polycarbonate housing and a 44mm mushroom head for easy activation. It comes pre-equipped with an 8-pin M12 Euro-style QD connector for straightforward installation. The housing is yellow, and the actuator is red, providing clear visibility. It includes 1NO+2NC contacts for connectivity, operates on a 24Vdc supply voltage, and can be mounted using a square base with 4 screws. The SSA-EB1MLGRP-12ED1Q8 is designed to operate in ambient air temperatures ranging from -25°C to +60°C and offers a degree of protection of IP65. Its operating mode is push-to-stop stay-put (maintained / latched) with a twist-to-release mechanism. Additionally, it features 1 Normally Open (NO) auxiliary contact and 2 Normally Closed (NC) auxiliary contacts.
