SSA-EB1ML1P-04 Banner Emergency Stop Push Buttons

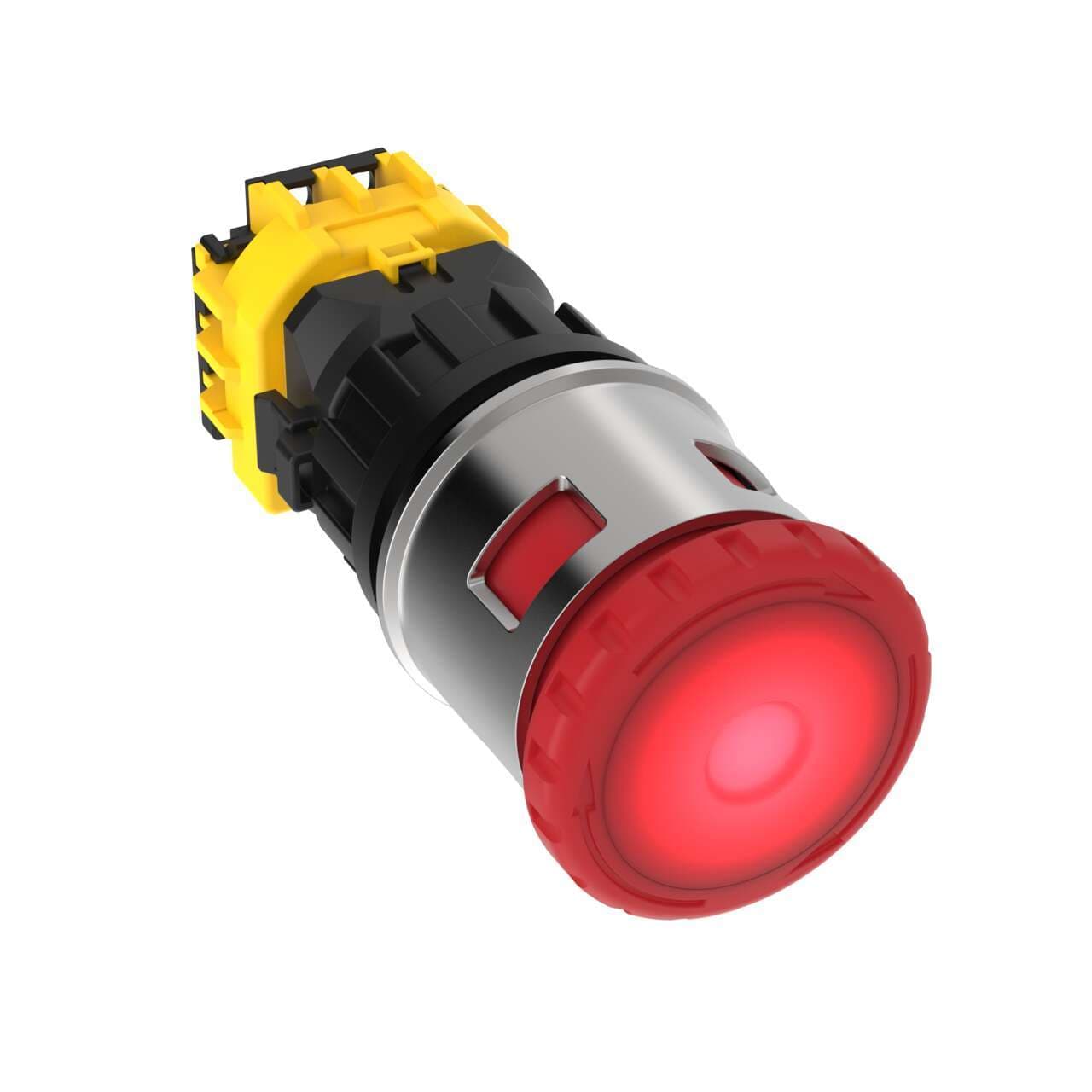

Banner SSA-EB1ML1P-04 SSA-EB1 Panel-mount Emergency Stop Push Button; Lockable Illuminated 44 mm Actuator; Contacts: 4NC; Screw Terminals; 30 mm mounting hole
Banner

Part#:SSA-EB1ML1P-04

Manufacturer:Banner

Alt. Part#:42220

Product Lifecycle:Active

Get a quick Quote!

SSA-EB1 Panel-mount Emergency Stop Push Button; Lockable Illuminated 44 mm Actuator; Contacts: 4NC; Screw Terminals; 30 mm mounting hole

About the manufacturer: Banner is one of the manufacturers that offers Emergency Stop Push Buttons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SSA-EB1ML1P-04 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    45.3592 g
  • Country Of Origin
    JP
  • Feature: Quick Disconnect
    No
  • Max Operating Temperature ( °C)
    55
  • Actuator/Button Material
    Thermoplastic
  • Button Diameter (mm)
    44
  • Feature: Lockable
    Yes
  • Actuation
    Twist-to-Release
  • Feature: Illuminated
    Yes
  • Min Operating Temperature ( °C)
    -25
  • Dimensions (HxWxD mm )
    105 x 37 x 44
  • Contact Rating
    2 A @ 24 V dc
  • Mounting Thread/Style
    Panel
  • Contact Quantity
    4 NC
  • Device Type
    Push Button
  • Primary Housing Material
    Polycarbonate
  • Housing Style
    Base
  • Illumination Type
    Button
  • IP Rating
    IP65
  • Button Shroud
    No
  • Actuated Color
    Red or OFF
  • Connection Type
    Screw Terminal
  • Armed Color (Solid)
    OFF or Red

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SSA-EB1ML1P-04 Description

Banner Engineering SSA-EB1ML1P-04 is a stand-alone illuminated emergency STOP (E-Stop) pushbutton designed with a padlockable feature for enhanced security. It features a polycarbonate (PC) base and a red actuator with a 44mm mushroom head for easy visibility and operation. The connection is facilitated through a screw-clamp terminal connection. This pushbutton operates with 4NC contacts at a supply voltage of 24Vdc. It is designed for flush mounting in a 30mm hole and can operate in ambient air temperatures ranging from -25°C to +55°C. The SSA-EB1ML1P-04 offers a degree of protection of IP65 and functions with a push-to-stop stay-put (maintained/latched) and twist-to-release operating mode. It does not have Normally Open (NO) auxiliary contacts but includes 4 Normally Closed (NC) auxiliary contacts.

Related documents SSA-EB1ML1P-04 Specs

SSA-EB1ML1P-04 194992.pdf
