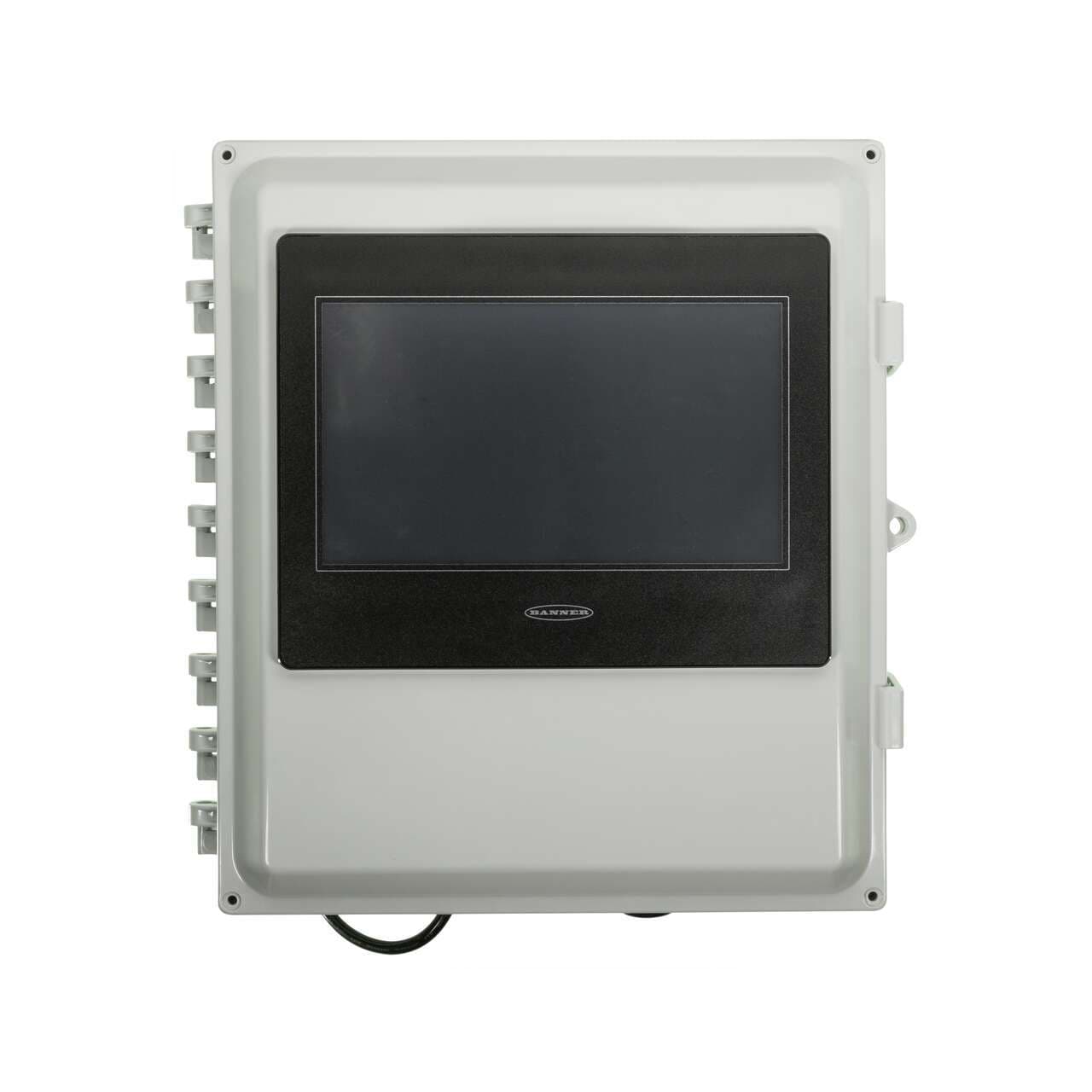

SOLUTIONSKIT2-VIBE-Q Banner Sensor Accessories
Part#:SOLUTIONSKIT2-VIBE-Q
Alt. Part#:805654
Manufacturer:Banner
Category:Sensor Accessories
Product Lifecycle:Active
Product description
Wireless Vibration Solutions Kit 2.4 GHz; 14 in x 12 in Polycarbonate Enclosure; DXM700 (Pre-programmed for Vibration & Temp Monitoring); 10 in Pre-programmed Color Touchscreen HMI; 24 V dc; Includes one DX80N2Q45 VTP Node and one QM30 VT1 Sensor
Product Details
- Weight 6667.8024 g
- Country Of Origin US
- Relative Humidity 90% at 50° C
- Battery Type/Size Lithium/CR2032 and AA
- Point-to-Point Topology Yes
- Point-to-Multipoint Topology Yes
- Max Op. Temperature (°C) 50
- Tree Topology No
- Outside Housing Dimensions (cm) 39.13 x 34.05 x 18.29
- Star Topology Yes
- Wireless Radio Frequency 2.4 GHz
- RS-485 Yes
- Display Size (cm) 25.65
- Resolution (pixels) 1024 x 600
- RS-232 No
- Screen Type Standard Touch Control Panel
- Wireless Yes
- Voltage 24 V dc
- Inside Housing Dimensions (cm) 35.56 x 30.48 x 15.24
- Modbus/TCP Yes
- Application: Temperature Input Yes
- Feature: Hazardous Area No
- Primary Housing Material Polycarbonate
- Power DC
- Ships With Battery Yes
- Modbus RTU Yes
- EtherNet/IP Yes
- Application: Vibration Sensor Input Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SOLUTIONSKIT2-VIBE-Q on Powermatic Associates is $3,660.00. Order now.
About the product
Banner Engineering SOLUTIONSKIT2-VIBE-Q is a Remote Terminal Unit (RTU) within the Wireless solution kits sub-range, designed specifically as a wireless vibration solution kit. This unit is housed in a polycarbonate enclosure with dimensions of H205.5mm x W428.6mm x D244.5mm. It operates on a 24Vdc supply voltage and features a rectangular shape. For communication, it supports RS-485 Modbus RTU, Modbus TCP, and Ethernet/IP protocols. The device operates on a 2.4GHz ISM band with a 65mW power output and a transmission frequency of 2400 MHz.
