SLPR25-830P8 Banner Safety Light Curtains
Part#:SLPR25-830P8
Manufacturer:Banner
Alt. Part#:83580
Product Lifecycle:Active
Get a quick Quote!
SLPR25-830P8 EZ-SCREEN Low Profile Receiver; Resolution: 25 mm; Response (Tr): 14 ms; Beams: 42; Range: 0.1-7 m (4 in - 23 ft); Height: 830 mm (32.7 in); 300 mm (1 ft) 8-pin M12 Pigtail QD
About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SLPR25-830P8 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 2653.5132 g
- Country Of Origin US
- Test Input No
- Trip/Latch Output Selectable
- Scan Code Selectable
- Feature: Integral Muting No
- Feature: ESD Safe No
- Feature: End-to-End Sensing Yes
- Supply Current 150 mA max.
- OSSD Rating 24 V dc at 0.5 A each
- Housing Material Aluminum; Zinc; Acrylic
- Fault Output Yes
- Auxiliary Output Yes
- Vibration 10-55 Hz at 0.35 mm
- System Type Receiver
- Shock 10g at 16ms (6000 cycles)
- Short Protection Yes
- Electrical Safety Class III
- SIL Rating SIL3; CL3
- Reduced Resolution Yes
- Response Time 14
- Resolution (mm) 25
- Recovery Time 33-220 / 109-800
- PL Rating Ple
- Operating Temperature 0 to +55 deg. C; RH 95%
- Operating Voltage 24 V dc +/- 15%
- Fixed Blanking Yes
- Number of Pins (Receiver/Emitter) 8
- Operating Distance (m) 0.1 - 7
- Housing Finish Yellow Polyester
- IP Rating IP65
- External Monitoring Device 1 or 2 Channel
- Overall Length (mm) 830
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Dimensions WxD (mm) 28 x 26
- Defined Area Height (mm) 830
- Primary Housing Material Aluminum
- Connector Type M12 Pigtail (Yellow)
- Safety Level Type 4
- low-profile Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
SLPR25-830P8 Description

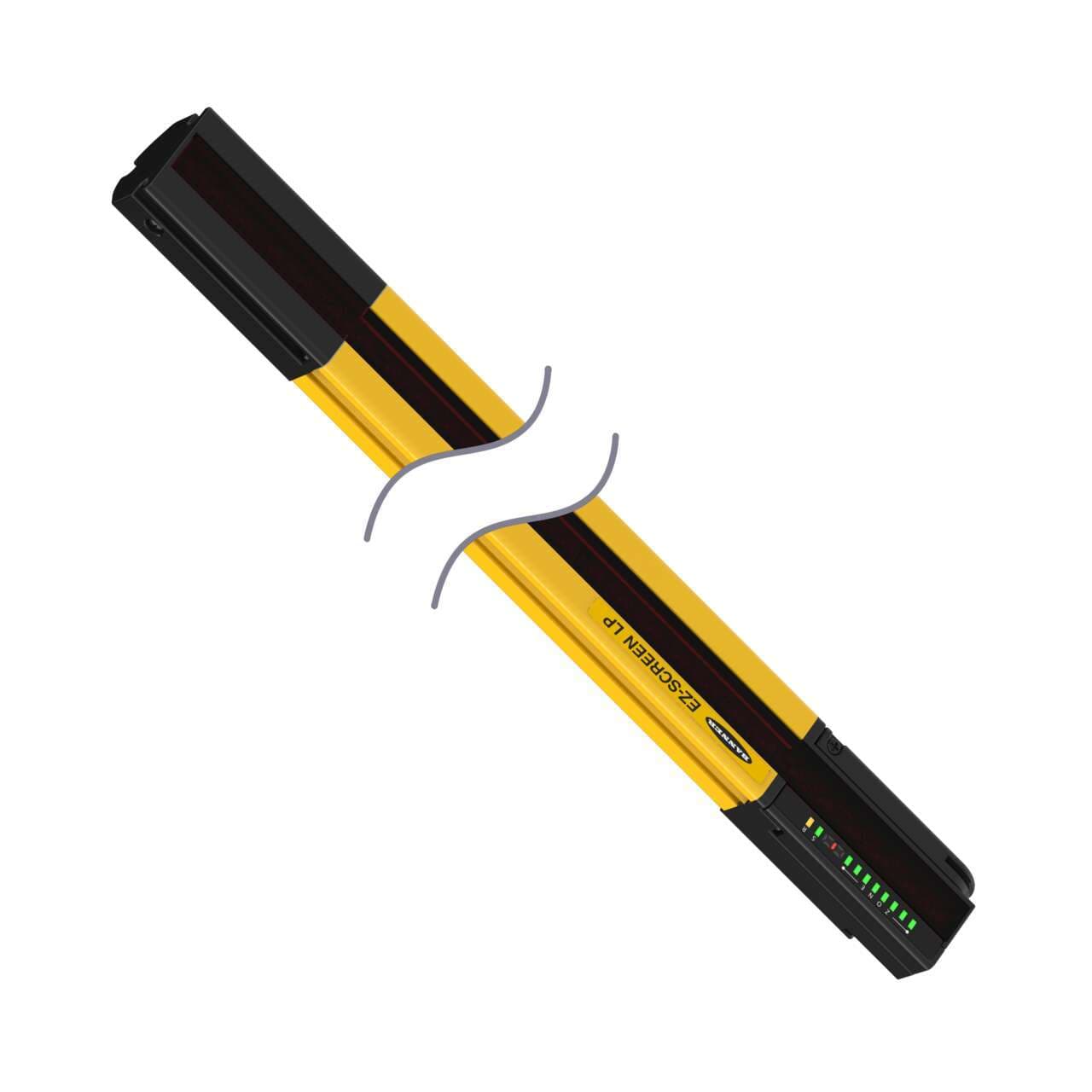

Banner Engineering SLPR25-830P8 is a safety light curtain from the LP Low-Profile series designed for hand detection with a resolution of 25mm. This part, functioning as a receiver alone, is encased in an aluminium housing with an acrylic lens and zinc end caps, ensuring durability. It features a pre-wired 300mm pigtail terminated with an 8-pin Euro-style M12 connector for easy connection. The SLPR25-830P8 offers a protective height of 830mm and comes in a yellow housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. With an IP65 degree of protection, it is well-suited for various industrial environments. The unit has a net width of 28mm, a height of 829mm, and a depth of 26mm. It is designed with 25mm beam spacing/pitch and offers a sensing distance ranging from 10cm to 7m. The SLPR25-830P8 is equipped with two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), one digital output (24Vdc; 250mA; PNP transistor) for fault indication, one digital input (10Vdc-30Vdc; 30mA) for EDM, and one digital input (10Vdc-30Vdc) for reset functions. Its response time is 14ms / 0.014 s, facilitating prompt detection and response to safety incidents.
