SLPP14-1250 Banner Safety Light Curtains

Name: SLPP14-1250
Brand: Banner

Part#:SLPP14-1250

Manufacturer:Banner

Alt. Part#:83777

Product Lifecycle:Active

Get a quick Quote!

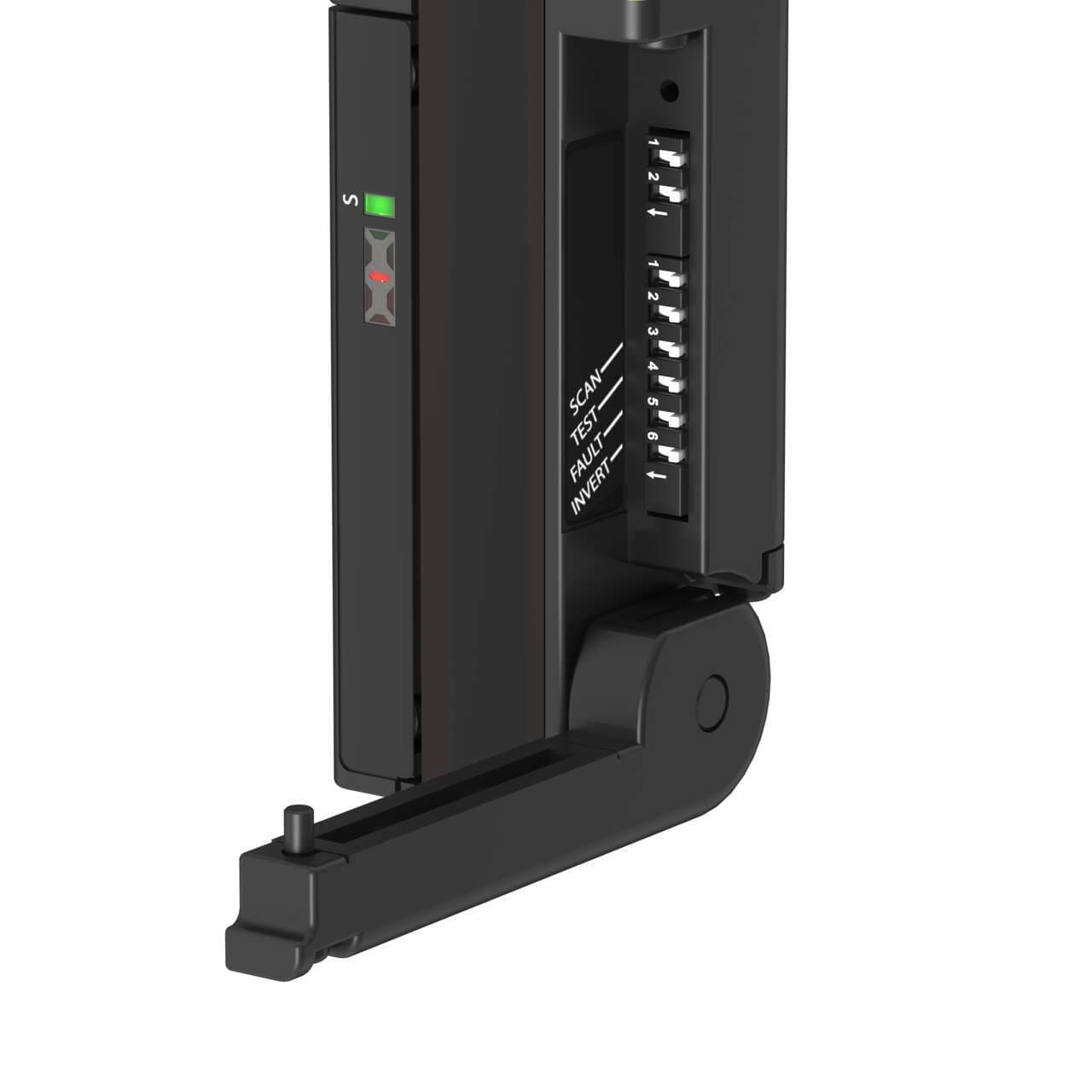

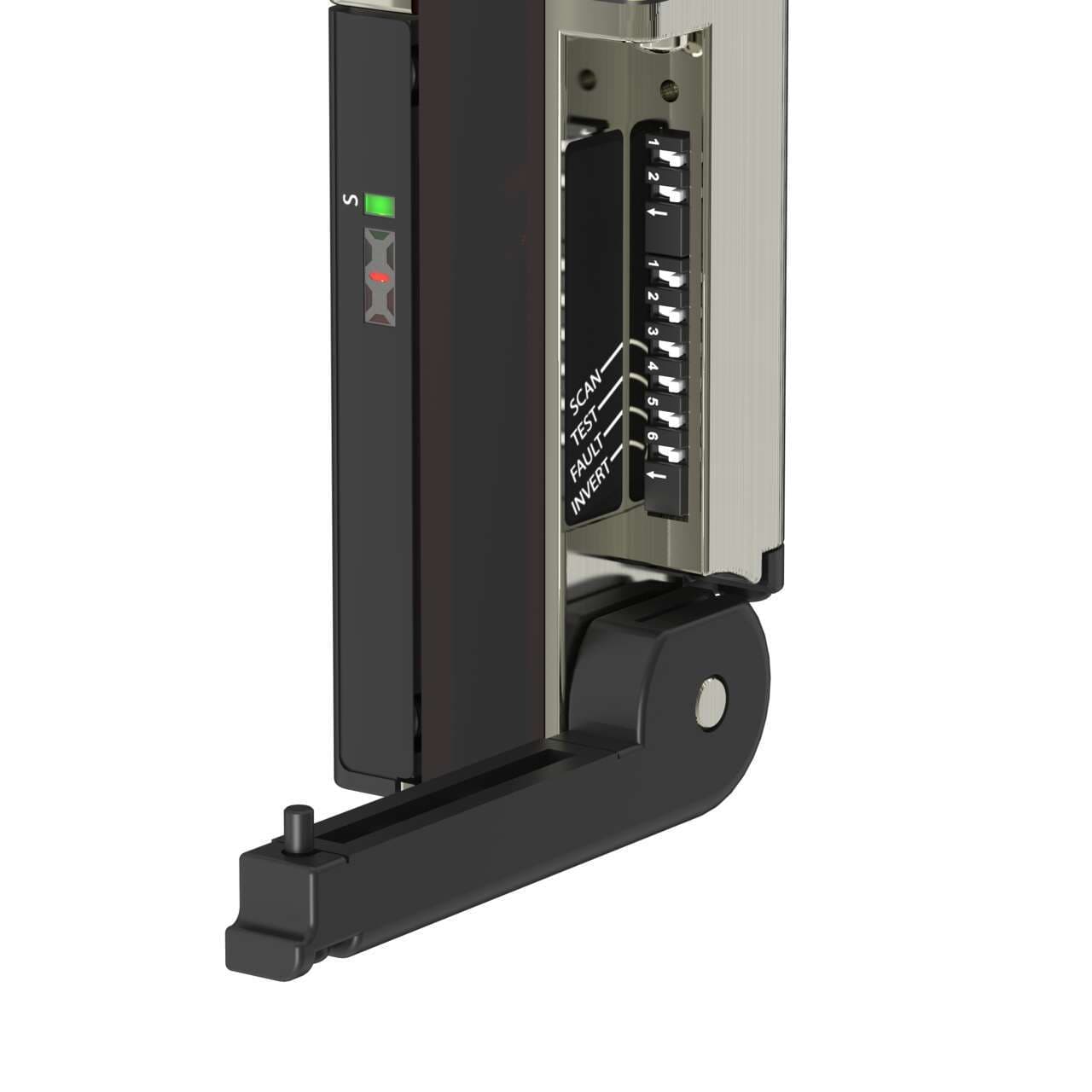

SLPP14-1250 EZ-SCREEN Low Profile Pair; Resolution: 14 mm; Response (Tr): 31.5 ms; Beams: 125; Range: 0.1-7 m (4 in - 23 ft); Height: 1250 mm (49.2 in); Integral RD

About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SLPP14-1250 Banner price in the box on the right side or send a quick quote.

Product Details

Weight
3719.4544 g
Country Of Origin
US
Test Input
Yes
Trip/Latch Output
Selectable
Feature: Integral Muting
No
Supply Current
210 mA max.
Feature: ESD Safe
No
Feature: End-to-End Sensing
Yes
Fault Output
Yes
OSSD Rating
24 V dc at 0.5 A each
Housing Material
Aluminum; Zinc; Acrylic
Vibration
10-55 Hz at 0.35 mm
System Type
Emitter/Receiver Pair
Short Protection
Yes
Auxiliary Output
Yes
SIL Rating
SIL3; CL3
Scan Code
Selectable
Reduced Resolution
Yes
Resolution (mm)
14
Shock
10g at 16ms (6000 cycles)

Electrical Safety Class

III

Response Time

31.5

Recovery Time

33-220 / 109-800

PL Rating

Ple

Fixed Blanking

Yes

Operating Temperature

0 to +55 deg. C; RH 95%

IP Rating

IP65

Housing Finish

Yellow Polyester

Operating Distance (m)

0.1 - 7

Operating Voltage

24 V dc +/- 15%

External Monitoring Device

1 or 2 Channel

Primary Housing Material

Aluminum

Overall Length (mm)

1250

low-profile

Yes

Connector Type

Removable Disconnect

Defined Area Height (mm)

1250

Dimensions WxD (mm)

28 x 26

Effective Aperture Angle

Type 4 Per IEC 61496-2

Safety Level

Type 4

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SLPP14-1250 Description

Banner Engineering SLPP14-1250, part of the LP Low-Profile series, is a safety light curtain designed for finger detection with a resolution of 14mm. This unit, featuring an emitter and receiver pair, is housed in aluminum with acrylic lens and zinc end caps, and comes in a yellow color. It offers a protective height of 1250mm and operates with a supply voltage of 24Vdc. The SLPP14-1250 is designed to work within an ambient air temperature range of 0 to +55°C and is rated with an IP65 degree of protection, ensuring durability in various environmental conditions. It has an integral removable disconnect (RD) connection type, with dimensions of 28mm in width, 1248mm in height, and 26mm in depth. The safety light curtain provides two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and one digital output (24Vdc; 250mA; PNP transistor) for fault indication, alongside one digital input (10Vdc-30Vdc; 30mA) for external device monitoring (EDM) and one digital input (10Vdc-30Vdc) for reset functions. It features a sensing distance range from 10cm to 7m, operates with infrared light at a wavelength of 850 nm, and has a response time of 31.5ms.
