SLPCE25-830P8 Banner Safety Light Curtains

Name: SLPCE25-830P8
Brand: Banner
Price: 1224 USD
Availability: BackOrder

Part#:SLPCE25-830P8

Manufacturer:Banner

Alt. Part#:83613

Product Lifecycle:Active

Get a quick Quote!

SLPCE25-830P8 EZ-SCREEN Low Profile Cascade Emitter; Resolution: 25 mm; Response (Tr): 14 ms; Beams: 42; Range: 0.1-7 m (4 in - 23 ft); Height: 830 mm (32.7 in); 300 mm (1 ft) 8-pin M12 Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SLPCE25-830P8 Banner price in the box on the right side or send a quick quote.

Product Details

Weight
2018.4844 g
Country Of Origin
US
Feature: End-to-End Sensing
Yes
Feature: Integral Muting
No
Supply Current
60 mA max.
Shock
10g at 16ms (6000 cycles)
Feature: ESD Safe
No
Feature: Cascade
Yes
Test Input
Yes
OSSD Rating
N/A
Housing Material
Aluminum; Zinc; Acrylic
Fault Output
Yes
Trip/Latch Output
N/A
Auxiliary Output
No
Vibration
10-55 Hz at 0.35 mm
System Type
Emitter
Short Protection
Yes
SIL Rating
SIL3; CL3
Scan Code
Selectable
Electrical Safety Class
III

Response Time

Reduced Resolution

Resolution (mm)

Recovery Time

25-152 / 81-495

PL Rating

Ple

Operating Temperature

0 to +55 deg. C; RH 95%

Operating Voltage

24 V dc +/- 15%

Operating Distance (m)

0.1 - 7

Number of Pins (Receiver/Emitter)

IP Rating

IP65

Housing Finish

Yellow Polyester

Fixed Blanking

Defined Area Height (mm)

830

Dimensions WxD (mm)

28 x 26

Effective Aperture Angle

Type 4 Per IEC 61496-2

External Monitoring Device

Overall Length (mm)

830

Primary Housing Material

Aluminum

Connector Type

M12 Pigtail (Yellow)

Safety Level

Type 4

low-profile

Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SLPCE25-830P8 Description

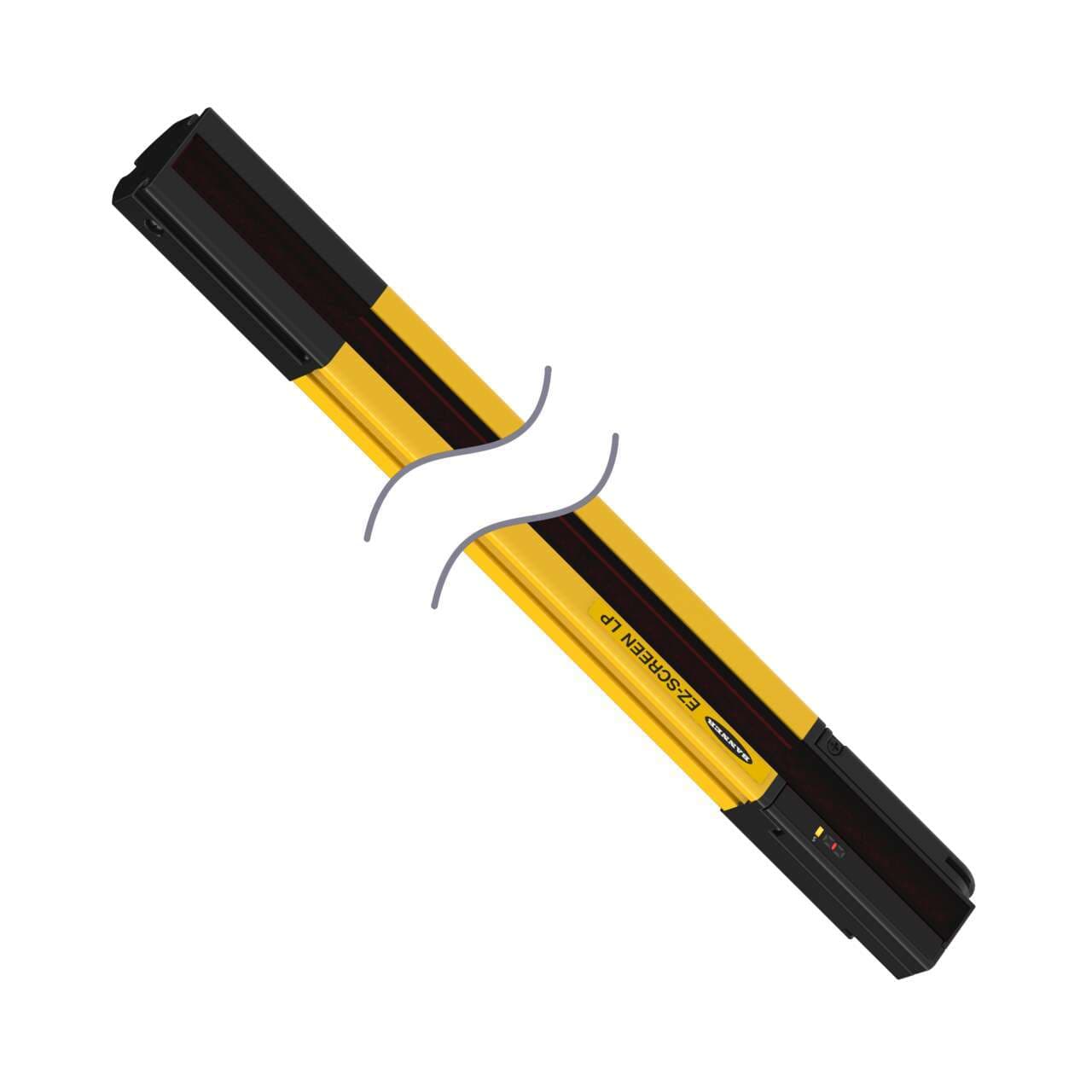

Banner Engineering SLPCE25-830P8 is a safety light curtain from the LP Low-Profile series designed for hand detection with a resolution of 25mm. This cascadable unit features an aluminium housing, acrylic lens, and zinc end caps, ensuring durability. It comes pre-wired with a 300mm pigtail terminated with an 8-pin Euro-style M12 connector for easy installation. The protective height of the device is 830mm, housed in a yellow casing, and operates on a 24Vdc supply voltage. It is designed to function within an ambient air temperature range of 0 to +55°C and offers a degree of protection rated at IP65. The net dimensions are 28mm in width, 829mm in height, and 26mm in depth. The SLPCE25-830P8 provides a sensing distance from 10cm up to 7m and utilizes infrared light with a wavelength of 850nm. It features two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), one digital output (24Vdc; 250mA; PNP transistor) for fault indication, and one digital input (10Vdc-30Vdc) for reset functions. The response time is recorded at 14ms.
