SLLE14-1260-S Banner Safety Light Curtains

Name: SLLE14-1260-S
Brand: Banner

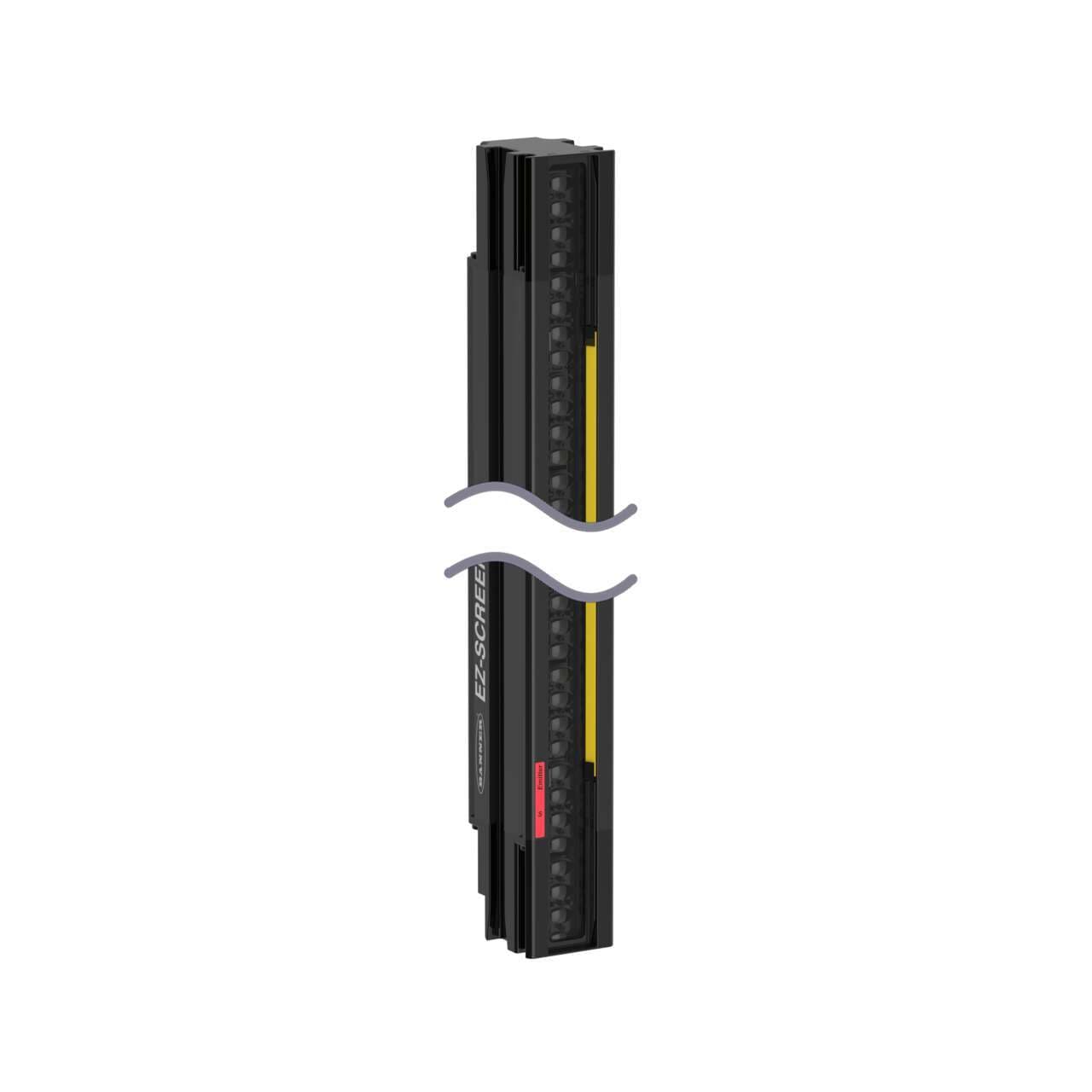

Banner SLLE14-1260-S EZ-SCREEN LS, Emitter; Resolution: 14 mm; Range: 12 m (40 ft); Defined Area: 1260 mm (49.6 in); Housing: Black; Connection: Removable Disconnect (RD); Mounting Hardware and Cable/M12 Pigtail Ordered Separately

Part#:SLLE14-1260-S

Manufacturer:Banner

Alt. Part#:809083

Product Lifecycle:Active

Get a quick Quote!

EZ-SCREEN LS, Emitter; Resolution: 14 mm; Range: 12 m (40 ft); Defined Area: 1260 mm (49.6 in); Housing: Black; Connection: Removable Disconnect (RD); Mounting Hardware and Cable/M12 Pigtail Ordered Separately

About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SLLE14-1260-S Banner price in the box on the right side or send a quick quote.

Product Details

Weight
2805.46652 g
Country Of Origin
MX
Feature: End-to-End Sensing
Yes
OSSD Rating
N/A
Housing Material
Aluminum; Zinc; Acrylic
Feature: Integral Muting
No
Feature: ESD Safe
No
Test Input
No
Trip/Latch Output
N/A
Supply Current
26 mA Typical
Fault Output
Yes
Scan Code
Selectable
Auxiliary Output
No
Electrical Safety Class
III
SIL Rating
SIL3; CL3
Vibration
10-55 Hz at 0.35 mm
System Type
Emitter
Short Protection
Yes
Shock
10g at 16ms (6000 cycles)
Reduced Resolution
No

Operating Voltage

24 V dc +/- 15%

Resolution (mm)

Recovery Time

153 / 518

Operating Temperature

-20 to +55 deg. C; RH 95%

PL Rating

Ple

Operating Distance (m)

0.1 - 12

IP Rating

IP65; IP67

Housing Finish

Yellow Polyester

Effective Aperture Angle

Type 4 Per IEC 61496-2

Dimensions WxD (mm)

36 x 45

External Monitoring Device

Overall Length (mm)

1263

Connector Type

Removable Disconnect

Primary Housing Material

Aluminum

Fixed Blanking

Defined Area Height (mm)

1260

Safety Level

Type 4

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SLLE14-1260-S Description

Banner Engineering SLLE14-1260-S is a safety light curtain from the LS-S series type 4 safety light curtains designed for finger detection with a resolution of 14mm. This part, functioning as an emitter alone, is encased in an aluminium housing with an acrylic lens and zinc end caps. It features an Integral Removable Disconnect (RD) connection type and operates on a 24Vdc supply voltage. The protective height of this unit is 1260mm, and it is designed with a yellow housing. It can operate within an ambient air temperature range of -20 to +55°C and offers a degree of protection rated at IP65 and IP67. The net dimensions are 36mm in width, 1263mm in height, and 45mm in depth. It has a 14mm beam spacing/pitch and includes 1 x digital output (24Vdc; sourcing/PNP transistor; 70mA) for emitter fault indication. The sensing distance ranges from 10cm to 12m, with a response time of 35.4ms / 0.0354 s.
