SI-LS83D Banner Safety Switches

SI-LS83D on Powermatic Associates
Banner

Part#:SI-LS83D

Alt. Part#:49481

Manufacturer:Banner

Category:Safety Switches

Product Lifecycle:Active

Product description

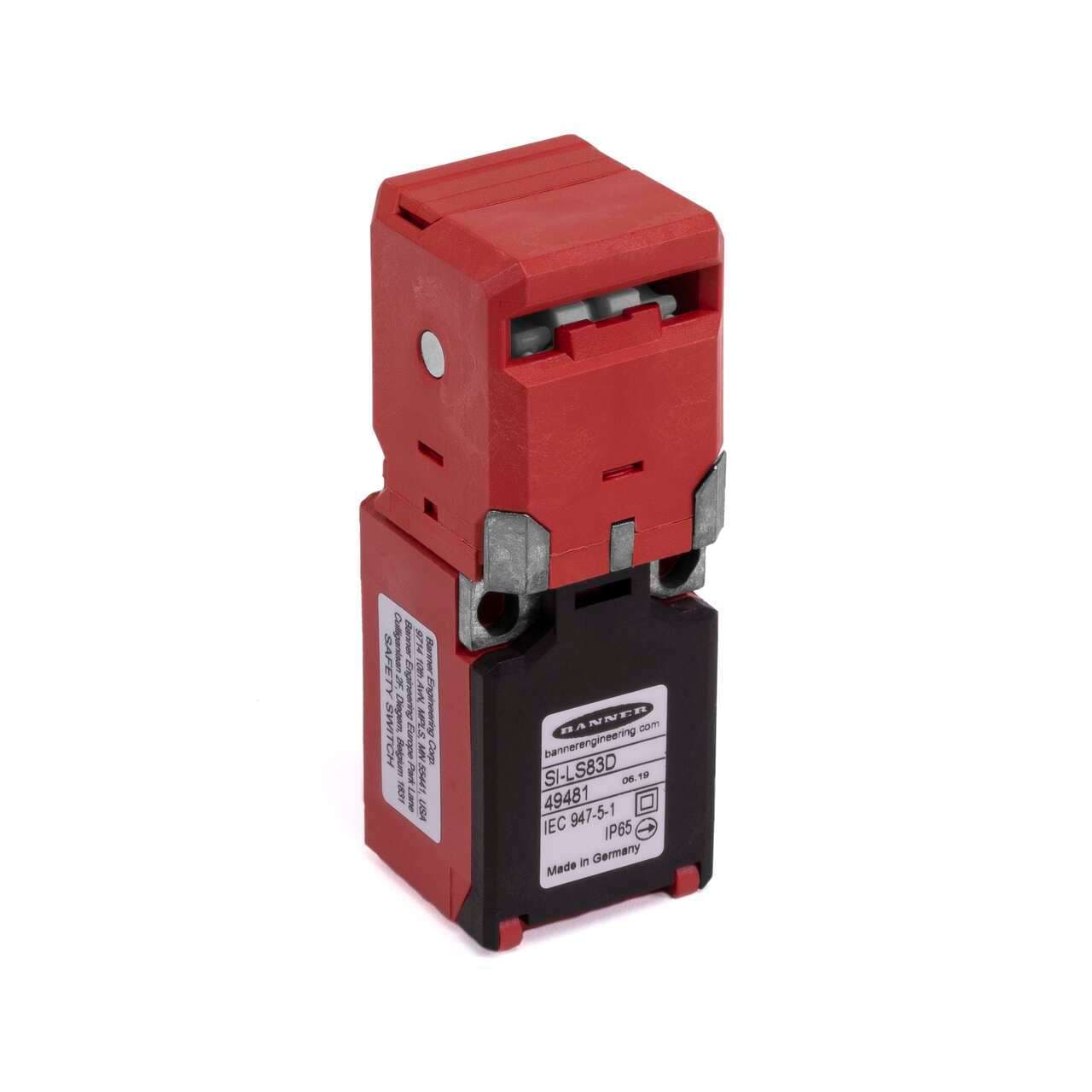

SI-LS83D Limit-Switch Style Machine Safety Switch Interlock Body; One N.C. One N.O.

Product Details

  • Weight
    108.86208 g
  • Country Of Origin
    DE
  • Mechanical Life (operations in millions)
    1
  • Coding Level/Tamper Resistance
    Low
  • Feature: Lockable
    No
  • In-Series Diagnostics
    No
  • Connection Type
    Wiring Chamber
  • SIL Rating
    SIL CL 3
  • Output Type
    Contacts
  • Actuator (Safety) Contacts
    1 NC/1 NO
  • Monitor (Locked) Contacts
    N/A
  • IP Rating
    IP65
  • Auxilliary Output
    No
  • SISTEMA
    B10d = 2 million
  • Safety Category
    Cat 4
  • Min Op. Temperature (°C)
    -30
  • PL Rating
    PL e
  • Device Size
    83 x 30 x 31
  • Device Shape
    Rectangular
  • Device Type
    Mechanical - Sensor
  • Primary Housing Material
    Thermoplastic
  • Switch Style
    Contact
  • Max Op. Temperature (°C)
    80

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SI-LS83D on Powermatic Associates is $54.00. Order now.

About the product

Banner Engineering SI-LS83D is a tongue-operated door switch within the SI-LS83 series, designed for safety machine door, hood, or gate switching applications without actuation. This switch features a thermoplastic housing and utilizes a wiring chamber connection for its electrical interface. It is equipped with 1NO+1NC contacts, supporting a rated current of 10A at 24Vac (AC-15), 6A at 24Vdc (DC-13), 10A at 110Vac (AC-15; 40-60Hz), 1A at 110Vdc (DC-13), 6A at 230Vac (AC-15; 40-60Hz), 6A at 24Vdc, and 0.4A at 230Vdc (DC-13). The SI-LS83D operates within an ambient air temperature range of -30 to +80°C and offers a degree of protection rated at IP65. Its rectangular shape is complemented by 1 NO and 1 NC auxiliary contacts for versatile connectivity options.

SI-LS83D Related Documents

59622.pdf
