SI-LS42DSH Banner Safety Switches

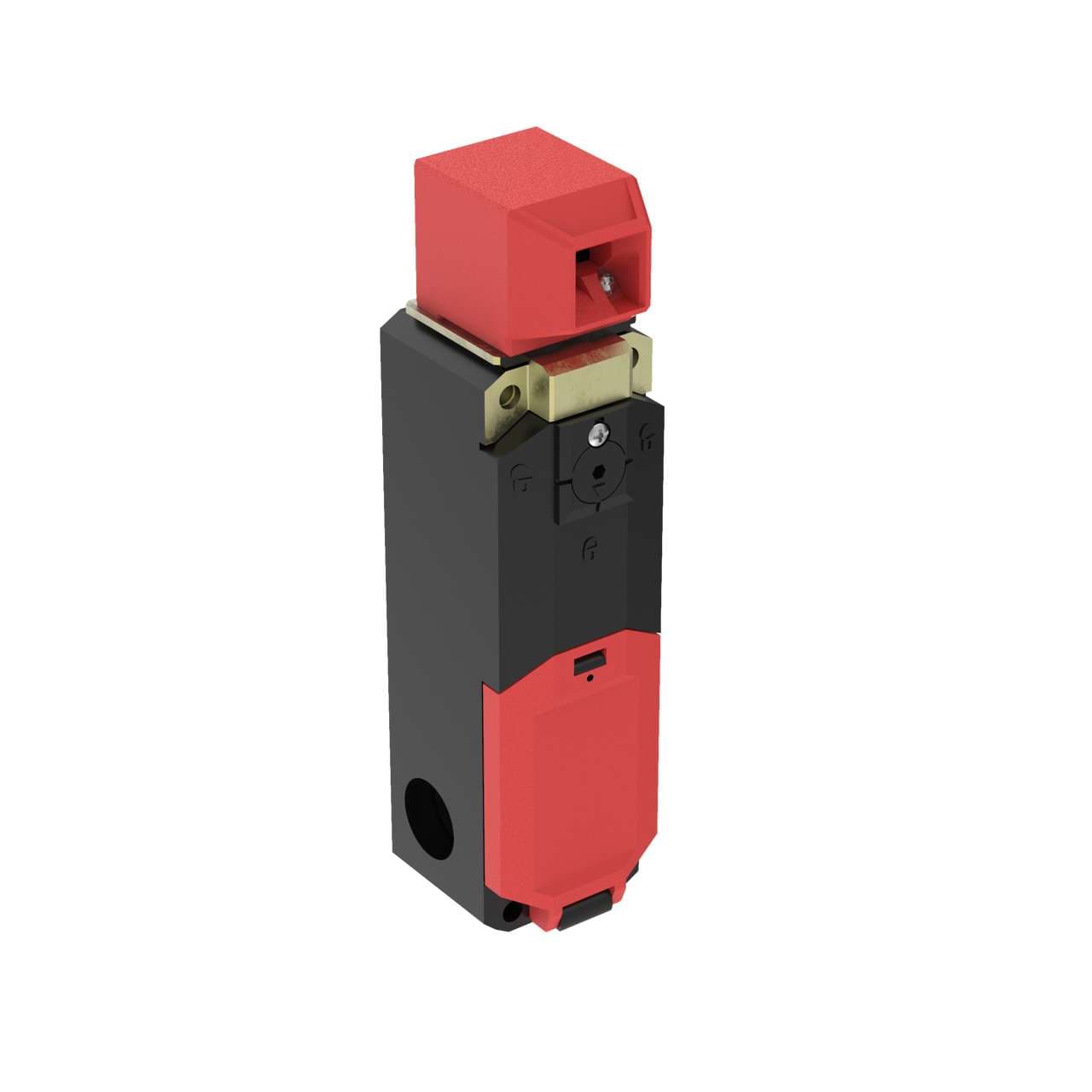

Banner SI-LS42DSH Interlock Body, Spring Locking; Solenoid Voltage: 24 V ac/dc; Contact Configuration: 2 NC; 1 NC/1 NO; Dimensions: 170 x 43 x 45 mm; Plastic Housing
Banner

Part#:SI-LS42DSH

Manufacturer:Banner

Alt. Part#:47875

Product Lifecycle:Active

Get a quick Quote!

Interlock Body, Spring Locking; Solenoid Voltage: 24 V ac/dc; Contact Configuration: 2 NC; 1 NC/1 NO; Dimensions: 170 x 43 x 45 mm; Plastic Housing

About the manufacturer: Banner is one of the manufacturers that offers Safety Switches that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SI-LS42DSH Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    391.903488 g
  • Country Of Origin
    HU
  • In Rush Power Consumption (VA/s)
    12 VA (0.2 s)
  • In-Series Diagnostics
    No
  • Connection Type
    Wiring Chamber
  • SIL Rating
    SIL CL 3
  • Power Consumption (W/VA)
    4.4 VA
  • Coding Level/Tamper Resistance
    Low
  • Extraction Force (N)
    1500
  • Rated Operating Current
    4.4 VA
  • Operating Voltage
    24 V ac/dc
  • Mechanical Life (operations in millions)
    1
  • Auxilliary Output
    No
  • Feature: Lockable
    Yes
  • Actuator (Safety) Contacts
    2 NC
  • Monitor (Locked) Contacts
    1 NC/1 NO
  • Output Type
    Contacts
  • SISTEMA
    B10d = 2 million
  • Safety Category
    Cat 4
  • PL Rating
    PL e
  • IP Rating
    IP67
  • Device Type
    Mechanical - Sensor
  • Device Size
    170 x 43 x 45
  • Min Op. Temperature (°C)
    -25
  • Max Op. Temperature (°C)
    70
  • Device Shape
    Rectangular
  • Primary Housing Material
    Thermoplastic
  • Locking Mechanism
    Power Unlock
  • Switch Style
    Contact

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SI-LS42DSH Description

Banner Engineering SI-LS42DSH is a tongue-operated door lock designed for interlock safety switch applications, featuring a spring-locking mechanism and solenoid-unlocking capability without an actuator. It is constructed with a thermoplastic housing and utilizes a wiring chamber for its connection type. This part includes 2NC (actuated contacts) and 1NO+1NC (solenoid monitor contacts) for its contact configuration. It operates with a control voltage of 24Vdc and 24Vac, and a rated current of 1A at 24Vac (AC-15). The SI-LS42DSH is designed to function within an ambient air temperature range of -25 to +70°C and offers a degree of protection rated at IP67. Its shape is rectangular, and it includes 1 NO (Normally Open) auxiliary contact and 3 NC (Normally Closed) auxiliary contacts.

Related documents SI-LS42DSH Specs

SI-LS42DSH 155400.pdf
