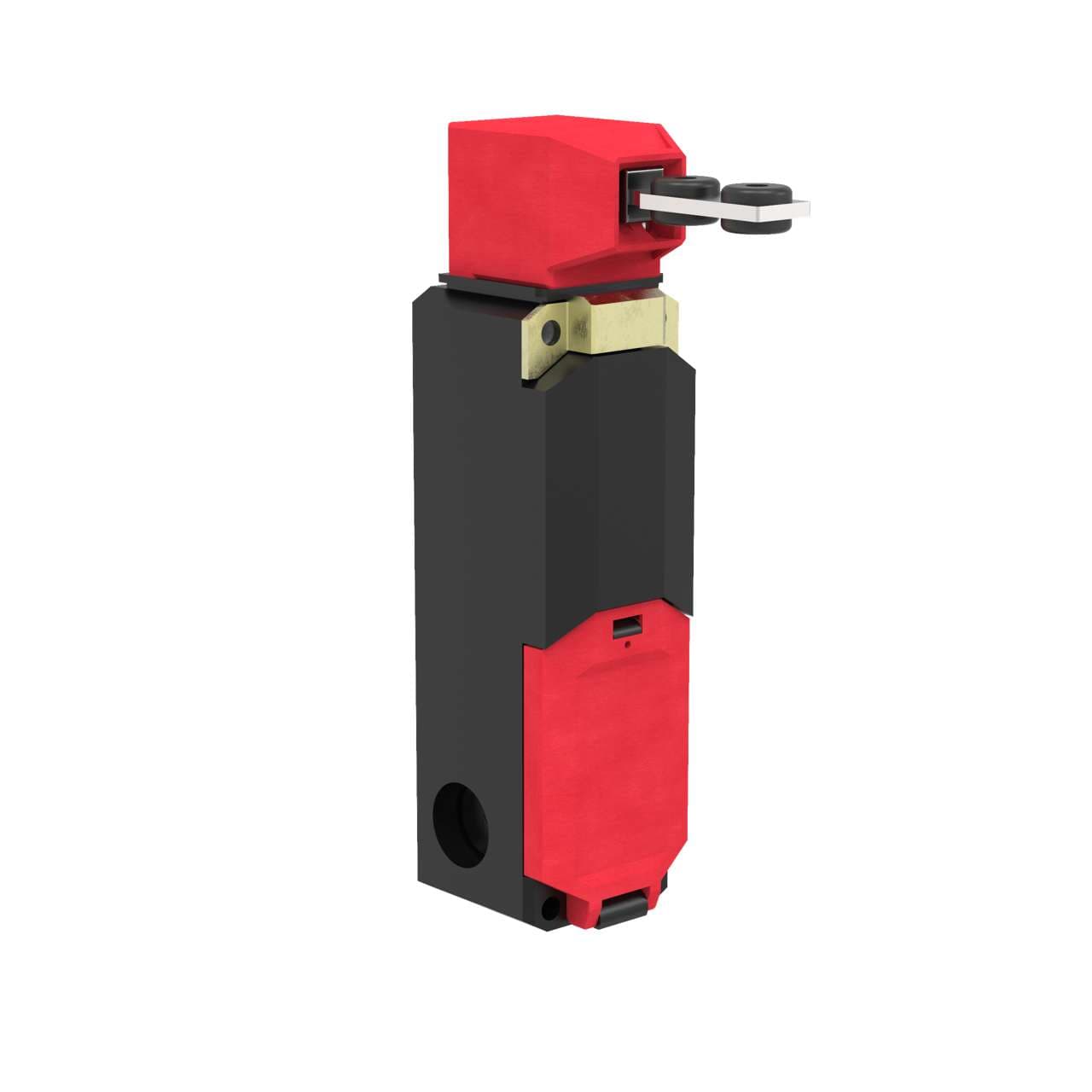

SI-LS42DMMH Banner Safety Switches
Part#:SI-LS42DMMH
Alt. Part#:60090
Manufacturer:Banner
Category:Safety Switches
Product Lifecycle:Active
Product description
Solenoid Locking: Standard In-line; Solenoid Voltage: 24 V ac/dc; Contact Configuration: 2 NC; 1 NC/1 NO; Dimensions: 170 x 43 x 45 mm; Plastic Housing
Product Details
- Weight 399.16096 g
- Country Of Origin DE
- In Rush Power Consumption (VA/s) 12 VA (0.2 s)
- Power Consumption (W/VA) 4.4 VA
- Rated Operating Current 4.4 VA
- Extraction Force (N) 1500
- Minimum Hinged Door Size (mm) 400
- Mechanical Life (operations in millions) 1
- Feature: Washdown Rated Yes
- In-Series Diagnostics No
- Actuator (Safety) Contacts 2 NC
- Safety Category Cat 4
- SIL Rating SIL CL 3
- Max Op. Temperature (°C) 70
- Min Op. Temperature (°C) -25
- Device Shape Rectangular
- Actuation In-Line
- Primary Housing Material Thermoplastic
- Device Type Mechanical - Kit
- Auxilliary Output No
- Feature: Lockable Yes
- Solenoid Voltage 24 V ac/dc
- Connection Type Wiring Chamber
- Output Type Contacts
- Monitor (Locked) Contacts 1 NC/1 NO
- Device Size 170 x 43 x 45
- PL Rating PL e
- IP Rating IP67
- Locking Mechanism Power Lock
- Coding Level/Tamper Resistance Low
- Operating Voltage 24 V ac/dc
- SISTEMA B10d = 2 million
- Switch Style Contact
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SI-LS42DMMH on Powermatic Associates is $361.00. Order now.
About the product
Banner Engineering SI-LS42DMMH is a tongue-operated door lock designed with a rigid in-line actuation mechanism. This solenoid-locking and spring-unlocking interlock safety switch kit features a thermoplastic housing and utilizes a wiring chamber with M20 entry for connections. It is equipped with 2NC (actuated contacts) and 1NO+1NC (solenoid monitor contacts) for comprehensive safety and monitoring. The control voltage is compatible with both 24Vdc and 24Vac systems, and it operates at a rated current of 1A (24Vac; AC-15). Designed to function within an ambient air temperature range of -25 to +70°C, it offers a high degree of protection with an IP67 rating. The rectangular shape measures 43 mm in width, 184 mm in height, and 45 mm in depth. Additionally, it includes 1 Normally Open (NO) auxiliary contact and 3 Normally Closed (NC) auxiliary contacts for versatile application in safety circuits.
