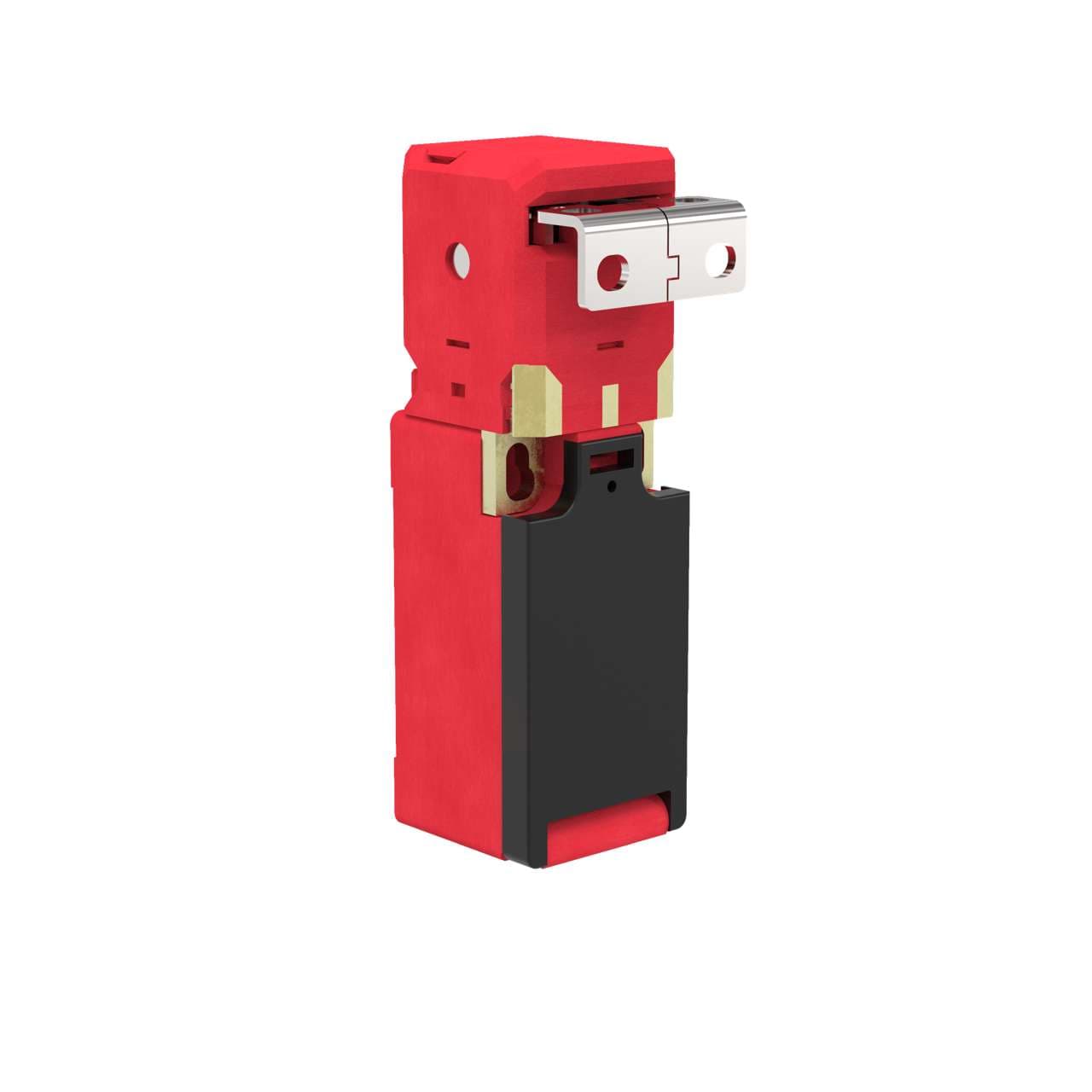

SI-LS100SRAF Banner Safety Switches

SI-LS100SRAF on Powermatic Associates
Banner

Part#:SI-LS100SRAF

Manufacturer:Banner

Alt. Part#:58741

Product Lifecycle:Active

Get a quick Quote!

Limit Switch: Standard In-line Right-Angle; Actuator Position: Top Front Back Left or Right; Contact Configuration: 2 NC/1 NO; Dimensions: 100 x 31 x 31 mm; Plastic Housing

About the manufacturer: Banner is one of the manufacturers that offers Safety Switches that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SI-LS100SRAF Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    145.14944 g
  • Country Of Origin
    DE
  • Mechanical Life (operations in millions)
    1
  • Minimum Hinged Door Size (mm)
    150
  • Auxilliary Output
    No
  • In-Series Diagnostics
    No
  • Coding Level/Tamper Resistance
    Low
  • Feature: Lockable
    No
  • Monitor (Locked) Contacts
    N/A
  • SISTEMA
    B10d = 2 million
  • Output Type
    Contacts
  • Connection Type
    Wiring Chamber
  • PL Rating
    PL e
  • Safety Category
    Cat 4
  • Device Type
    Mechanical - Kit
  • Device Size
    100 x 30 x 31
  • IP Rating
    IP65
  • SIL Rating
    SIL CL 3
  • Max Op. Temperature (°C)
    80
  • Device Shape
    Rectangular
  • Primary Housing Material
    Thermoplastic
  • Switch Style
    Contact
  • Actuation
    In-Line
  • Actuator (Safety) Contacts
    2 NC/1 NO
  • Min Op. Temperature (°C)
    -30

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SI-LS100SRAF Description

Banner Engineering SI-LS100SRAF is a tongue-operated door switch from the SI-LS100 series, designed with a right-angle in-line actuation. This safety machine door/hood/gate switch kit features a thermoplastic housing and a wiring chamber with M20 entry for connections. It is equipped with 1NO+2NC contacts, supporting a rated current of 10A at 24Vac (AC-15), 6A at 24Vdc (DC-13), 10A at 110Vac (AC-15; 40-60Hz), 1A at 110Vdc (DC-13), 6A at 230Vac (AC-15; 40-60Hz), 6A at 24Vdc, and 0.4A at 230Vdc (DC-13). The switch operates within an ambient air temperature range of -30 to +80°C and offers a degree of protection of IP65. Its rectangular shape measures 30 mm in width, 100 mm in height, and 31 mm in depth. Additionally, it includes 1 Normally Open (NO) auxiliary contact and 2 Normally Closed (NC) auxiliary contacts.

Related documents SI-LS100SRAF Specs

SI-LS100SRAF 59622.pdf
