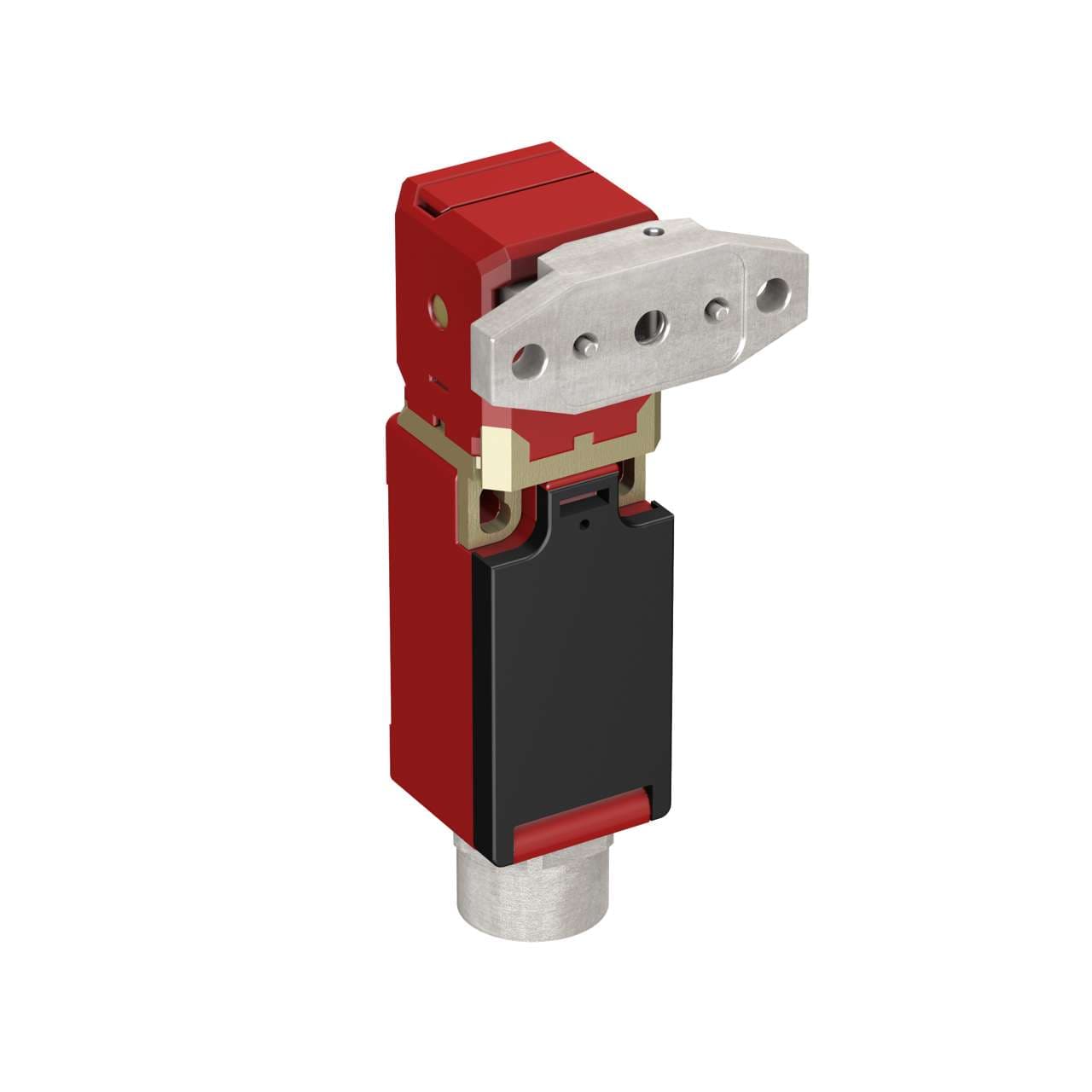

SI-LS100MRHF Banner Safety Switches

Name: SI-LS100MRHF
Brand: Banner
Price: 127 USD
Availability: BackOrder

Banner SI-LS100MRHF Limit Switch: Horizontal Radius; Actuator Position: Top Front Back Left or Right; Contact Configuration: 2 NC/1 NO; Dimensions: 100 x 31 x 31 mm; Plastic Housing

Part#:SI-LS100MRHF

Manufacturer:Banner

Alt. Part#:58742

Product Lifecycle:Active

Get a quick Quote!

Limit Switch: Horizontal Radius; Actuator Position: Top Front Back Left or Right; Contact Configuration: 2 NC/1 NO; Dimensions: 100 x 31 x 31 mm; Plastic Housing

About the manufacturer: Banner is one of the manufacturers that offers Safety Switches that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SI-LS100MRHF Banner price in the box on the right side or send a quick quote.

Product Details

Weight
145.14944 g
Country Of Origin
DE
Mechanical Life (operations in millions)
1
Minimum Hinged Door Size (mm)
50
Coding Level/Tamper Resistance
Low
In-Series Diagnostics
No
Auxilliary Output
No
Connection Type
Wiring Chamber
Feature: Lockable
No
Output Type
Contacts
Monitor (Locked) Contacts
N/A
SISTEMA
B10d = 2 million
Actuator (Safety) Contacts
2 NC/1 NO
SIL Rating
SIL CL 3
Safety Category
Cat 4
PL Rating
PL e
Max Op. Temperature (°C)
80
IP Rating
IP65
Min Op. Temperature (°C)
-30
Device Size
100 x 30 x 31

Device Shape

Rectangular

Actuation

Flexible

Switch Style

Contact

Primary Housing Material

Thermoplastic

Device Type

Mechanical - Kit

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SI-LS100MRHF Description

Banner Engineering SI-LS100MRHF is a tongue-operated door switch from the SI-LS100 series designed for safety machine door, hood, or gate switch applications. It features a thermoplastic housing and a wiring chamber with M20 entry for connections. This switch is equipped with 1NO+2NC contacts, supporting a rated current of 10A at 24Vac (AC-15), 6A at 24Vdc (DC-13), 10A at 110Vac (AC-15; 40-60Hz), 1A at 110Vdc (DC-13), 6A at 230Vac (AC-15; 40-60Hz), 6A at 24Vdc, and 0.4A at 230Vdc (DC-13). It operates within an ambient air temperature range of -30 to +80°C and offers a degree of protection of IP65. The switch has a rectangular shape with dimensions of 30 mm in width, 100 mm in height, and 31 mm in depth. It includes 1 Normally Open (NO) auxiliary contact and 2 Normally Closed (NC) auxiliary contacts.
