Powermatic Associates Logo

SI-LS100MRFF Banner Safety Switches

SI-LS100MRFF on Powermatic Associates
Banner
  • SI-LS100MRFF
  • SI-LS100MRFF

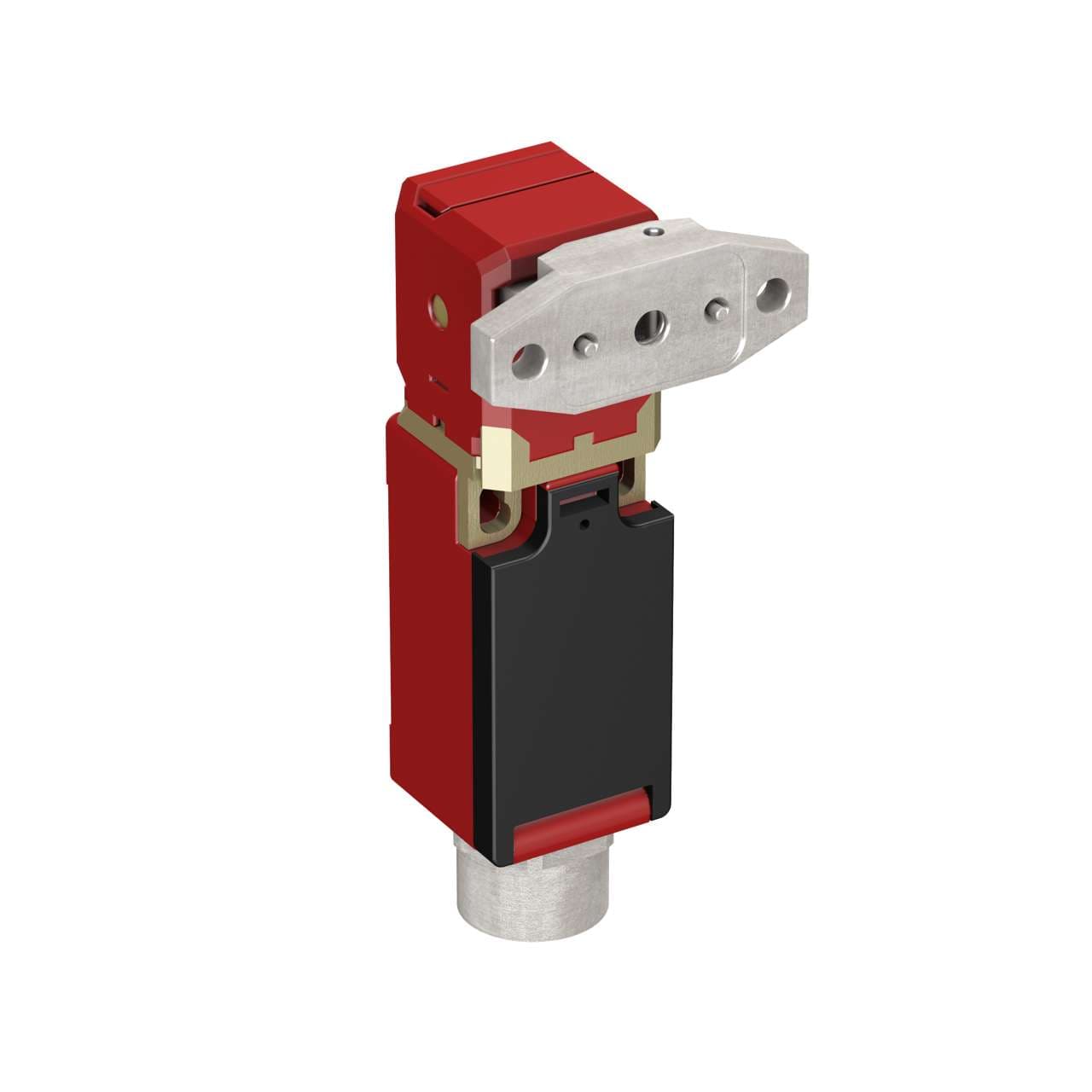

Part#:SI-LS100MRFF

Alt. Part#:58744

Manufacturer:Banner

Category:Safety Switches

Product Lifecycle:Active

Product description

Limit Switch: Flexible In-Line; Actuator Position: Top Front Back Left or Right; Contact Configuration: 2 NC/1 NO; Dimensions: 100 x 31 x 31 mm; Plastic Housing

Product Details

  • Weight
    145.14944 g
  • Country Of Origin
    DE
  • Minimum Hinged Door Size (mm)
    50
  • Coding Level/Tamper Resistance
    Low
  • Mechanical Life (operations in millions)
    1
  • In-Series Diagnostics
    No
  • Auxilliary Output
    No
  • Connection Type
    Wiring Chamber
  • Feature: Lockable
    No
  • Output Type
    Contacts
  • Actuator (Safety) Contacts
    2 NC/1 NO
  • SISTEMA
    B10d = 2 million
  • Monitor (Locked) Contacts
    N/A
  • PL Rating
    PL e
  • SIL Rating
    SIL CL 3
  • Safety Category
    Cat 4
  • Switch Style
    Contact
  • IP Rating
    IP65
  • Min Op. Temperature (°C)
    -30
  • Actuation
    Flexible
  • Device Type
    Mechanical - Kit
  • Primary Housing Material
    Thermoplastic
  • Device Size
    100 x 30 x 31
  • Max Op. Temperature (°C)
    80
  • Device Shape
    Rectangular

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SI-LS100MRFF on Powermatic Associates is $127.00. Order now.

About the product

Banner Engineering SI-LS100MRFF is a tongue-operated door switch from the SI-LS100 series, designed with a flexible in-line actuation for safety machine door, hood, or gate switch applications. It features a thermoplastic housing and a wiring chamber with an M20 entry for connections. This switch is equipped with 1NO+2NC contacts, supporting a rated current of 10A at 24Vac (AC-15), 6A at 24Vdc (DC-13), 10A at 110Vac (AC-15; 40-60Hz), 1A at 110Vdc (DC-13), 6A at 230Vac (AC-15; 40-60Hz), 6A at 24Vdc, and 0.4A at 230Vdc (DC-13). It operates within an ambient air temperature range of -30 to +80°C and offers a degree of protection of IP65. The switch has a rectangular shape with dimensions of 30 mm in width, 100 mm in height, and 31 mm in depth. It includes 1 Normally Open (NO) auxiliary contact and 2 Normally Closed (NC) auxiliary contacts.

SI-LS100MRFF Related Documents

59622.pdf
