SI-HG80DQDR Banner Safety Switches

SI-HG80DQDR on Powermatic Associates
Banner

Part#:SI-HG80DQDR

Alt. Part#:46732

Manufacturer:Banner

Category:Safety Switches

Product Lifecycle:Active

Product description

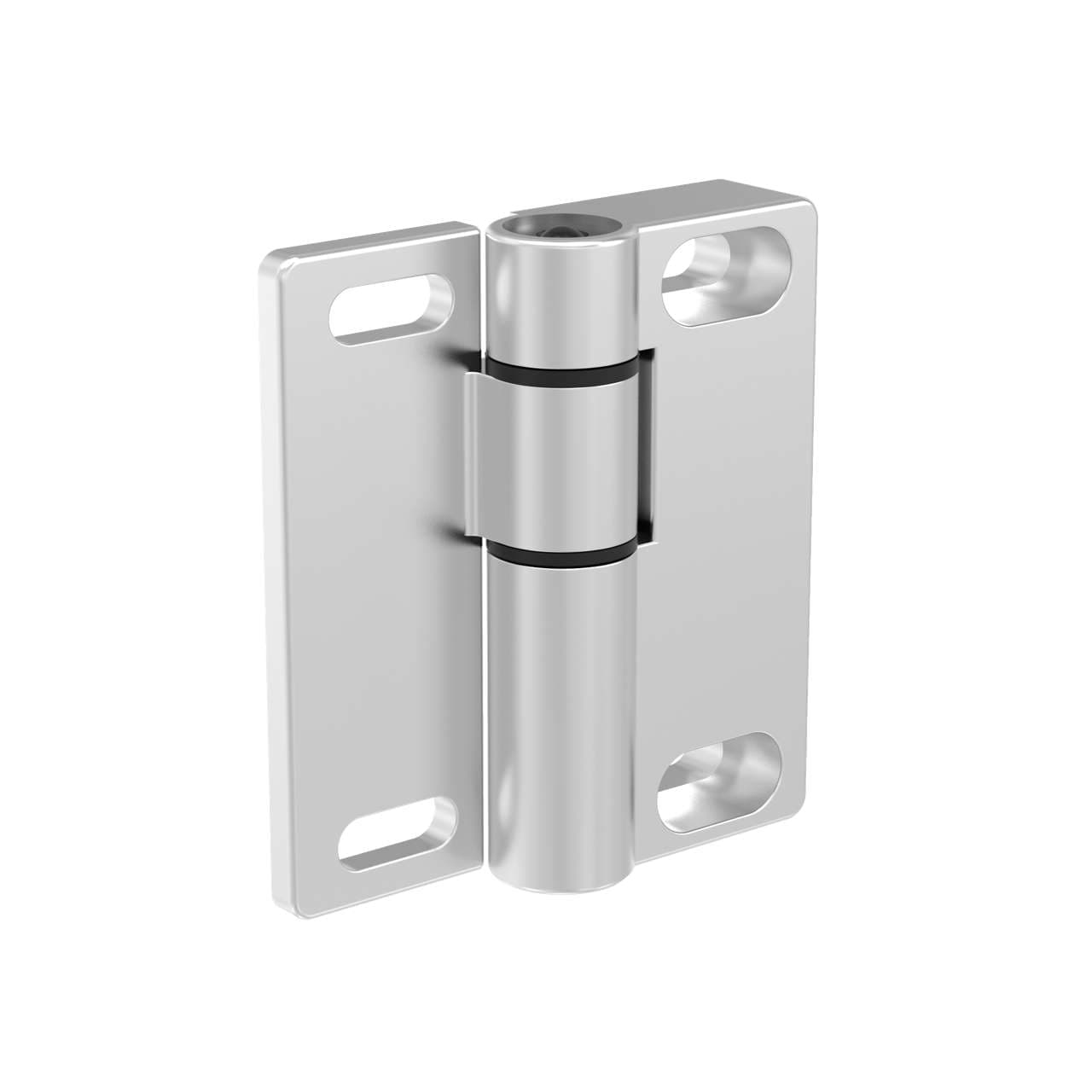

Hinge Safety Interlock Switch Zinc Die cast; Right-angle QD; SPDT (1 NC/1 NO);Micro 4-pin M12 (Dual Key) QD

Product Details

  • Weight
    362.8736 g
  • Country Of Origin
    DE
  • Range of Motion
    180
  • Coding Level/Tamper Resistance
    Uncoded
  • Switch Point Positioning
    One-Time Set
  • Number of Pins
    4
  • Auxilliary Output
    No
  • Mechanical Life (operations in millions)
    1
  • Feature: Lockable
    No
  • In-Series Diagnostics
    No
  • Feature: Washdown Rated
    Yes
  • Monitor (Locked) Contacts
    N/A
  • Output Type
    Contacts
  • Connection Type
    M12
  • Actuator (Safety) Contacts
    1 NC/1 NO
  • SISTEMA
    B10d = 2 million
  • Safety Category
    Cat 4
  • SIL Rating
    SIL CL 3
  • PL Rating
    PL e
  • IP Rating
    IP67
  • Max Op. Temperature (°C)
    70
  • Min Op. Temperature (°C)
    -25
  • Device Shape
    Hinge
  • Device Size
    80 x 72 x 19
  • Device Type
    Hinge
  • Primary Housing Material
    Zinc Alloy Die-Cast
  • Switch Style
    Contact

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SI-HG80DQDR on Powermatic Associates is $218.00. Order now.

About the product

Banner Engineering SI-HG80DQDR is a door switch from the SI-HG80 series, designed as a 270° hinge motion switch mounted on the right. This safety interlock switch hinge features a thermoplastic housing and a die-cast Zinc alloy hinge. It comes pre-equipped with a 4-pin Euro-style M12 right-angle connector for connectivity. The switch includes 1NO+1NC contacts, with an additional set of normally open (NO) and normally closed (NC) auxiliary contacts. It operates within an ambient air temperature range of -25 to +70 °C and offers a degree of protection rated at IP67.
