SG-TL70-W Banner Signal Towers

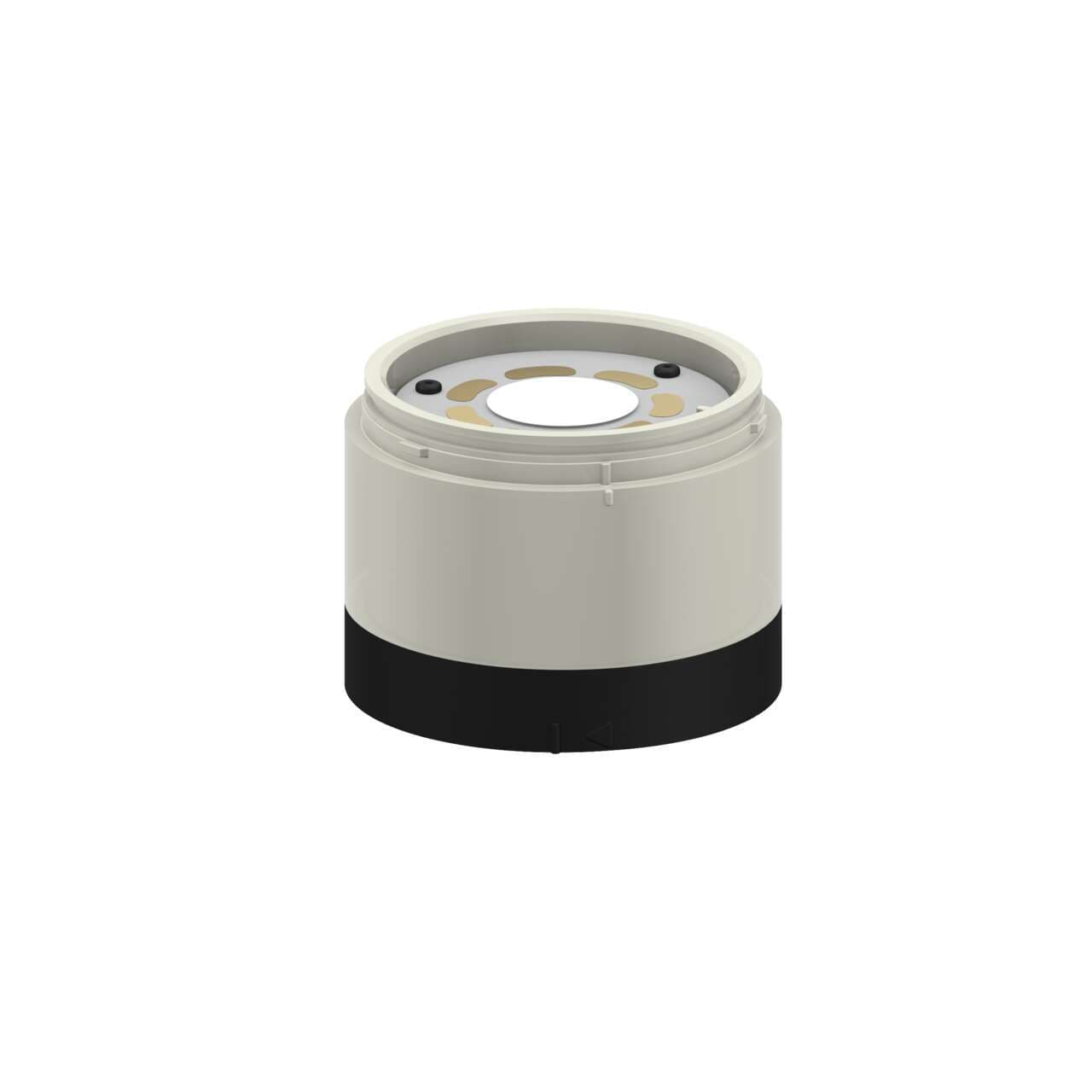

Banner SG-TL70-W TL70 Light Module; Color: White; Voltage: 12-30 V dc; Environmental Rating: IP65; Steady On/Flashing; Black Housing
Banner

Part#:SG-TL70-W

Manufacturer:Banner

Alt. Part#:92215

Product Lifecycle:Active

Get a quick Quote!

TL70 Light Module; Color: White; Voltage: 12-30 V dc; Environmental Rating: IP65; Steady On/Flashing; Black Housing

About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SG-TL70-W Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    31.75144 g
  • Country Of Origin
    MX
  • Modbus RTU
    No
  • Wireless
    No
  • Feature: Chemical Resistant
    No
  • IO Link
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Primary Window Material
    Polycarbonate Diffused
  • Max Op. Relative Humidity Non-Condensing (%)
    95% @ 50°C
  • Min Op. Temperature (°C)
    -40
  • Primary Housing Color
    Black
  • Max Op. Temperature (°C)
    50
  • Color Technology
    Standard LED
  • Storage Temp (°C)
    -40 to 70
  • Environmental Rating
    IP65
  • Color Option 1
    White
  • Housing Style
    Segment - Light
  • Physical Dimensions (LxWxH or DxH mm)
    70.0 x 50.0
  • Animation Option 1
    Dip-Switch Controlled
  • Number of Colors / Segments
    1
  • Color 1 - Wavelength/Color Temp/Coordinates
    5000K (Daylight)
  • Max Current Color (mA)
    420
  • Lumens Color 1
    125
  • Mounting Thread
    No Thread
  • Power Source
    DC or AC
  • Indication
    Yes
  • Product Size (mm)
    70
  • Power
    DC or AC
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Primary Housing Material
    Polycarbonate
  • Feature: Quick Disconnect
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SG-TL70-W Description

Banner Engineering SG-TL70-W is a light unit within the Modular series, featuring a 1-color White LED illumination designed for tow light module applications. It is constructed with Polycarbonate (PC) windows and segments, along with a Polycarbonate (PC) base, ensuring durability. This unit has a cylindrical shape with a diameter of 70mm / 2-3/4" and comes in a black housing. It operates on a supply voltage range of 12Vdc-30Vdc, with a nominal voltage of 24Vdc, and has a current consumption of 420mA. The SG-TL70-W is designed to function in ambient air temperatures ranging from -40°C to +50°C and is rated with a degree of protection of IP65, indicating a high level of protection against dust and water ingress.

Related documents SG-TL70-W Specs

SG-TL70-W 182215.pdf
