SG-TL70-RGB14 Banner Signal Towers
Part#:SG-TL70-RGB14
Manufacturer:Banner
Alt. Part#:803732
Product Lifecycle:Active
Get a quick Quote!

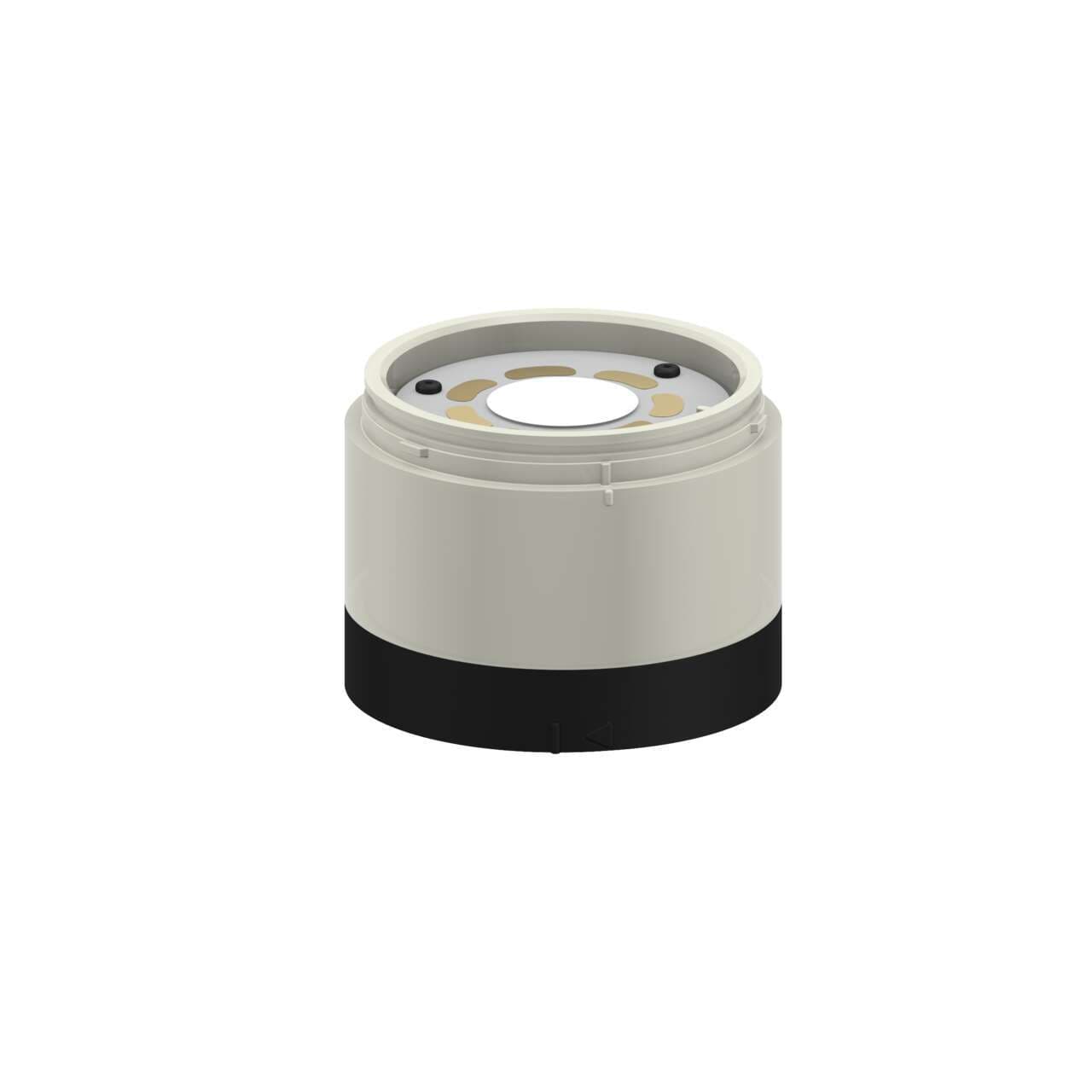

TL70 Light Module; 14-color RGB; Voltage: 12-30 V dc; Environmental Rating: IP65; Steady On/Flashing; Black Housing
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SG-TL70-RGB14 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 102.965384 g
- Country Of Origin MX
- Wireless No
- Modbus RTU No
- IO Link No
- Pro-Editor Compatible (Discrete) No
- Multi-Color Device Single Color On
- Feature: Audible No
- Feature: Chemical Resistant No
- Feature: Hazardous Area No
- Primary Window Material Polycarbonate Diffused
- Max Op. Temperature (°C) 50
- Primary Housing Color Black
- Min Op. Temperature (°C) -40
- Storage Temp (°C) -40 to 70
- Environmental Rating IP65
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Max Input Response Time (ms) 50
- Physical Dimensions (LxWxH or DxH mm) 70.0 x 50.0
- Dimming Option Dip-Switch Controlled
- Max Current Color (mA) 350
- Primary Housing Material Polycarbonate
- Color Technology RGB Configurable
- Animation Option 1 Dip-Switch Controlled
- Color Option 1 RGB
- Number of Colors / Segments 1
- Product Size (mm) 70
- Indication Yes
- Mounting Thread No Thread
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Power Source DC or AC
- Housing Style Segment - Light
- Power DC or AC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
SG-TL70-RGB14 Description
Banner Engineering SG-TL70-RGB14 is a light unit belonging to the Modular series, designed with 14-color multicolor LED illumination. This tow light module features polycarbonate (PC) windows and segments, along with a polycarbonate (PC) base, ensuring durability. It has a cylindrical shape with a diameter of 70mm / 2-3/4" and comes in a black housing. The unit operates on a supply voltage range of 12Vdc-30Vdc, with a nominal voltage of 24Vdc. It is designed to function within an ambient air temperature range of -40°C to +50°C and is rated with a degree of protection of IP65, indicating a high level of protection against dust and water ingress.
Related documents SG-TL70-RGB14 Specs
