SG-TL70-O-L Banner Signal Towers

Name: SG-TL70-O-L
Brand: Banner
Price: 90 USD
Availability: BackOrder

Part#:SG-TL70-O-L

Manufacturer:Banner

Alt. Part#:801247

Product Lifecycle:Active

Get a quick Quote!

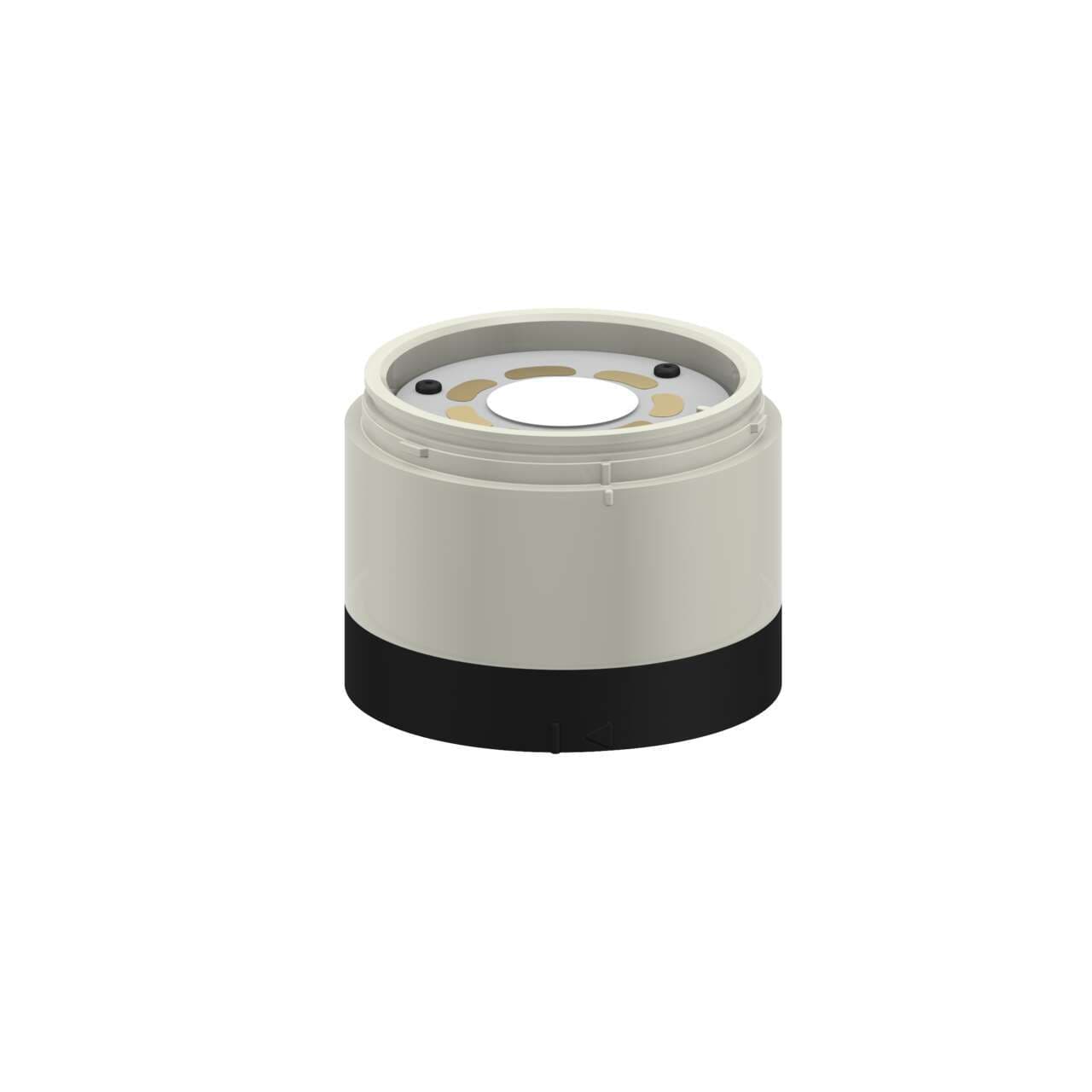

TL70 Light Module; Color: Orange; Voltage: 12-30 V dc; Environmental Rating: IP65; Steady On/Flashing; Black Housing; Laser Etched ORANGE 5 mm Height

About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SG-TL70-O-L Banner price in the box on the right side or send a quick quote.

Product Details

Weight
90.7184 g
Country Of Origin
MX
Wireless
No
Feature: Quick Disconnect
No
Storage Temp (°C)
-40 to 70
Pro-Editor Compatible (Discrete)
No
Modbus RTU
No
IO Link
No
Feature: Hazardous Area
No
Feature: Chemical Resistant
No
Feature: Audible
No
Multi-Color Device
Single Color On
Max Op. Relative Humidity Non-Condensing (%)
95% @ 50°C
Max Op. Temperature (°C)
50
Primary Window Material
Polycarbonate Diffused
Primary Housing Color
Black
Min Op. Temperature (°C)
-40
Color 1 - Wavelength/Color Temp/Coordinates
0.66, 0.33
Max Current Color (mA)
420
Lumens Color 1
33.0

Environmental Rating

IP65

Physical Dimensions (LxWxH or DxH mm)

70.0 x 50.0

Animation Option 1

Dip-Switch Controlled

Color Option 1

Orange

Color Technology

Standard LED

Product Size (mm)

Number of Colors / Segments

Mounting Thread

No Thread

Color Input Control

Individual (One wire/color, same number of colors as input wires)

Indication

Yes

Primary Housing Material

Polycarbonate

Power Source

DC or AC

Housing Style

Segment - Light

Cable Length (m)

Power

DC or AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SG-TL70-O-L Description

Banner Engineering SG-TL70-O-L is a light unit within the Modular series, featuring 1-color Orange LED illumination designed for tow light module applications. It is constructed with Polycarbonate (PC) windows and segments, along with a Polycarbonate (PC) base, ensuring durability. This unit has a cylindrical shape with a diameter of 70mm / 2-3/4" and comes in a black housing. It operates on a supply voltage range of 12Vdc-30Vdc, with a nominal voltage of 24Vdc, and has a current consumption of 420mA. The SG-TL70-O-L is designed to function in ambient air temperatures ranging from -40°C to +50°C and is rated with a degree of protection of IP65, indicating a high level of protection against dust and water ingress.

$90.00

Request a quote, and we will send availability within minutes.

Select Qty:

$90.00

$90.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us
