S18DLWXXPT Banner Signal Beacons

S18DLWXXPT on Powermatic Associates
Banner

Part#:S18DLWXXPT

Manufacturer:Banner

Alt. Part#:31673

Product Lifecycle:Active

Get a quick Quote!

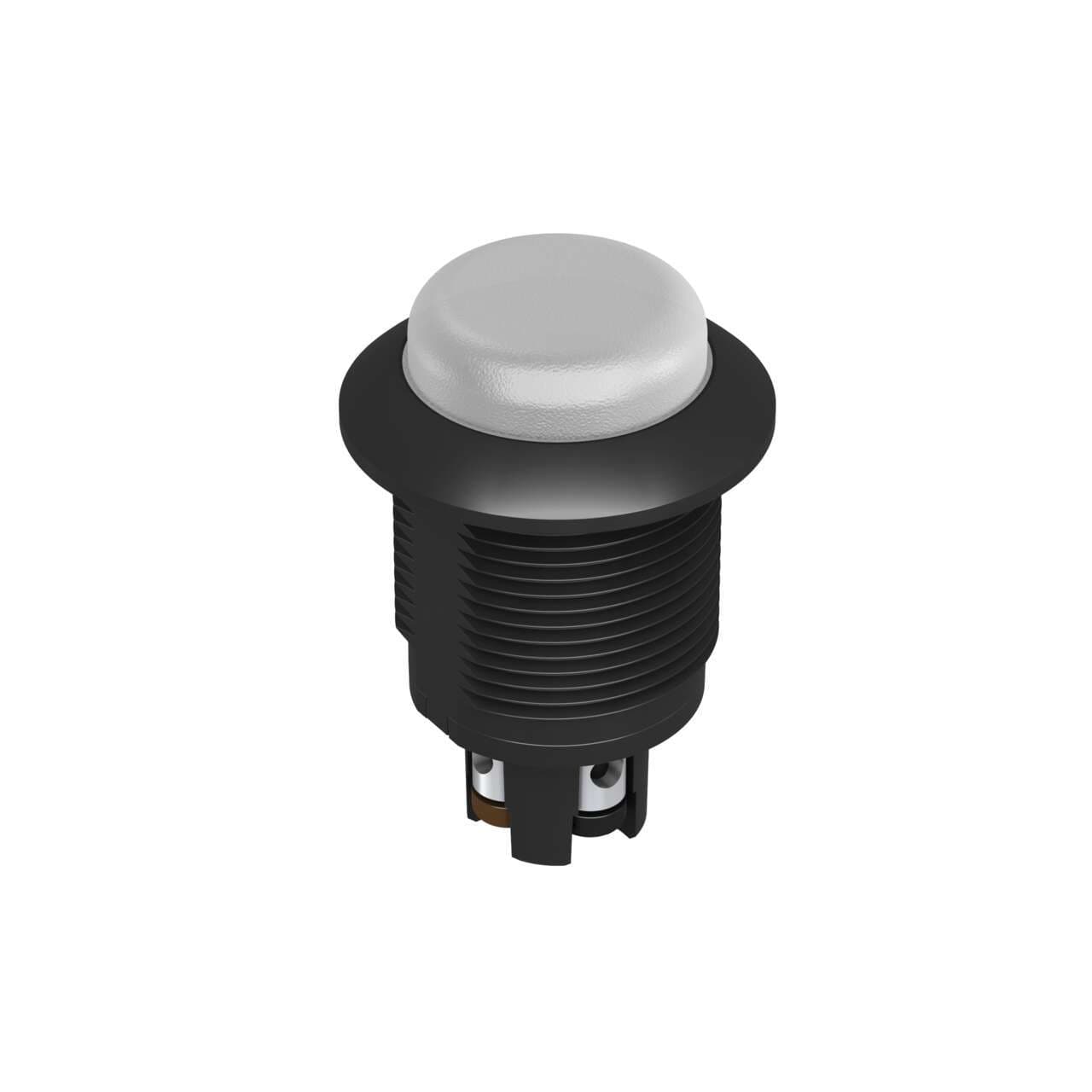

S18 DAYLIGHT VISIBLE EZ Light - 18 mm - IP67; Single Color: White; 10-30 V dc PNP Input; 4-screw Terminal Wiring

About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the S18DLWXXPT Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    63.50288 g
  • Country Of Origin
    CN
  • Wireless
    No
  • Modbus RTU
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Feature: Quick Disconnect
    No
  • IO Link
    No
  • Feature: Chemical Resistant
    No
  • Indication Intensity
    High Brightness & Daylight Visible
  • Multi-Color Device
    Single Color On
  • Feature: Audible
    No
  • Feature: Washdown Rated
    Yes
  • Feature: Hazardous Area
    No
  • Primary Window Material
    Polycarbonate Clear
  • Primary Housing Color
    Black
  • Max Op. Temperature (°C)
    50
  • Min Op. Temperature (°C)
    -40
  • Environmental Rating
    IP67; IP69
  • NEMA Type and UL Type Rating
    NEMA and UL 4X, 13
  • Physical Dimensions (LxWxH or DxH mm)
    23.5 x 34.6
  • Max Input Response Time (ms)
    1
  • Input Type
    PNP
  • Supply Voltage
    10-30 V dc
  • Number of Input Pins/Conductors
    4
  • Lumens Color 1
    4.0
  • Color 1 - Wavelength/Color Temp/Coordinates
    6000K
  • Max Current Color (mA)
    25
  • Animation Option 1
    Solid On
  • Connection
    Terminal
  • Color Option 1
    White
  • Color Technology
    Standard LED
  • Power
    DC
  • Number of Colors / Segments
    1
  • Primary Housing Material
    Polycarbonate
  • Indication
    Yes
  • Power Source
    DC
  • Product Size (mm)
    18
  • Mounting Thread
    M18 x 1.0
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Housing Style
    Barrel Mount - Flat Window

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

S18DLWXXPT Description

Banner Engineering S18DLWXXPT, part of the EZ-LIGHT series, is a pilot light designed with daylight-visible 1-color white LED illumination. This product features a clear Polycarbonate (PC) window and base, with a black housing. It has an 18mm indicator diameter and utilizes a screw-clamp terminal connection for installation. The S18DLWXXPT operates on a supply voltage range of 10Vdc to 30Vdc, with a nominal range of 12Vdc to 24Vdc, and is designed for flush mounting in an 18mm hole with an M18 thread. It is suitable for operation in ambient air temperatures ranging from -40°C to +50°C. This pilot light indicator offers a high degree of protection with ratings of IP67, IP69K, NEMA 4X, NEMA 13, UL type 4X, and UL type 13, ensuring its durability in various environments. The design includes a round protruding window and a threaded cylindrical barrel. It has a current consumption of 25mA and includes 1 x digital input (10-30Vdc; PNP) for color control.

Related documents S18DLWXXPT Specs

S18DLWXXPT 160690.pdf
