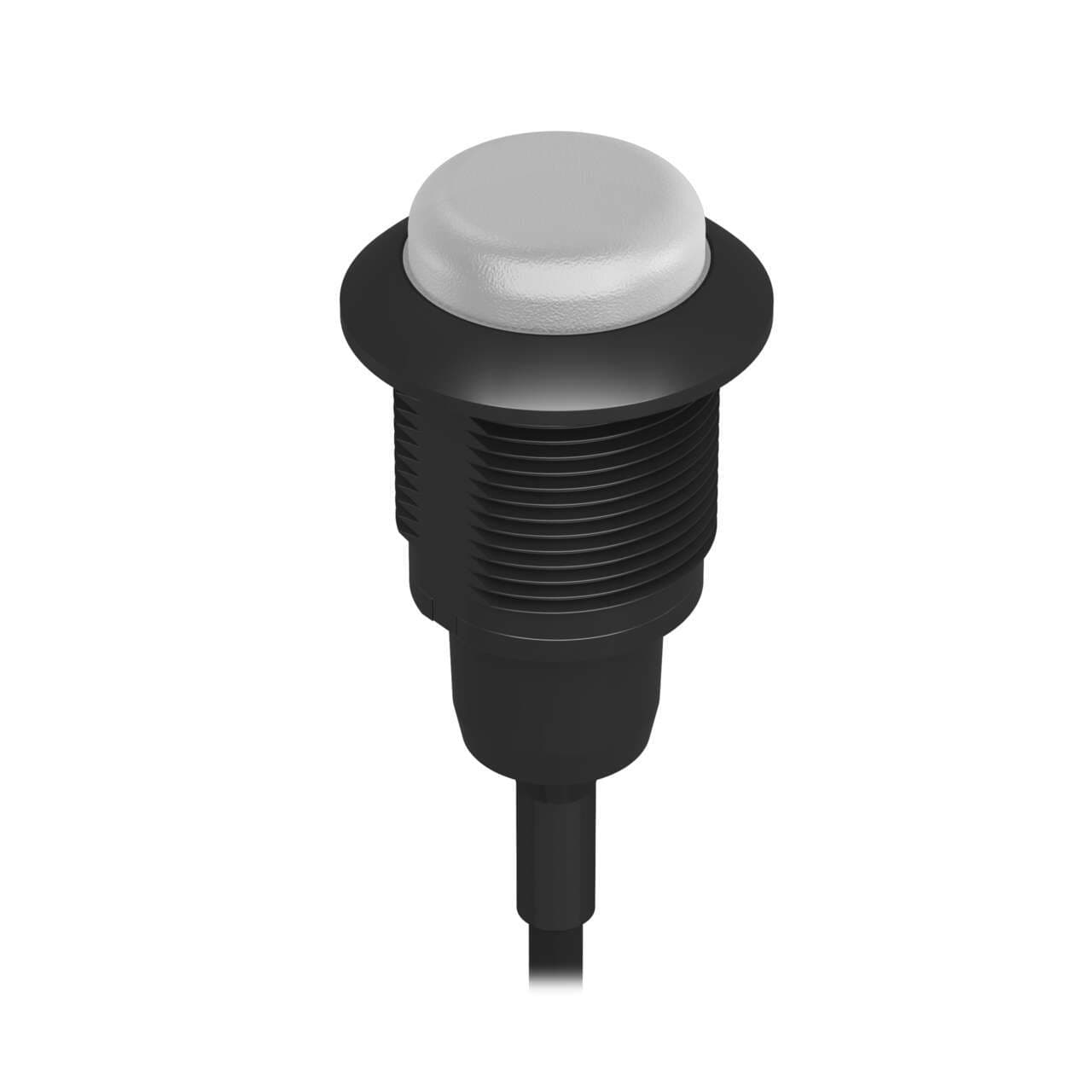

S18DLHBQP Banner Signal Beacons

Name: S18DLHBQP
Brand: Banner
Price: 68 USD
Availability: BackOrder

Part#:S18DLHBQP

Manufacturer:Banner

Alt. Part#:87918

Product Lifecycle:Active

Get a quick Quote!

S18 EZ-LIGHT Daylight Visible High Intensity 18 mm 1-Color; Voltage: 9-30 V dc; Environmental Rating: IP67; Color: Blue; Input: PNP; 150 mm (6 in) 4-pin M12 PVC Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the S18DLHBQP Banner price in the box on the right side or send a quick quote.

Product Details

Weight
63.50288 g
Country Of Origin
US
Pro-Editor Compatible (Discrete)
No
Wireless
No
Feature: Quick Disconnect
Yes
Multi-Color Device
Single Color On
Modbus RTU
No
IO Link
No
Feature: Hazardous Area
No
Feature: Chemical Resistant
No
Indication Intensity
High Brightness & Daylight Visible
Feature: Audible
No
Feature: Washdown Rated
Yes
Primary Housing Color
Black
Primary Window Material
Polycarbonate Clear
Environmental Rating
IP67; IP69
Min Op. Temperature (°C)
-40
Max Op. Temperature (°C)
60
Physical Dimensions (LxWxH or DxH mm)
23.5 x 35.7
Max Input Response Time (ms)
1

NEMA Type and UL Type Rating

NEMA and UL 4X, 13

Input Type

Bimodal (PNP/NPN)

Supply Voltage

9-30 V dc

Number of Input Pins/Conductors

Max Current Color (mA)

Color 1 - Wavelength/Color Temp/Coordinates

478 nm

Quick Disconnect Type

M12 (Euro)

Lumens Color 1

6.5

Connection

Pigtail QD

Color Option 1

Blue

Animation Option 1

Solid On

Color Technology

Standard LED

Product Size (mm)

Number of Colors / Segments

Power Source

Color Input Control

Individual (One wire/color, same number of colors as input wires)

Mounting Thread

M18 x 1.0

Primary Housing Material

Polycarbonate

Indication

Yes

Housing Style

Barrel Mount - Flat Window

Power

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

S18DLHBQP Description

Banner Engineering S18DLHBQP, part of the EZ-LIGHT series, is a pilot light designed with daylight-visible 1-color blue LED illumination. This high-intensity LED pilot light indicator features a clear Polycarbonate (PC) window and base, with a diameter of 18mm. It is pre-wired with a 6" / 15cm pigtail that terminates with a 4-pin M12 Euro-style QD connector. The housing is black, and it operates on a supply voltage of 9Vdc-30Vdc (12Vdc-24Vdc nom.). The S18DLHBQP is designed for flush mounting in an 18mm hole with an M18 thread. It can operate in ambient air temperatures ranging from -40°C to +60°C. This part offers a degree of protection rated at IP67, IP69K, NEMA 4X, NEMA 13, UL type 4X, and UL type 13. The shape is characterized by a round protruding window and a threaded cylindrical barrel. It has a current consumption of 60mA and includes 1 x digital input (9-30Vdc; PNP) for color control.
