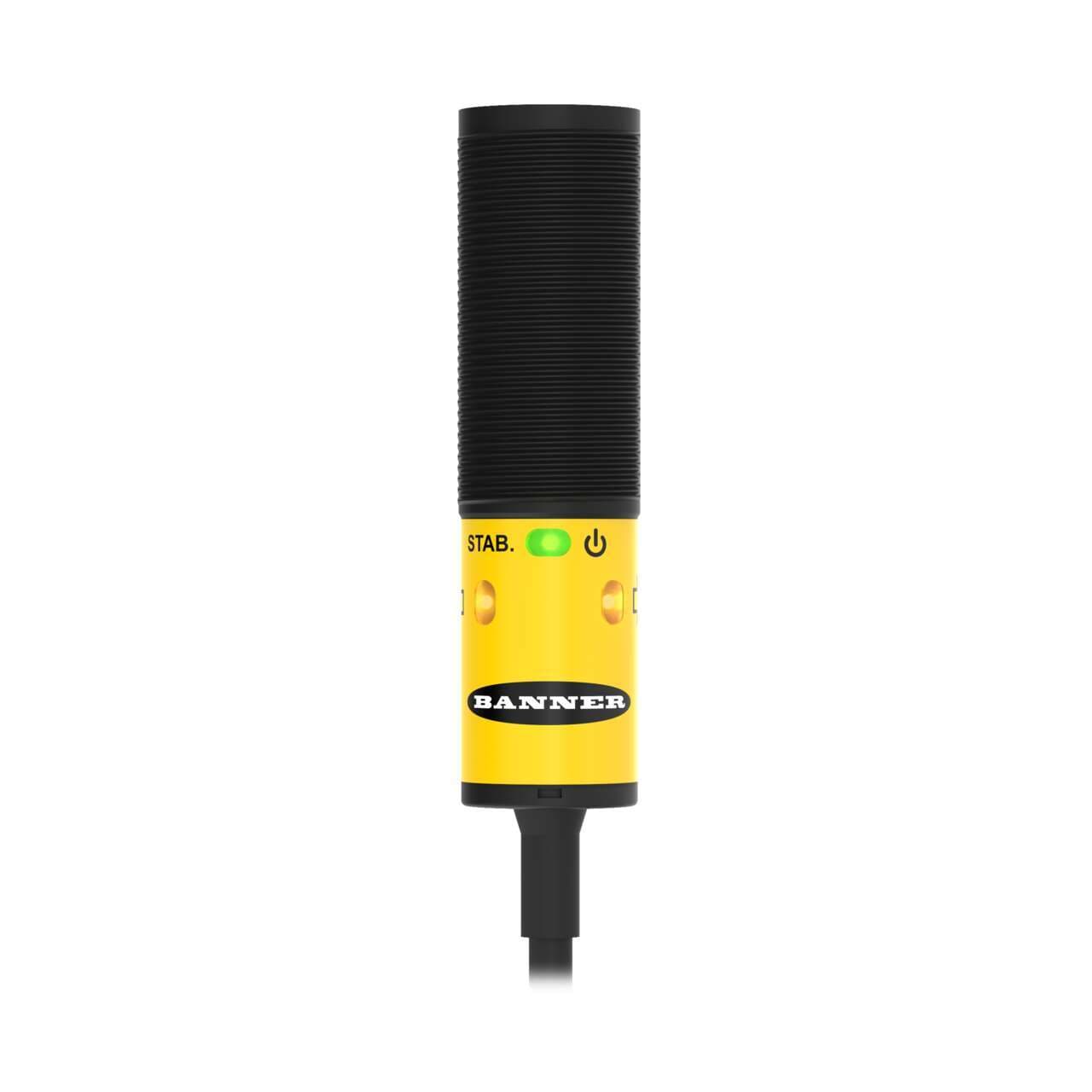

S18-2NAEL-9M Banner Optical Sensors

S18-2NAEL-9M on Powermatic Associates
Banner

Part#:S18-2NAEL-9M

Manufacturer:Banner

Alt. Part#:42191

Product Lifecycle:Active

Get a quick Quote!

S18-2 Series: Emitter; Long Range; Range: 25 m; Input: 10-30 V dc; Outputs: none; 9 m 2-conductor PVC Cable

About the manufacturer: Banner is one of the manufacturers that offers Optical Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the S18-2NAEL-9M Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    226.796 g
  • Country Of Origin
    CN
  • DeviceNet
    No
  • Feature: Audible
    No
  • Lens Material
    Acrylic
  • IO Link
    No
  • Feature: Hazardous Area
    No
  • Feature: Chemical Resistant
    No
  • Feature: Encapsulated
    No
  • Feature: Ecolab Certified
    Yes
  • Feature: Timing (Hold/Delay)
    No
  • Opposed Mode Emitter/Receiver
    Emitter
  • Indicator
    LEDs
  • Barrel Diameter (mm)
    18
  • Adjustments
    N/A
  • Max Op. Relative Humidity [%]
    95% @ 50°C
  • NEMA Rating
    N/A
  • IP Rating
    IP67
  • Number of Pins
    2
  • Repeatability (µs)
    170
  • Delay at Power-up (ms)
    100
  • Special Feature: Water Detection
    No
  • Sensing Beam Wavelength
    645
  • Special Feature: Remote Teach
    No
  • Special Feature: Intrinsically Safe
    No
  • Output response time (ms)
    1.5
  • Max Op. Temp. (°C)
    70
  • Operation
    N/A
  • Min Op. Temp. (°C)
    -40
  • Quick Disconnect Type
    No QD
  • Connection
    Cable
  • Sensing Beam
    Visible Red LED
  • Power Supply/Supply Voltage
    10-30 V dc
  • Max Sensing Distance (mm)
    25000
  • Housing Style
    Barrel
  • Power
    DC
  • Primary Housing Material
    Thermoplastic
  • Outputs
    N/A
  • Sensing Mode (Detailed)
    Emitter
  • Cable Length (m)
    9
  • Sensing Mode (General)
    Opposed
  • Sub-range name
    S18-2 series
  • Thread size
    M18
  • Degree of protection
    IP67
  • Compliant with standard(s)
    CE
  • Product series / family name
    M18 barrel series
  • Design
    through-beam system / opposed mode
  • Order code / Manufacturer SKU
    42191
  • Light Color
    Visible red
  • Main function
    Sensor (Photo-electric)
  • Connection type
    Pre-wired with 9m cable terminated with bare end flying leads
  • Equivalent to
    S182NAEL9M
  • Wavelength
    645 nm
  • Shape
    Cylindrical threaded/barrel
  • Ambient air temperature for operation
    -40...+70 °C
  • Material
    thermoplastic housing Acrylic lns.
  • Primary brand
    Banner Engineering
  • Functions
    Long-range photo-electric emitter green LED (power ON) 2 x yellow LED (output conducting)
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Response time
    1.5ms / 0.0015 s

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

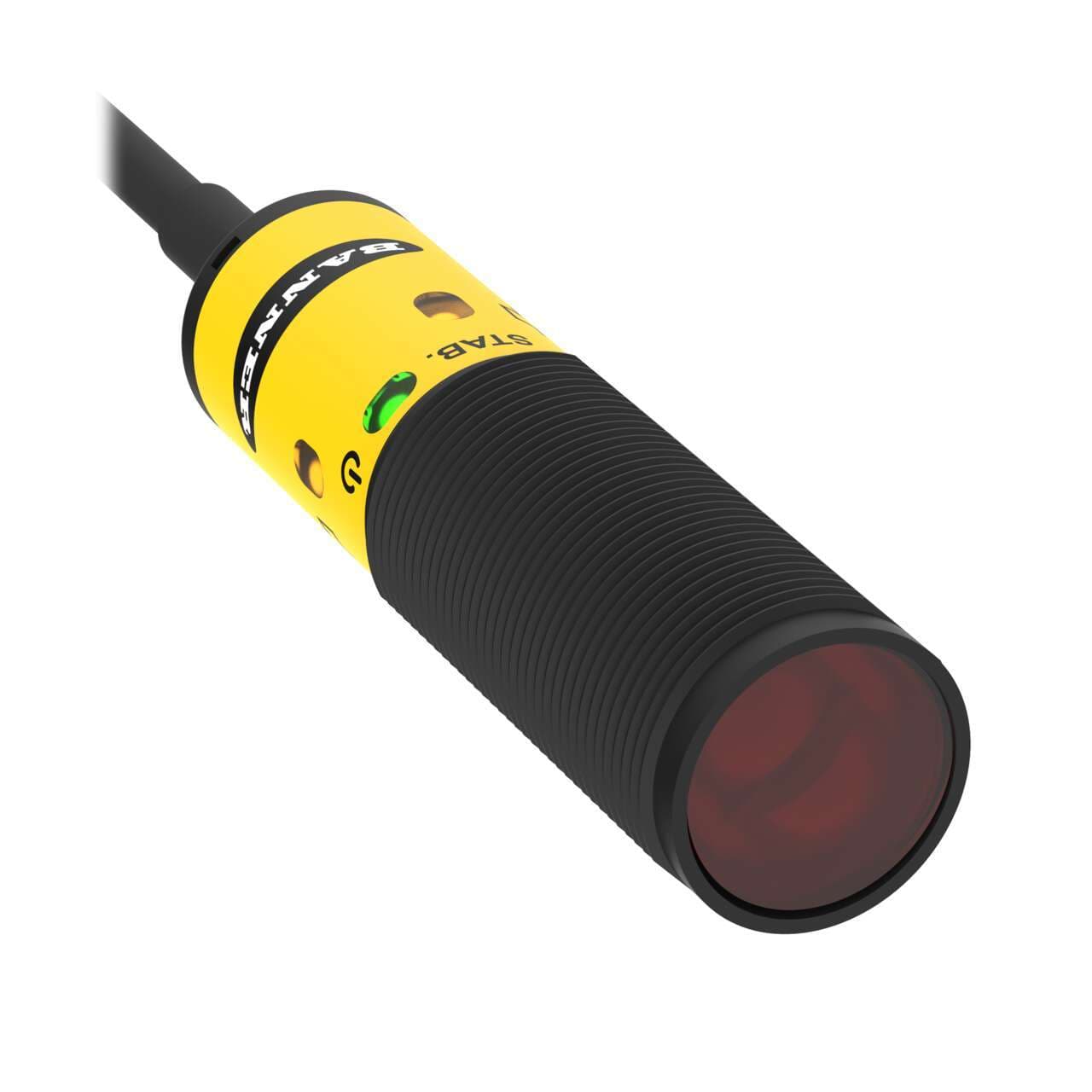

S18-2NAEL-9M Description

Banner Engineering S18-2NAEL-9M is a long-range photo-electric sensor designed for through-beam system applications, part of the S18-2 series. This sensor features a thermoplastic housing with an acrylic lens and is pre-wired with a 9m cable that terminates with bare end flying leads. It operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. The S18-2NAEL-9M can function within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP67. Its design includes an M18 cylindrical threaded/barrel shape, and it has a sensing distance of up to 25m. The sensor emits visible red light with a wavelength of 645 nm and responds in 1.5ms or 0.0015 seconds. The thread size for installation is M18.

Related documents S18-2NAEL-9M Specs

S18-2NAEL-9M 170670.pdf
