S15LRGPQ Banner Signal Beacons
Part#:S15LRGPQ
Manufacturer:Banner
Alt. Part#:811971
Product Lifecycle:Active
Get a quick Quote!

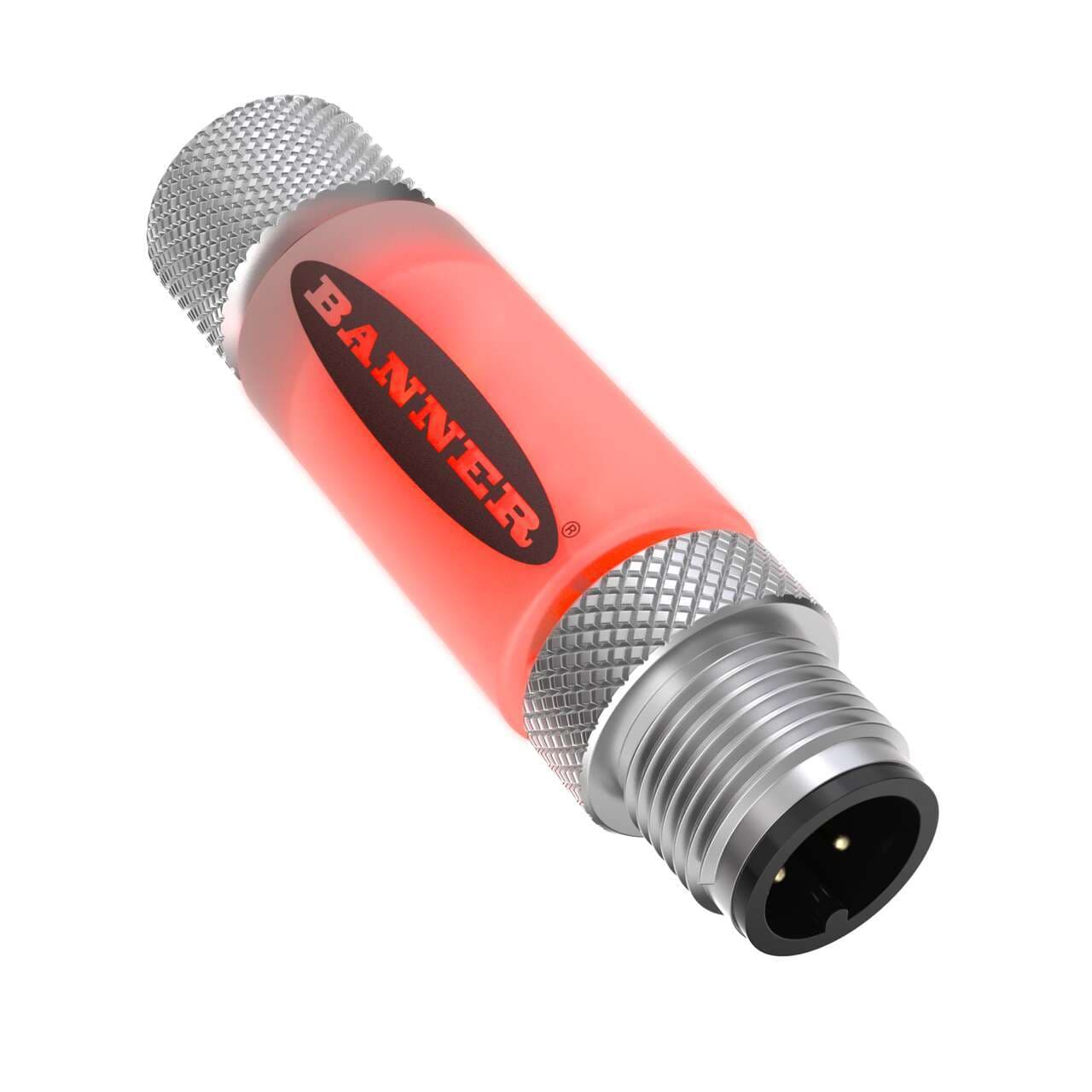

S15L Series: 2-Color In-Line Sensor Status Indicator; Voltage: 10-30 V dc; Housing: Polyurethane; IP67; Input: PNP; Colors: Red Green; Male-Female 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the S15LRGPQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 34.926584 g
- Country Of Origin TW
- Pro-Editor Compatible (Discrete) No
- Min Op. Temperature (°C) -40
- Wireless No
- IO Link No
- Modbus RTU No
- Feature: Cascade Yes
- Feature: Audible No
- Feature: Hazardous Area No
- Storage Temp (°C) -40 to 70
- Feature: Quick Disconnect Yes
- Multi-Color Device Single Color On
- Feature: Chemical Resistant No
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Max Op. Temperature (°C) 50
- Environmental Rating IP66; IP67
- Physical Dimensions (LxWxH or DxH mm) 15.0 X 58.0
- I/O Block Compatible Yes
- Number of Input Pins/Conductors 4
- Input Type PNP
- Supply Voltage 10-30 V dc
- Max Current Color (mA) 15
- Color 2 - Wavelength/Color Temp/Coordinates 525 nm
- Color Option 2 Green
- Animation Option 2 Solid On
- Color 1 - Wavelength/Color Temp/Coordinates 625 nm
- Quick Disconnect Type M12 (Euro)
- Connection Integral QD
- Animation Option 1 Solid On
- Product Size (mm) 15
- Color Technology Standard LED
- Color Option 1 Red
- Number of Colors / Segments 2
- Primary Housing Material PUR
- Mounting Thread No Thread
- Housing Style Barrel - Straight
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Power Source DC
- Indication Yes
- Power DC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
S15LRGPQ Description
Banner Engineering S15LRGPQ is a pilot light designed with a 2-color R (Not activated) / G (activated) LED illumination, serving as a 2-color in-line sensor status indicator. This part is encased in a polyurethane (PUR) housing, ensuring durability and is equipped with a 4-pin Euro-style M12 male connector for easy connection. It features dimensions of L27.9mm x D15mm and L58mm x D15mm, accommodating a supply voltage range of 10Vdc-30Vdc (12Vdc-24Vdc nominal). The S15LRGPQ is designed to operate within an ambient air temperature range of -40°C to +50°C and offers a high degree of protection with ratings of IP66, IP67, IP68, and NEMA 1. Its cylindrical linear strip shape is complemented by 1 x digital input (10-30Vdc; PNP) for color control, making it a versatile component for various applications.
Related documents S15LRGPQ Specs
Manufacturer warranty
