R58ACG2DQ8 Banner Sensor Accessories

R58ACG2DQ8 on Powermatic Associates
Banner

Part#:R58ACG2DQ8

Manufacturer:Banner

Alt. Part#:10241

Product Lifecycle:Active

Get a quick Quote!

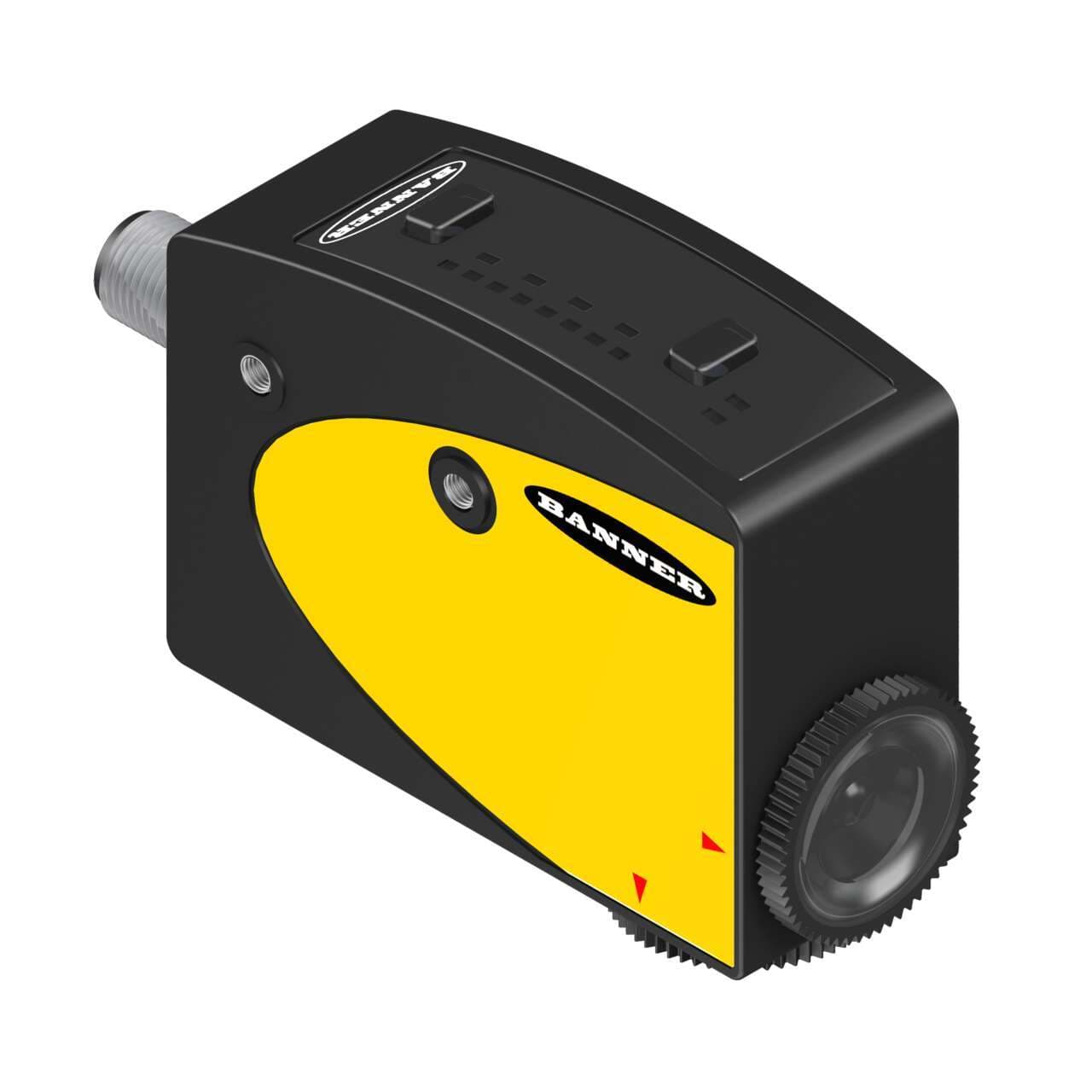

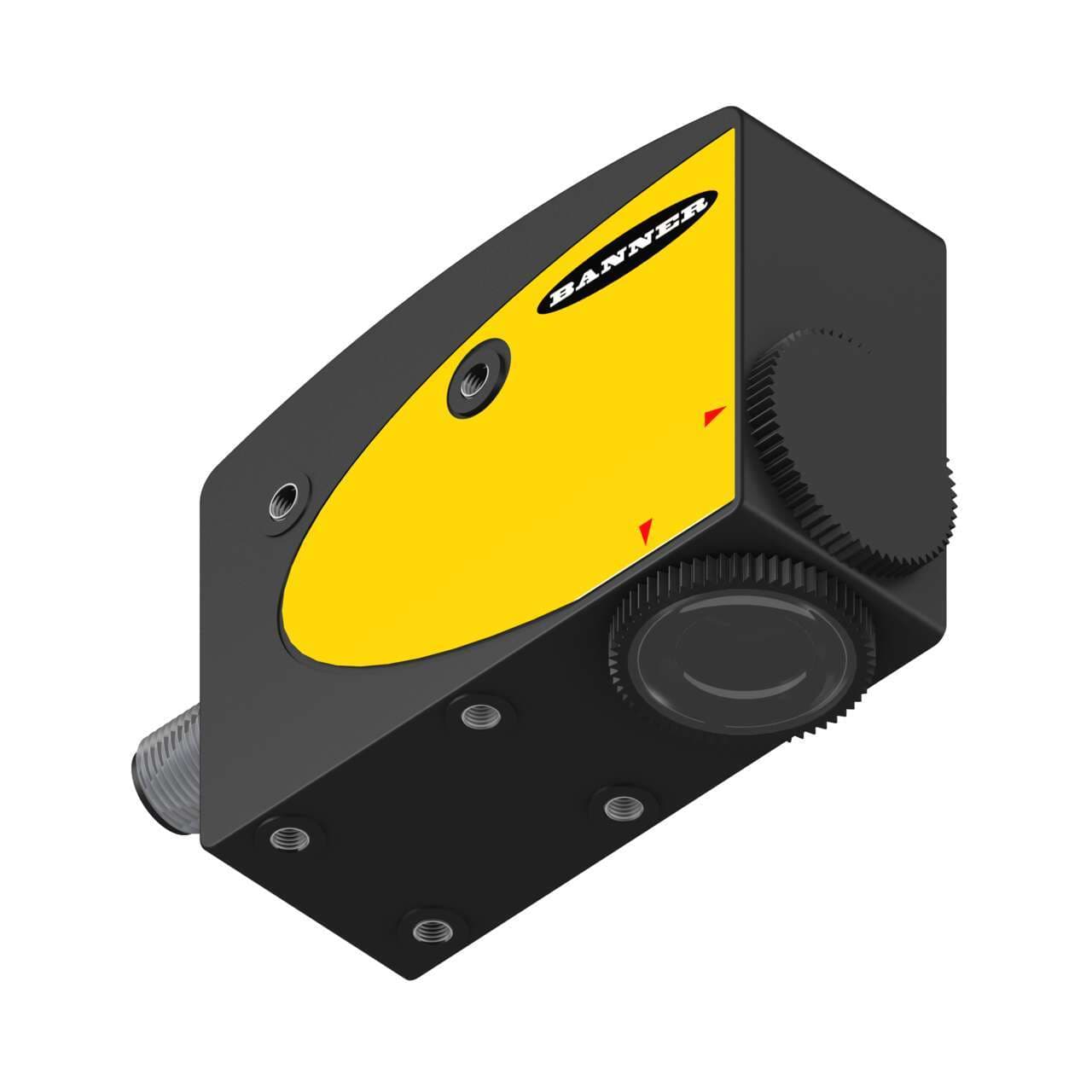

R58 A Register Mark Sensor; Input; 10-30 V dc; Output: Bipolar; 1 NPN; 1 PNP; 20 ms OFF-Delay; Green Perpendicular Sensing Beam; 5-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Sensor Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the R58ACG2DQ8 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    424.562112 g
  • Country Of Origin
    CN
  • Application: Color
    No
  • Application: Registration Mark
    Yes
  • IO Link
    No
  • Application: Luminescence
    No
  • Delay at Power-up (ms)
    100
  • Special Feature: Analog Output
    No
  • Feature: Timing (Hold/Delay)
    Yes
  • Beam Spot Size
    1.2 x 3.8 mm at 10 mm
  • Max Op. Relative Humidity (%)
    90% @ 50°C
  • Min Op. Temperature (°C)
    -10
  • Max Op. Temperature (°C)
    50
  • NEMA Rating
    N/A
  • IP Rating
    IP67
  • Lens Material
    Acrylic
  • Repeatability (µs)
    15
  • Output response time (ms)
    0.05
  • Indicator
    LEDs
  • LED Orientation
    Perpendicular to sensor length
  • Number of Pins
    4
  • Operation
    Light/Dark Operate
  • Power Supply/Supply Voltage
    10-30 V dc
  • Max Sensing Range (mm)
    10
  • Outputs
    Bipolar (NPN & PNP)
  • Connection
    Integral QD
  • Quick Disconnect Type
    M12 (Euro)
  • Sensing Beam Wavelength
    525
  • Special Feature: Remote Teach
    No
  • Sensing Beam
    Visible Green LED
  • Power
    DC
  • Adjustments
    Potentiometer
  • Primary Housing Material
    Zinc Alloy Die-Cast

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.


R58ACG2DQ8 Description

Banner Engineering R58ACG2DQ8 is a registration mark sensor from the R58A series, designed for precise detection with a convergent mode perpendicular sensing image and a 20ms OFF-delay potentiometer adjustment. It operates within an ambient air temperature range of -10 to +50°C and is housed in a die-cast Zinc alloy with an Acrylic lens, ensuring durability. This sensor is pre-equipped with a 4-pin Euro-style M12 connector for easy installation and features an IP67 degree of protection, making it suitable for challenging environments. It supports a supply voltage range of 10Vdc to 30Vdc (with 12Vdc / 24Vdc nominal), and its rectangular shape is designed for straightforward integration into various applications. The sensing distance is set at 10mm, utilizing visible green light with a wavelength of 525 nm for registration mark detection. It offers both Light-ON and Dark-ON operating modes to accommodate different operational requirements. The R58ACG2DQ8 provides a rapid response time of 0.05ms / 0.00005 s and includes 1 x digital output (PNP/NPN transistor) for reliable signal processing.



Related documents R58ACG2DQ8 Specs
