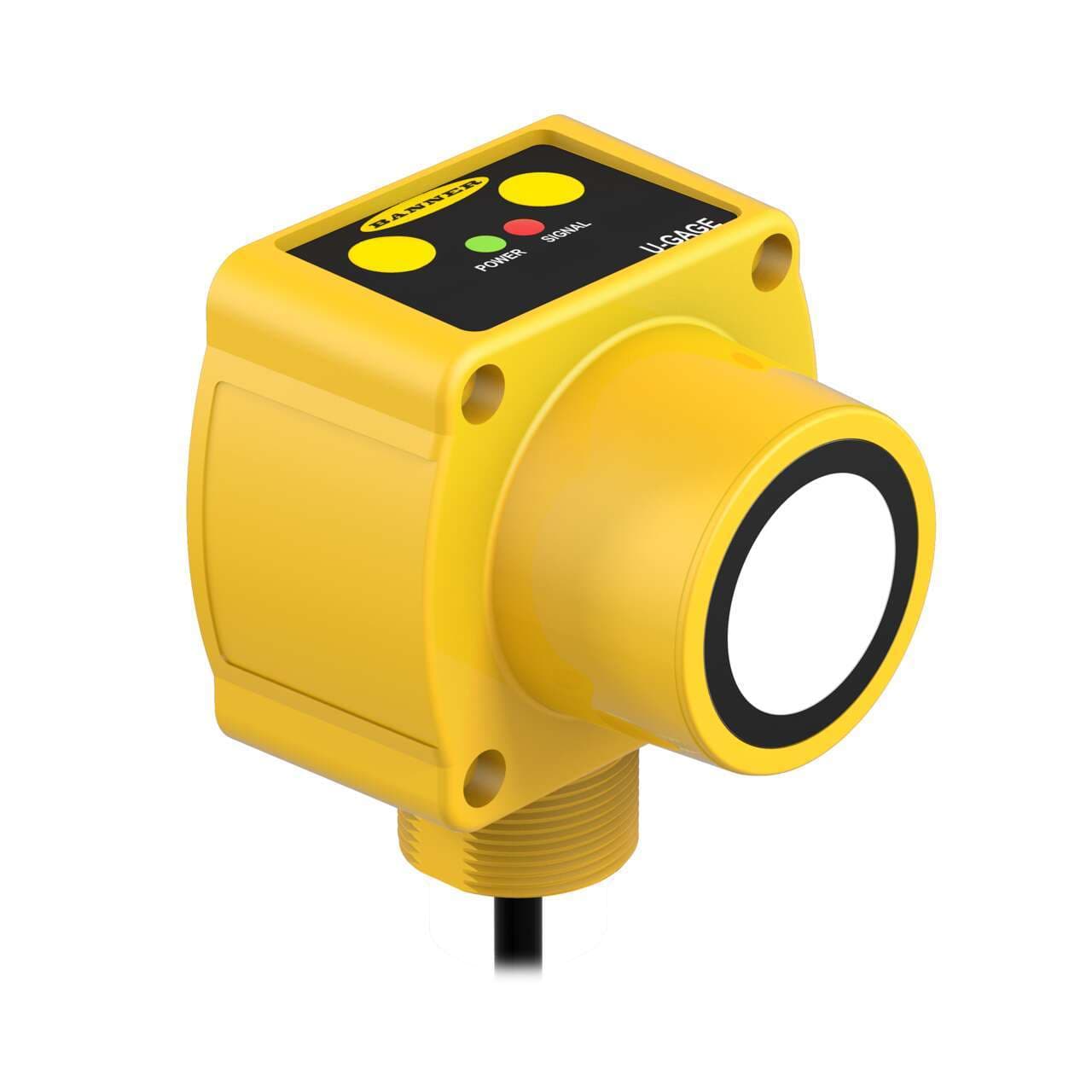

QT50ULB Banner Ultrasonic Sensors

Product Details

• Weight
  508.02304 g
• Country Of Origin
  US
• Profibus
  No
• RS-485
  No
• SSI
  No
• Common Ethernet Protocol
  No
• Supply Protection Circuitry
  Protected against reverse polarity and transient overvoltages
• RS-422
  No
• PROFINET
  No
• RS-232
  No
• 1-wire Serial Interface
  No
• Wireless
  No
• Application: Ultrasonic
  Yes
• IO Link
  No
• Feature: Chemical Resistant
  No
• Feature: Timing (Hold/Delay)
  No
• Feature: Remote Teach
  Yes
• Feature: Clear Object Detection
  Yes
• Power/Current Consumption (exclusive of load)
  100 mA max @ 10 V dc; 40 mA max @ 30 V dc
• Ultrasonic Frequency (kHz)
  75
Minimum Window Size (mm)
20
Analog Linearity (mm)
+/- 0.2% of span from 200 to 8000 mm; +/- 0.1 % of span from 500 to 8000 mm (1 mm minimum)
Rep Rate (ms)
96
Warm-up Time (minutes)
15
Max Op. Relative Humidity Non-Condensing (%)
100
Minimum Response Time (ms)
100
Max Operating Temperature (°C)
70
Min Operating Temperature (°C)
-20
Storage Temperature (°C)
-40 to 90
NEMA Rating
NEMA 6P
Output Protection
Protected against short circuit conditions
IP Rating
IP67
Analog Voltage Output Rating
500 Ω min. load impedance
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Analog Current Output Rating
1 kΩ or [(Vcc-5 V)/0.02 A] Ω, whichever is lower
Number of Pins
5
Vibration
MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Power Supply
13-30 V dc
Delay at Power-up (ms)
1500
Temperature Effect (mm/°C)
Uncompensated: 0.2% of distance/°C; Compensated: 0.02% of distance/°C
Adjustments
Push Button (s)
Minimum Sensing Distance (mm)
200
Analog Output Configuration
0-10 V dc or 4-20 mA
Max Sensing Distance (mm)
8000
Analog Resolution/Discrete Repeatability
1
Connection
Flying Leads
Indicator
LED(s)
Quick Disconnect Type
No QD
Input/Output
Analog
Primary Housing Material
PBT
Device Type
Sensor
Housing Style
Rectangular
Sensing Beam
Ultrasonic
Power
DC
PC Configurable
No
Sensing Mode (General)
Proximity
Sensing Mode (Detailed)
Time of Flight
Max Measurement Range
>1 m - <=20 m
Cable Length (m)
2
Thread size
M30
Degree of protection
IP67 NEMA 6P
Compliant with standard(s)
CE
Product series / family name
U-GAGE series
Sensing distance
20cm...8m
Ambient air temperature for operation
-20...+70 °C
Main function
Sensor (Distance)
Functions
Ultrasonic distance sensor/transmitter green LED (power ON) amber LED (output state) red LED (signal)
Material
thermoplastic housing
Emission frequency
75kHz
Primary brand
Banner Engineering
Sub-range name
QT50ULB series
Shape
Rectangular
Mounting mode
Threaded mount
Connection type
Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
Supply voltage (DC)
13Vdc-30Vdc (24Vdc nom.)
Design
time-of-flight system
Analog outputs
1 x analog output (0-10Vdc / 4-20mA)
Protection functions
Short-circuit
Order code / Manufacturer SKU
02726
