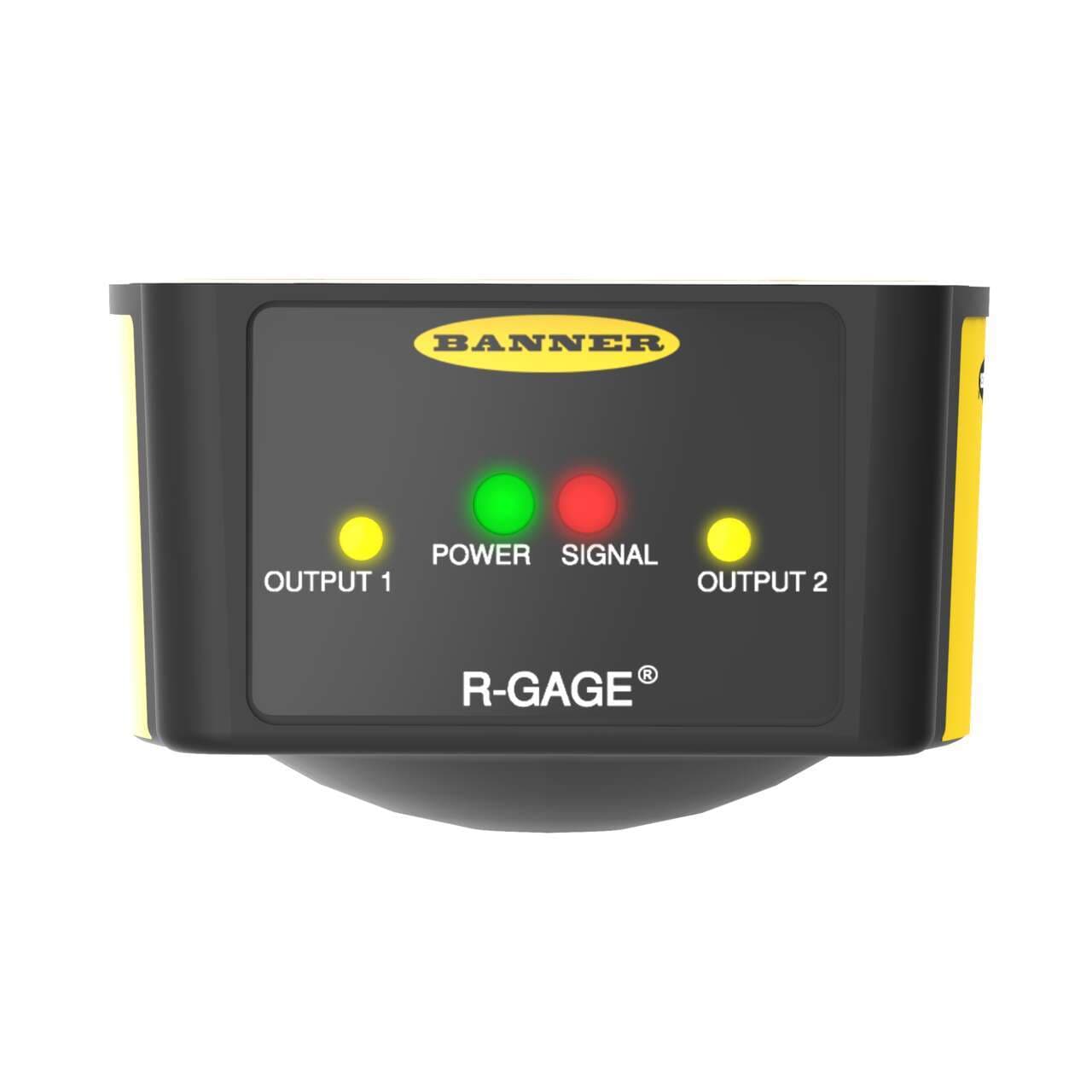

QT50R-US-AF2Q Banner Safety Light Curtains

QT50R-US-AF2Q on Powermatic Associates
Banner

Part#:QT50R-US-AF2Q

Manufacturer:Banner

Alt. Part#:88383

Product Lifecycle:Active

Get a quick Quote!

R-Gage Series Radar Sensor; Adjustable Field; Outputs: Bipolar: 1 NPN; 1 PNP; Supply Voltage: 12-24 V dc; Range: 3.5 - 24 m; 5-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the QT50R-US-AF2Q Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    376.48136 g
  • Country Of Origin
    US
  • Cert: Canada
    Yes
  • Cert: US
    Yes
  • Profibus
    No
  • 1-wire Serial Interface
    No
  • Wireless
    No
  • RS-485
    No
  • RS-422
    No
  • RS-232
    No
  • SSI
    No
  • PROFINET
    No
  • IO Link
    No
  • Common Ethernet Protocol
    No
  • Feature: Chemical Resistant
    No
  • Supply Protection Circuitry
    Protected against reverse polarity and transient overvoltages
  • Feature: Timing (Hold/Delay)
    No
  • Power/Current Consumption (exclusive of load)
    < 100 mA
  • Minimum Response Time (ms)
    30
  • Min Operating Temperature (°C)
    -40
  • Max Operating Temperature (°C)
    65
  • Output Protection
    Protected against short circuit
  • Discrete (Switched) Outputs
    2 NPN/PNP Configurable
  • Max Discrete (Switched) Output (mA)
    150
  • Number of Pins
    5
  • IP Rating
    IP67
  • Adjustments
    Dip Switch
  • Delay at Power-up (ms)
    2000
  • Power Supply
    12-30 V dc
  • Minimum Sensing Distance (mm)
    3500
  • Max Sensing Distance (mm)
    24000
  • Quick Disconnect Type
    M12 (Euro)
  • Connection
    Integral QD
  • Radar Beam Pattern (H x V °)
    90 x 76
  • Indicator
    LED(s)
  • Primary Housing Material
    ABS/Polycarbonate
  • Device Type
    Sensor
  • Input/Output
    Discrete
  • Housing Style
    Rectangular
  • Power
    DC
  • Sensing Mode (Detailed)
    Time of Flight
  • PC Configurable
    No
  • Sensing Beam
    Radar
  • Sensing Mode (General)
    Proximity
  • Operating Frequency
    24 GHz
  • Max Measurement Range
    >20 m - <=50 m
  • Shape
    Rectangular
  • Ambient air temperature for operation
    -40...+65 °C
  • Sub-range name
    QT50R-AF2
  • Product series / family name
    R-GAGE series
  • Operating mode
    NO (Normally Open) NC (Normally Closed)
  • Protection functions
    Reverse polarity Short-circuit
  • Order code / Manufacturer SKU
    88383
  • Primary brand
    Banner Engineering
  • Connection type
    Pre-equipped with 5-pin Euro-style M12 connector
  • Compliant with standard(s)
    cULus CE
  • Digital outputs
    2 x digital outputs (PNP/NPN transistors)
  • Equivalent to
    QT50RUSAF2Q
  • Design
    time-of-flight system
  • Sensing distance
    3.5...24m
  • Degree of protection
    IP67
  • Main function
    Sensor (Radar)
  • Functions
    Dual-zone collision-avoidance adjustable-field radar sensor green LED (power ON) yellow LED (output state)
  • Material
    ABS / polycarbonate housing
  • Supply voltage (DC)
    12Vdc-30Vdc (24Vdc nom.)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

QT50R-US-AF2Q Description

Banner Engineering QT50R-US-AF2Q is a dual-zone collision-avoidance adjustable-field radar sensor designed for a wide range of industrial applications. This sensor operates within an ambient air temperature range of -40 to +65 °C and is built on a time-of-flight system that is approved for use in the US, Canada, and Brazil. It comes pre-equipped with a 5-pin Euro-style M12 connector for easy installation. As part of the QT50R-AF2 series, it features an IP67 degree of protection, making it suitable for harsh environments. The sensor operates on a supply voltage of 12Vdc to 30Vdc, with 24Vdc nominal. Its rectangular shape is constructed from ABS / Polycarbonate (PC) housing, ensuring durability. The QT50R-US-AF2Q offers a sensing distance of 3.5 to 24 meters and includes operating modes of NO (Normally Open) and NC (Normally Closed). It is equipped with 2 x digital outputs (PNP/NPN transistor) and includes protection functions against reverse polarity and short-circuit, enhancing its operational reliability.

Related documents QT50R-US-AF2Q Specs

QT50R-US-AF2Q 187234.pdf

Manufacturer warranty

$1,620.00

Request a quote, and we will send availability within minutes.

Select Qty:

$1,620.00

$1,620.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
