Part#:QT50R-KR-AFH

Alt. Part#:91209

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

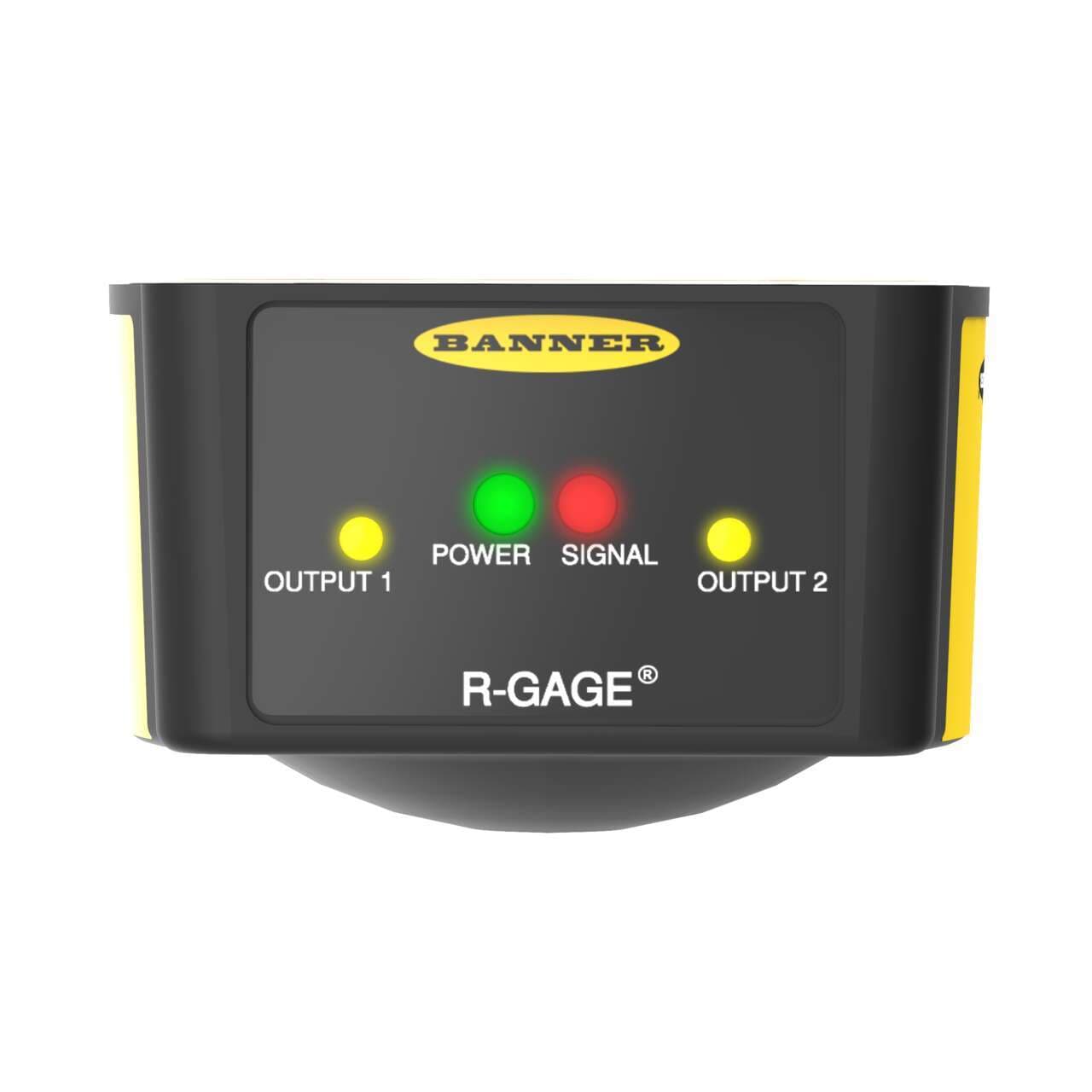

R-Gage Series Radar Sensor; Adjustable Field; Outputs: Bipolar: 1 NPN; 1 PNP; Supply Voltage: 12-24 V dc; Range: 2.0-24 m; 2 m (6.5 ft) Cable

Product Details

  • Weight
    453.592 g
  • Country Of Origin
    US
  • Design
    time-of-flight system
  • Main function
    Sensor (Radar)
  • Functions
    Collision-avoidance adjustable-field radar sensor green LED (power ON) yellow LED (output state)
  • Digital outputs
    1 x digital output (PNP/NPN transistor)
  • Material
    ABS / polycarbonate housing
  • Supply voltage (DC)
    12Vdc-24Vdc
  • Connection type
    Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
  • Ambient air temperature for operation
    -40...+65 °C
  • Compliant with standard(s)
    cULus CE
  • Product series / family name
    R-GAGE series
  • Sensing distance
    2...24m
  • Operating mode
    NO (Normally Open) NC (Normally Closed)
  • Degree of protection
    IP67
  • Order code / Manufacturer SKU
    91209
  • Primary brand
    Banner Engineering
  • Sub-range name
    QT50R-AFH
  • Shape
    Rectangular
  • Equivalent to
    QT50RKRAFH
  • Protection functions
    Reverse polarity Short-circuit
  • PC Configurable
    No
  • Power
    DC
  • Primary Housing Material
    ABS/Polycarbonate
  • Device Type
    Sensor
  • Number of Pins
    5
  • Output Protection
    Protected against short circuit
  • Minimum Response Time (ms)
    30
  • Common Ethernet Protocol
    No
  • Wireless
    No
  • Profibus
    No
  • Operating Frequency
    24 GHz
  • Minimum Sensing Distance (mm)
    2000
  • Max Operating Temperature (°C)
    65
  • PROFINET
    No
  • Housing Style
    Rectangular
  • Indicator
    LED(s)
  • Discrete (Switched) Outputs
    Bipolar (NPN & PNP)
  • Adjustments
    Dip Switch
  • RS-232
    No
  • Cable Length (m)
    2
  • Connection
    Flying Leads
  • Max Discrete (Switched) Output (mA)
    150
  • IO Link
    No
  • 1-wire Serial Interface
    No
  • Feature: Chemical Resistant
    No
  • Sensing Beam
    Radar
  • Radar Beam Pattern (H x V °)
    90 x 76
  • Power Supply
    12-24 V dc
  • Supply Protection Circuitry
    Protected against reverse polarity and transient overvoltages
  • SSI
    No
  • Max Measurement Range
    >20 m - <=50 m
  • Quick Disconnect Type
    No QD
  • Min Operating Temperature (°C)
    -40
  • RS-422
    No
  • Sensing Mode (Detailed)
    Time of Flight
  • Input/Output
    Discrete
  • IP Rating
    IP67
  • Feature: Timing (Hold/Delay)
    No
  • Cert: Korea
    Yes
  • Sensing Mode (General)
    Proximity
  • Delay at Power-up (ms)
    2000
  • Max Sensing Distance (mm)
    24000
  • Power/Current Consumption (exclusive of load)
    < 100 mA
  • RS-485
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QT50R-KR-AFH on Powermatic Associates is $1,011.00. Order now.

About the product

Banner Engineering QT50R-KR-AFH is a collision-avoidance adjustable-field radar sensor designed for a wide range of industrial applications. This sensor operates within an ambient air temperature range of -40 to +65 degrees Celsius and features a time-of-flight system that is Korea Telecom-approved. It comes pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads, ensuring easy installation. Part of the QT50R-AFH series, it boasts an IP67 degree of protection, making it suitable for harsh environmental conditions. The sensor operates on a supply voltage of 12Vdc to 24Vdc and has a rectangular shape with an ABS / Polycarbonate (PC) housing for durability. It offers a sensing distance of 2 to 24 meters and includes operating modes of NO (Normally Open) and NC (Normally Closed). Additionally, it is equipped with 1 x digital output (PNP/NPN transistor) and features protection functions against reverse polarity and short-circuit, enhancing its operational reliability.
