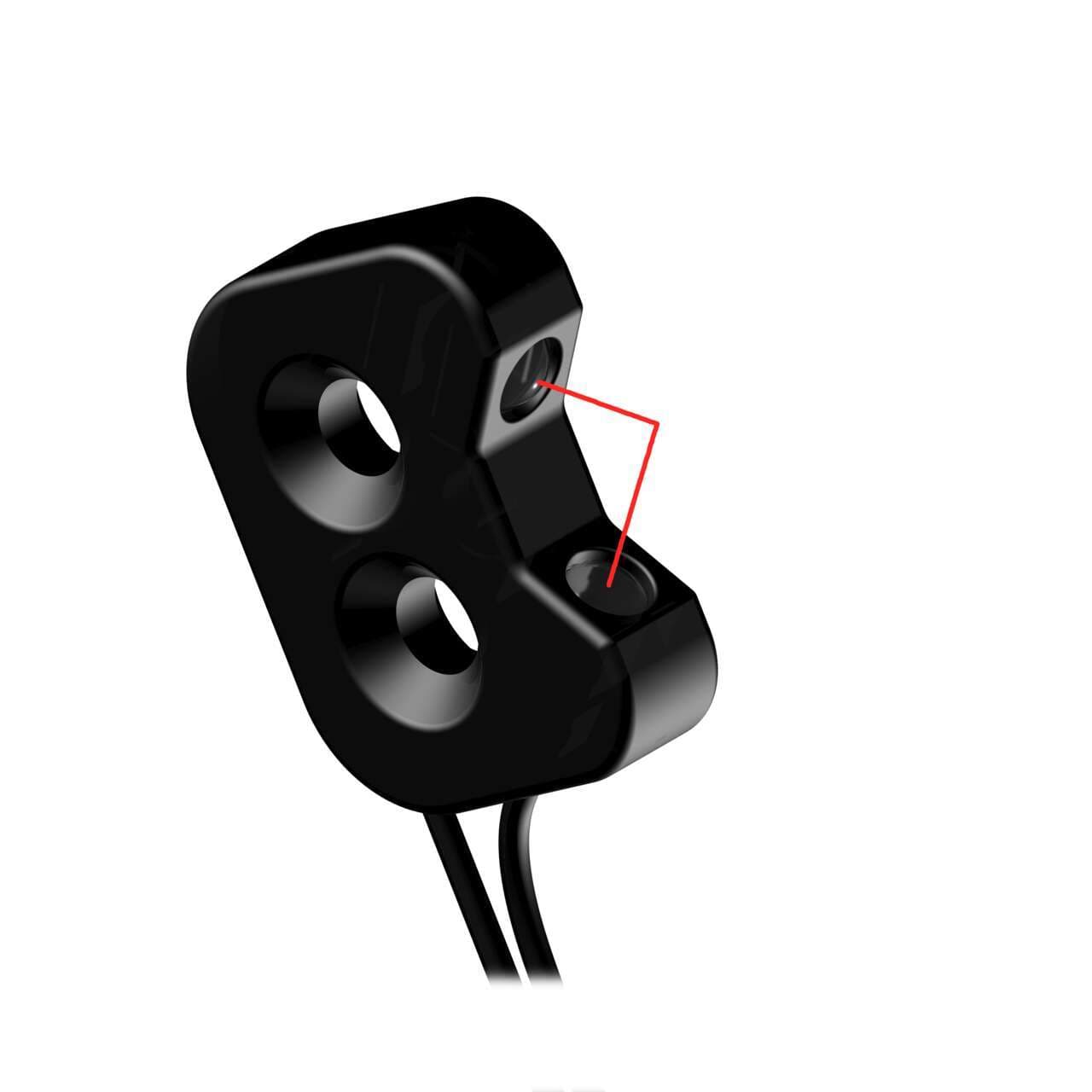

P12-C1 Banner Through Beam Sensors

Product Details

• Weight
  36.28736 g
• Country Of Origin
  JP
• Max Distance: DF-G2 (mm)
  No Data
• Max Distance: DF-G1 (mm)
  No Data
• Tariff Fiber Meters (fbm)
  4
• Measured Max Distance (mm)
  No Data
• Fiber Sensing End Size - Mounting Area
  14.2 x 19.0 mm
• Max Distance: DF-G3 (mm)
  No Data
• Feature: Chemical Resistant
  No
• Application: Liquid Level
  No
• Termination Type
  Plastic Fiber Sensors
• Application: Vacuum Feed Through
  None
• Feature: Small Object Detection
  No
• Integrated Lens
  Yes
• Feature: Extended Range
  No
• Minimum Repeat Bending Endurance
  2000
• Max Temp ( °C)
  70
• Termination
  Free Cut
• Core Diameter (mm)
  0.5
• Minimum Bend Radius (mm)
  1
Sensing End Segment 2
Sideview
Flex Relief
No
Retractile
No
Sensing End Segment 1
Rectangle
Fiber Sensing End Size
14.2 x 19.0 mm
Fiber Length (m)
2
Sensing Mode (Detailed)
Convergent
Beam Exit
Right Angle
Quantity Included
1
Fiber Sheathing Material (Jacket)
Polyethylene
Sensing End Material (Specific)
Polyethylene
Fiber Sensing End Tip
Sideview
Fiber Optic Type
Plastic
Housing Style
Fixtured
Sensing Mode (General)
Diffuse
Design
diffuse-reflective system
Order code / Manufacturer SKU
51832
Product series / family name
Fiber sensors
Shape
Rectangular
Diameter
0.5mm fiber core
Equivalent to
P12C1
Primary brand
Banner Engineering
Functions
Fiber optic sensor
Ambient air temperature for operation
+70 °C
Main function
Fiber sensor
Length
6ft / 2m
Dimensions
19x14.2mm sensing area
Sub-range name
Plastic fiber series
Material
Plastic sensing end Plastic fiber Polyethylene fiber sheath
