MQDC2S-1206 Banner Cordsets

MQDC2S-1206 on Powermatic Associates
Banner

Part#:MQDC2S-1206

Manufacturer:Banner

Category:Cordsets

Alt. Part#:11420

Product Lifecycle:Active

Get a quick Quote!

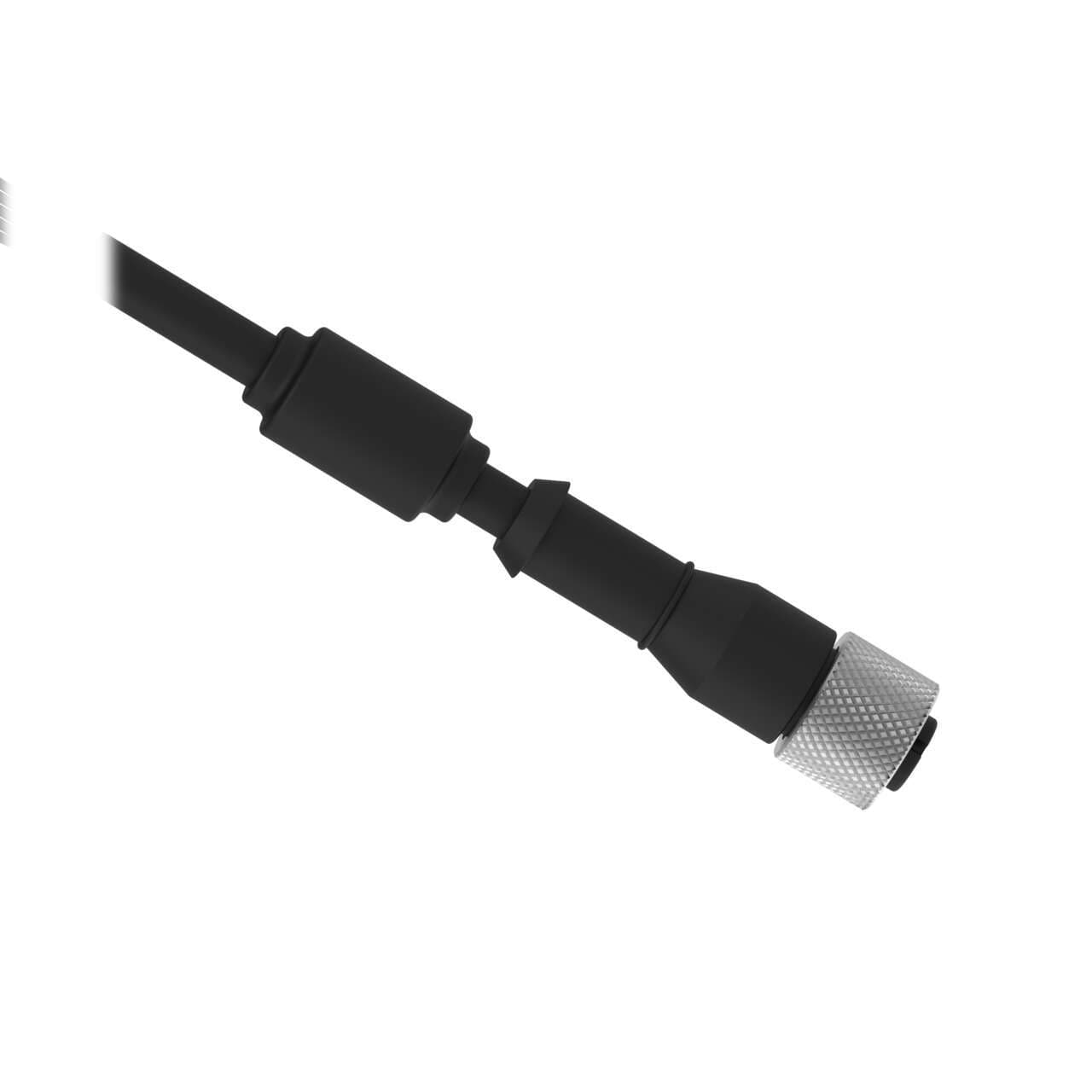

Cordset: Single Ended M12; 12-pin Straight Female; 2 m (6.56 ft) 12x20,24 Shielded Black PVC Jacket; PVC Black; Nickel-Plated Brass Coupling Nut

About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the MQDC2S-1206 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    210.466688 g
  • Country Of Origin
    TW
  • Oil/Grease Resistant
    No
  • Secondary Connector Type
    Flying Leads
  • Feature: Hazardous Area
    No
  • Primary Number of Conductors
    12
  • Primary AWG
    20, 24
  • Primary Orientation
    Straight
  • Primary Gender
    Female
  • Primary Coupling Method
    M12 Single Key
  • Voltage Rating (V)
    250 V ac/300 V dc
  • IP Rating
    IP67
  • Minimum Temp. (°C)
    -40
  • Current Rating (A)
    2.7
  • Maximum Temp. (°C)
    105
  • Primary Connector Type
    EURO
  • Coupling Material/Color
    Nickel Plated Brass
  • Shield Type
    Open
  • Shield/No Shield
    Shield
  • Number of Contacts
    12
  • Trunk Length (m)
    No Trunk
  • Connector Body Material/Color
    PVC Black
  • Cordset Length (m)
    1.83
  • Number of Connectors
    1
  • Cable Jacket Color
    Black
  • Outside Cable Diameter (mm)
    7.5
  • Cable Jacket Material
    PVC
  • Design
    single-ended
  • Rated operating voltage (Ue)
    (AC) 250 V(DC) 300 V
  • Technical compatibility with
    iVu BCR
  • Material
    PVC (cable)
  • Ambient air temperature for operation
    -40...+105 °C
  • Main function
    Cable
  • Diameter
    7.5mm
  • Connection type
    Pre-equipped with 12-pin Euro-style M12 connector bare end flying leads
  • Equivalent to
    MQDC2S1206
  • Functions
    Pre-assembled power cable / cordset
  • Length
    6ft / 2m
  • Primary brand
    Banner Engineering
  • Color
    Black sheathing
  • Degree of protection
    IP67
  • Order code / Manufacturer SKU
    11420

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.


MQDC2S-1206 Description

Banner Engineering MQDC2S-1206 is a pre-assembled power cable/cordset designed for a wide range of industrial applications. This single-ended cable features a 12-pin Euro-style M12 connector on one end and bare end flying leads on the other, facilitating easy and versatile connections. The cable has a diameter of 7.5mm and is encased in black PVC sheathing, ensuring durability and protection against environmental factors. It is rated for use in ambient air temperatures ranging from -40 to +105 degrees Celsius. With a length of 6ft (2m), the MQDC2S-1206 offers ample reach for various setups. It is designed to operate within a voltage range of 300Vdc and 250Vac, and it is protected to a degree of IP67, making it suitable for use in conditions where dust and temporary immersion in water are concerns.
