MAR4832NX485Q Banner Measurement Sensors

MAR4832NX485Q on Powermatic Associates
Banner

Part#:MAR4832NX485Q

Manufacturer:Banner

Category:Measurement Sensors

Alt. Part#:87743

Product Lifecycle:Active

Get a quick Quote!

2 Piece Mini-Array Series: Receiver 3/8 in Optical Spacing; Range: 20 ft; Sensing Length: 48 in; Input Voltage 16-30 V; Outputs: 2 Independent NPN; 150 mm (6 in) 8-pin M12 PVC Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Measurement Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the MAR4832NX485Q Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    2177.2416 g
  • Country Of Origin
    CN
  • Max Relative Humidity
    0.95
  • Emitter/Receiver Range (m)
    0.6 - 4.6
  • Housing Length (mm)
    1298
  • Power Supply
    16-30V dc
  • Minimum Object Sensitivity (mm)
    12.7-19.1
  • Discrete Output
    2 x NPN/PNP Configurable
  • Array Length (mm)
    1210
  • Max Temp (°C)
    70
  • RS-485
    Yes
  • Min Temp (°C)
    -40
  • Analog Output
    N/A
  • Number of Beams
    128
  • Modbus RTU
    No
  • Primary Housing Material
    Aluminum
  • RS-232
    No
  • IO Link
    No
  • DeviceNet
    No
  • Power
    DC
  • Beam Spacing
    9.5 mm
  • Device Type
    Two-Piece
  • Sensing Mode (Detailed)
    Receiver
  • Primary brand
    Banner Engineering
  • Sensing distance
    60cm...6.1m
  • Product series / family name
    A-GAGE series
  • Main function
    Sensor (Edge)
  • Distance
    3/8" / 9.5mm beam spacing/pitch
  • Resolution
    3/8" / 9.5mm
  • Digital outputs
    2 x digital outputs (PNP/NPN transistors)
  • Order code / Manufacturer SKU
    87743
  • Degree of protection
    IP65 UL type 1
  • Material
    Aluminium housing PVC connector
  • Compliant with standard(s)
    cURus CE
  • Sub-range name
    MINI-ARRAY 2-piece models
  • Communication protocol
    RS-485
  • Dimensions
    1210mm array length
  • Detectable object size
    12.7-19.1mm
  • Supply voltage (DC)
    16Vdc-30Vdc (24Vdc nom.)
  • Connection type
    Pre-wired with 6" / 150mm PVC pigtal terminated with M12 Mini-style connector
  • Functions
    Measuring light screen array edge/profile sensor receiver green LED (power ON) yellow LED (output state)
  • Ambient air temperature for operation
    -40...+70 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

MAR4832NX485Q Description

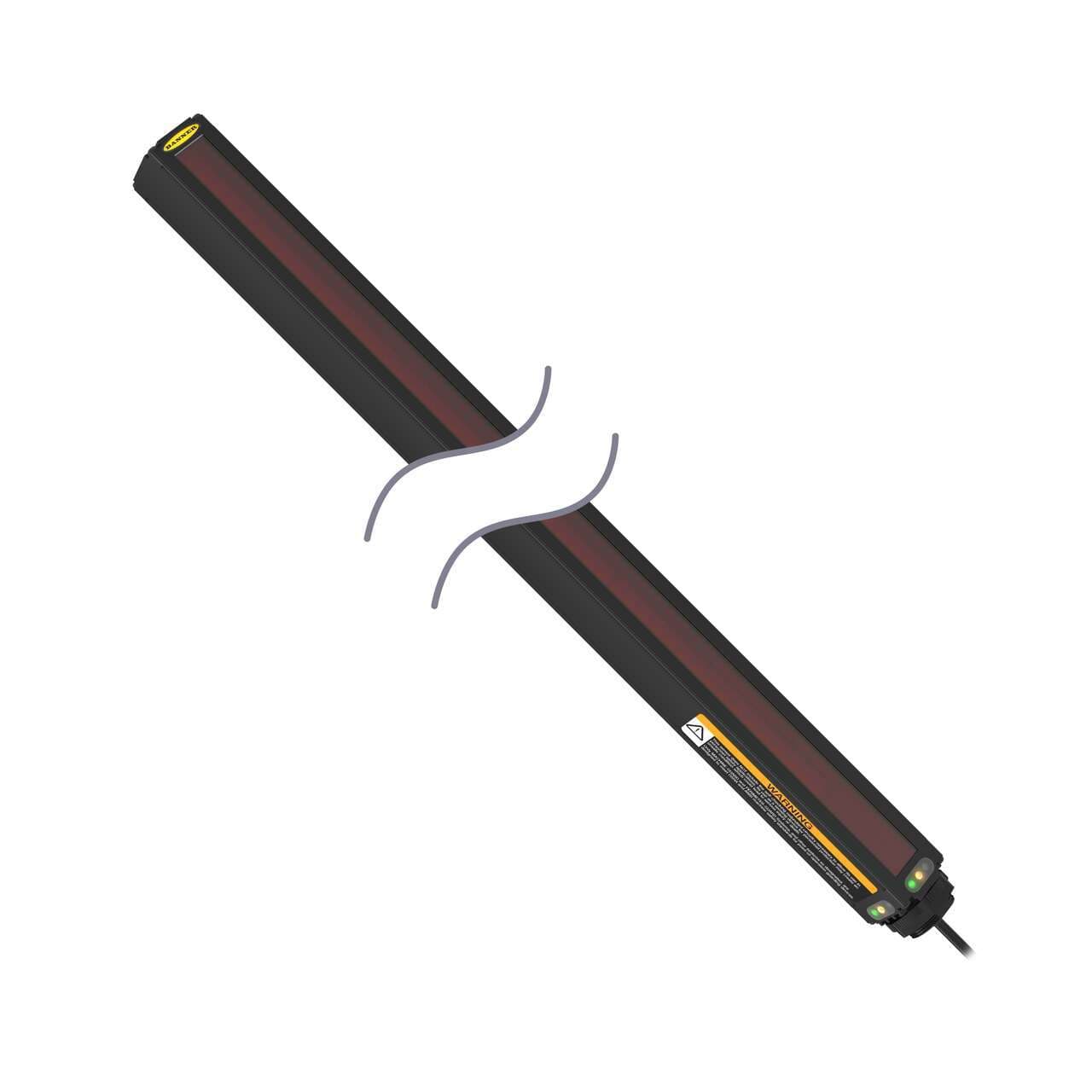

Banner Engineering MAR4832NX485Q is a sensor from the MINI-ARRAY 2-piece models series, specifically designed as a measuring light screen array edge/profile sensor (receiver alone). This unit features a 1210mm array length and is housed in aluminum with a PVC connector, ensuring durability. It has a rectangular shape and offers a beam spacing/pitch of 3/8" / 9.5mm. The sensor is pre-wired with a 6" / 150mm PVC pigtail that terminates with an M12 mini-style connector for easy installation. It operates on a supply voltage of 16Vdc-30Vdc (24Vdc nom.) and supports RS-485 communication protocol for efficient data transmission. The MAR4832NX485Q can operate in ambient air temperatures ranging from -40 to +70°C and is rated with a degree of protection of IP65, NEMA 4, NEMA 13, and UL type 1, making it suitable for various industrial environments. It offers a sensing distance of 60cm to 4.6m and includes 2 x digital outputs (PNP/NPN transistor) for versatile connectivity. With a resolution of 3/8" / 9.5mm, it can detect object sizes between 12.7-19.1mm.

Related documents MAR4832NX485Q Specs

MAR4832NX485Q 196877.pdf
