MAQDC-8150 Banner Cordsets

MAQDC-8150 on Powermatic Associates
Banner

Part#:MAQDC-8150

Manufacturer:Banner

Alt. Part#:72515

Product Lifecycle:Active

Get a quick Quote!

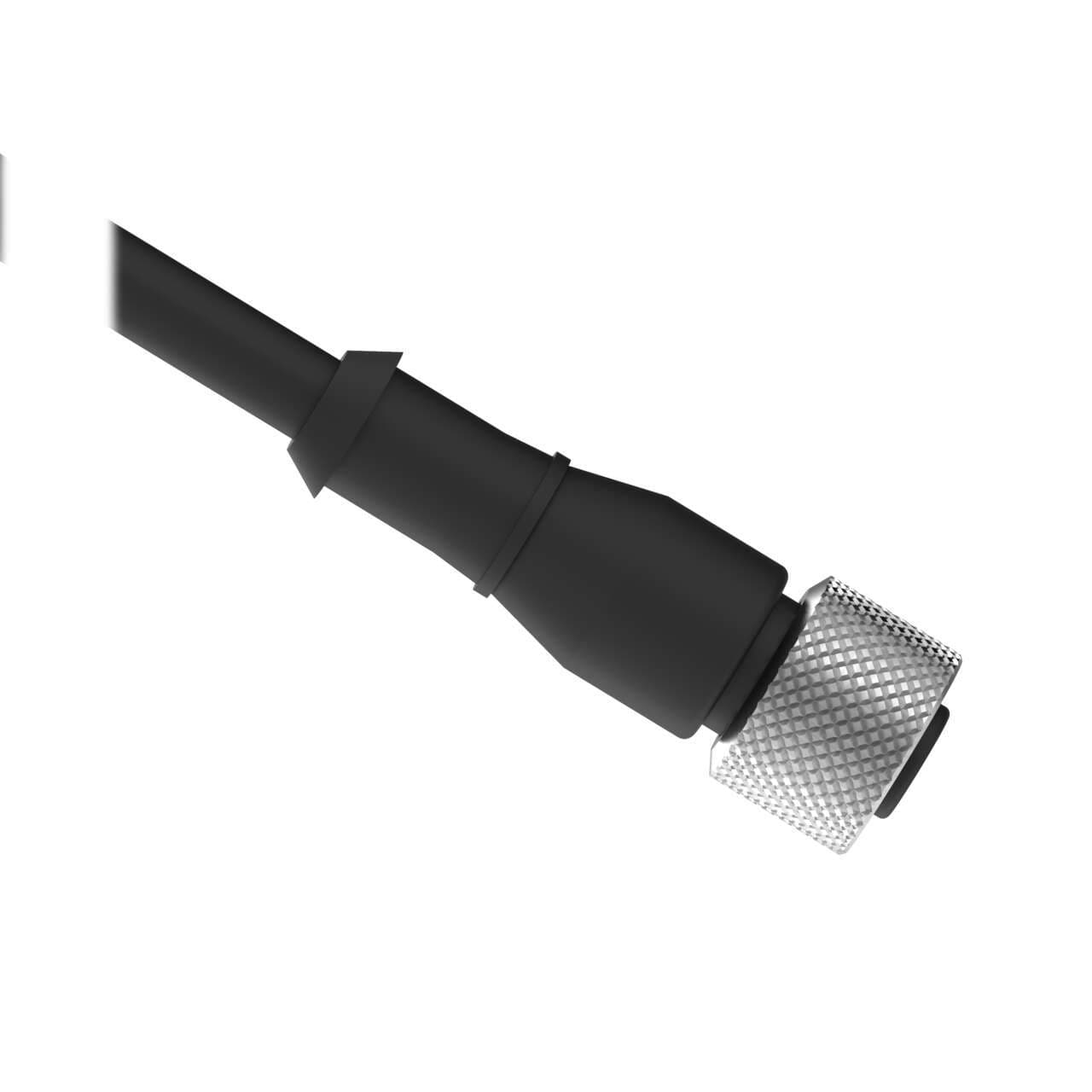

Cordset: Single Ended M12; 8-pin Straight Female; 45 m 8x24 Shielded Black PVC Jacket; Nickel-Plated Brass Coupling Nut

About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the MAQDC-8150 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    2245.2804 g
  • Country Of Origin
    US
  • Oil/Grease Resistant
    No
  • Feature: Hazardous Area
    No
  • Secondary Connector Type
    Flying Leads
  • Primary AWG
    24
  • Primary Orientation
    Straight
  • Primary Gender
    Female
  • Primary Number of Conductors
    8
  • IP Rating
    IP67
  • Voltage Rating (V)
    75 V ac/dc
  • Primary Coupling Method
    M12 Single Key
  • Primary Connector Type
    EURO
  • Current Rating (A)
    2.0
  • Coupling Material/Color
    Nickel Plated Brass
  • Maximum Temp. (°C)
    105
  • Shield Type
    Open
  • Shield/No Shield
    Shield
  • Number of Connectors
    1
  • Minimum Temp. (°C)
    -40
  • Connector Body Material/Color
    PUR Black
  • Outside Cable Diameter (mm)
    5.6
  • Trunk Length (m)
    No Trunk
  • Number of Contacts
    8
  • Cordset Length (m)
    45.7
  • Cable Jacket Material
    PVC
  • Cable Jacket Color
    Black

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

MAQDC-8150 Description

Banner Engineering MAQDC-8150 is a pre-assembled, single-ended cable designed with black PVC sheathing for durability. It features an 8-pin Euro-style M12 female connector on one end and bare flying leads on the other, facilitating easy and versatile connections. The cable extends to a length of 150ft (45.7m) and has a diameter of 5.6mm, suitable for various installation needs. It is rated for a voltage of 75Vdc and can operate in ambient air temperatures ranging from -40 to +105°C. This cable is also IP67 rated, indicating its protection against dust and temporary immersion in water.
