LX30EQ-34249 Banner Measurement Sensors

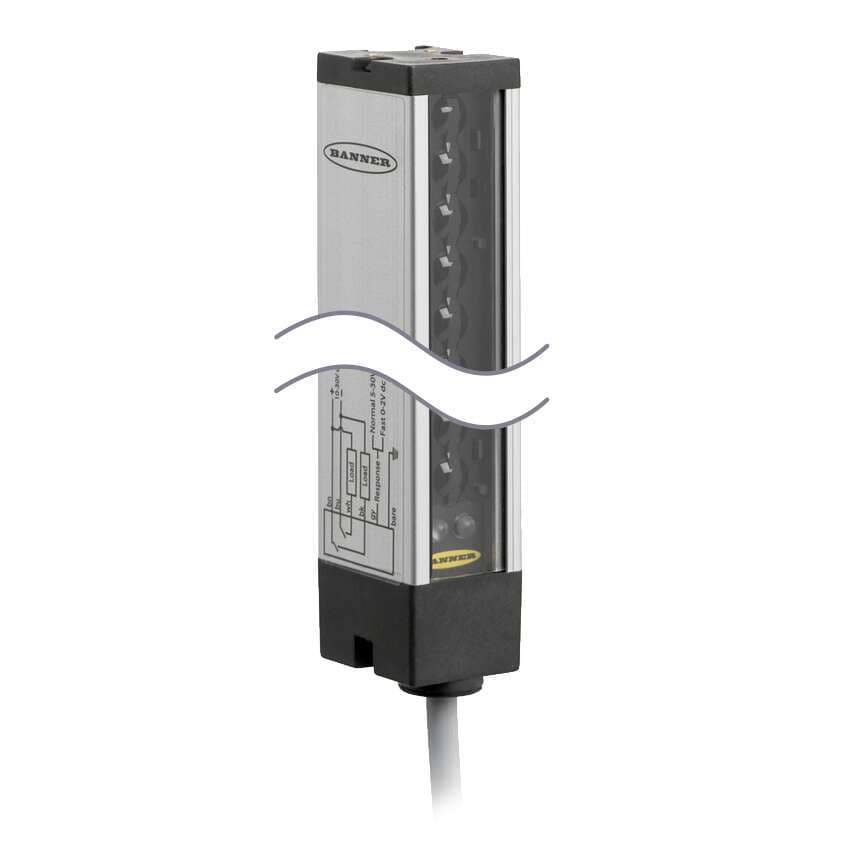

Banner Engineering LX30EQ-34249 is a sensor array designed for standard-range part-sensing with a light screen cross-hatched array, functioning as an emitter alone. It features a 762mm array length within a rectangular shape, constructed from an aluminium housing with an acrylic lens and die-cast zinc end caps. This part is pre-wired with a 6" / 150mm pigtail terminated with a 5-pin Euro-style M12 connector. It operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. The net dimensions are 807mm in height, 26mm in width, and 32mm in depth. It is designed to operate within an ambient air temperature range of -20 to +70°C and offers a degree of protection rated at IP65. The sensing distance ranges from 30cm to 2m, and it can detect objects as small as 9.5mm.
