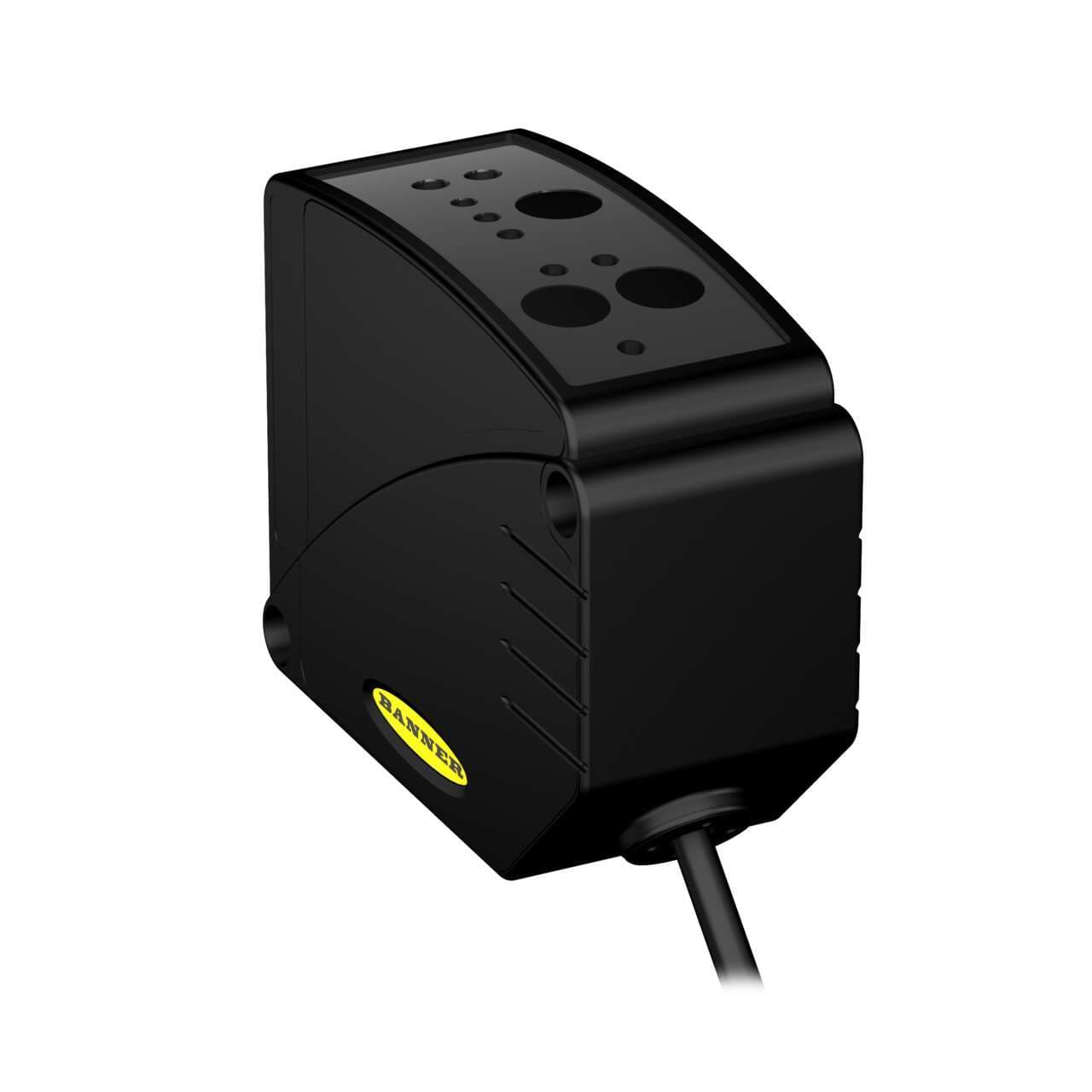

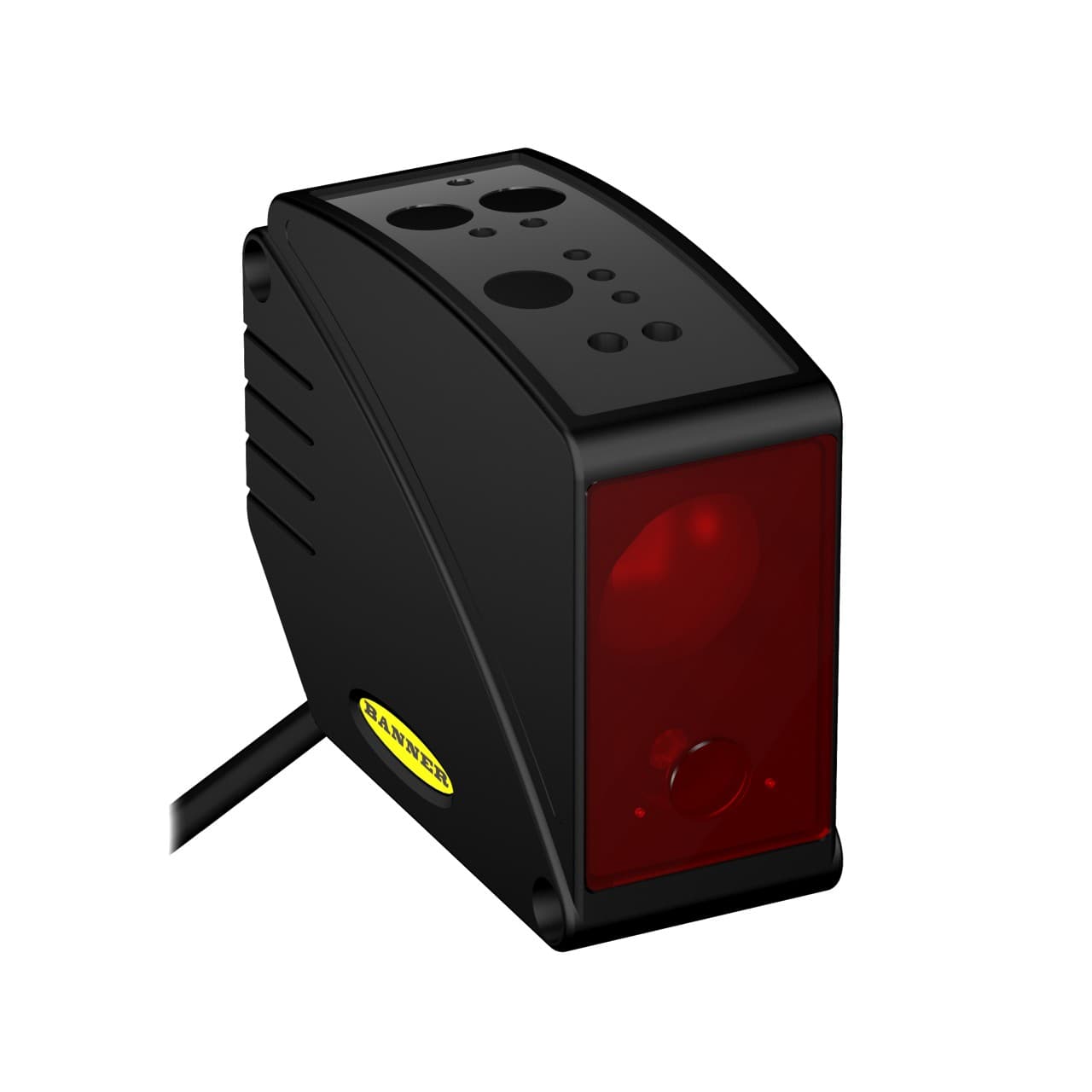

LT3PULV Banner Optical Sensors

Product Details

• Weight
  426.37648 g
• Country Of Origin
  US
• SSI
  No
• Max Off-state Leakage Current (µA)
  5
• Profibus
  No
• RS-422
  No
• RS-232
  No
• 1-wire Serial Interface
  No
• Feature: Remote Teach
  Yes
• Wireless
  No
• RS-485
  No
• PROFINET
  No
• Max Ambient Light (Lux)
  5000
• Typical Laser Lifetime (Hours)
  75000
• IO Link
  No
• Common Ethernet Protocol
  No
• Feature: Timing (Hold/Delay)
  No
• Feature: Chemical Resistant
  No
• Supply Protection Circuitry
  Protected against reverse polarity and transient overvoltages
• Power/Current Consumption (exclusive of load)
  108 mA max @ 24 V dc
Laser Control
Yes
Discrete Output Hysteresis (mm)
6
Remote Teach and Laser Control Input Impedence
18 kΩ min. (65 kΩ min at 5 V dc)
Minimum Window Size (mm)
40
Analog Linearity (mm)
+/- 60 mm from 0.5 to 50 m
Spot Size (@ Reference Distance)
6 mm
Warm-up Time (minutes)
30
Minimum Response Time (ms)
1
Window Material
Acrylic
Max Op. Relative Humidity Non-Condensing (%)
90 at 50°C
Max Operating Temperature (°C)
50
NEMA Rating
NEMA 6
IP Rating
IP67
Output Protection
Protected against short circuit conditions
Discrete (Switched) Outputs
1 PNP
Max Discrete (Switched) Output (mA)
100
Output Saturation Voltage PNP Outputs
< 1.2 V at 10 mA; < 1.6 V at 100 mA
Temperature Effect (mm/°C)
3 mm/°C
Analog Voltage Output Rating
2.5 kΩ min. load impedance
Adjustments
Push Button; Remote Teach
Sensing Beam Wavelength (nm)
658
Delay at Power-up (ms)
1000
Number of Pins
8
Power Supply
12-24 V dc
Analog Output Configuration
0-10 V dc
Minimum Sensing Distance (mm)
500
Analog Resolution/Discrete Repeatability
5 to 6 at slow response speed
Max Sensing Distance (mm)
50000
Quick Disconnect Type
No QD
Indicator
LED(s)
Connection
Flying Leads
Input/Output
Analog & Discrete
Laser Classification
Class 1
Max Measurement Range
>20 m
Housing Style
Rectangular
Device Type
Sensor
PC Configurable
No
Primary Housing Material
ABS
Cable Length (m)
2
Power
DC
Sensing Mode (General)
Retroreflective
Sensing Mode (Detailed)
Time of Flight
Sensing Beam
Visible Red Laser
Primary brand
Banner Engineering
Sub-range name
L3 Retro Time-of-Flight
Design
retro-reflective time-of-flight system
Product series / family name
L-GAGE series
Shape
Rectangular
Order code / Manufacturer SKU
67273
Main function
Sensor (Distance)
Functions
Class 1 Laser photo-electric distance sensor/transmitter green LED (power ON) yellow LED (output state) TEACH mode
Light Color
Visible red
Digital outputs
1 x digital output (PNP transistor)
Protection functions
Short-circuit
Sensing distance
50cm...50m
Ambient air temperature for operation
+50 °C
Supply voltage (DC)
12Vdc-24Vdc
Wavelength
658 nm
Analog outputs
1 x analog output (0-10Vdc)
Material
ABS housing Acrylic window
Connection type
Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
Degree of protection
IP67 NEMA 6

Related documents LT3PULV Specs
