LEDRRV75PM Banner Vision Accessories

LEDRRV75PM on Powermatic Associates
Banner

Part#:LEDRRV75PM

Manufacturer:Banner

Alt. Part#:806062

Product Lifecycle:Active

Get a quick Quote!

VE Series Sealed IP67 Ring Light; Visible Red LED; 24 V dc; Polycarbonate Window; 3-pin M8 QD; Connects to VE Smart Camera; 75 mm Length

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDRRV75PM Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    512.55896 g
  • Country Of Origin
    MX
  • Color Technology
    Standard LED
  • Physical Dimensions (LxWxH or DxH mm)
    98.0 x 75.8
  • Supply Voltage
    24 V DC
  • Max Current Color (mA)
    270
  • Number of Input Pins/Conductors
    3
  • Min Op. Temperature (°C)
    -20
  • Feature: Quick Disconnect
    Yes
  • Max Op. Temperature (°C)
    50
  • Device Type
    Ring Light
  • QD Type/Cable Length
    350 mm; M8 (Pico)
  • Housing Style
    Round
  • Color
    Red
  • Connection Type
    Pigtail QD
  • Primary Housing Material
    Aluminum
  • Power
    DC
  • Window Material
    Polycarbonate

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDRRV75PM Description

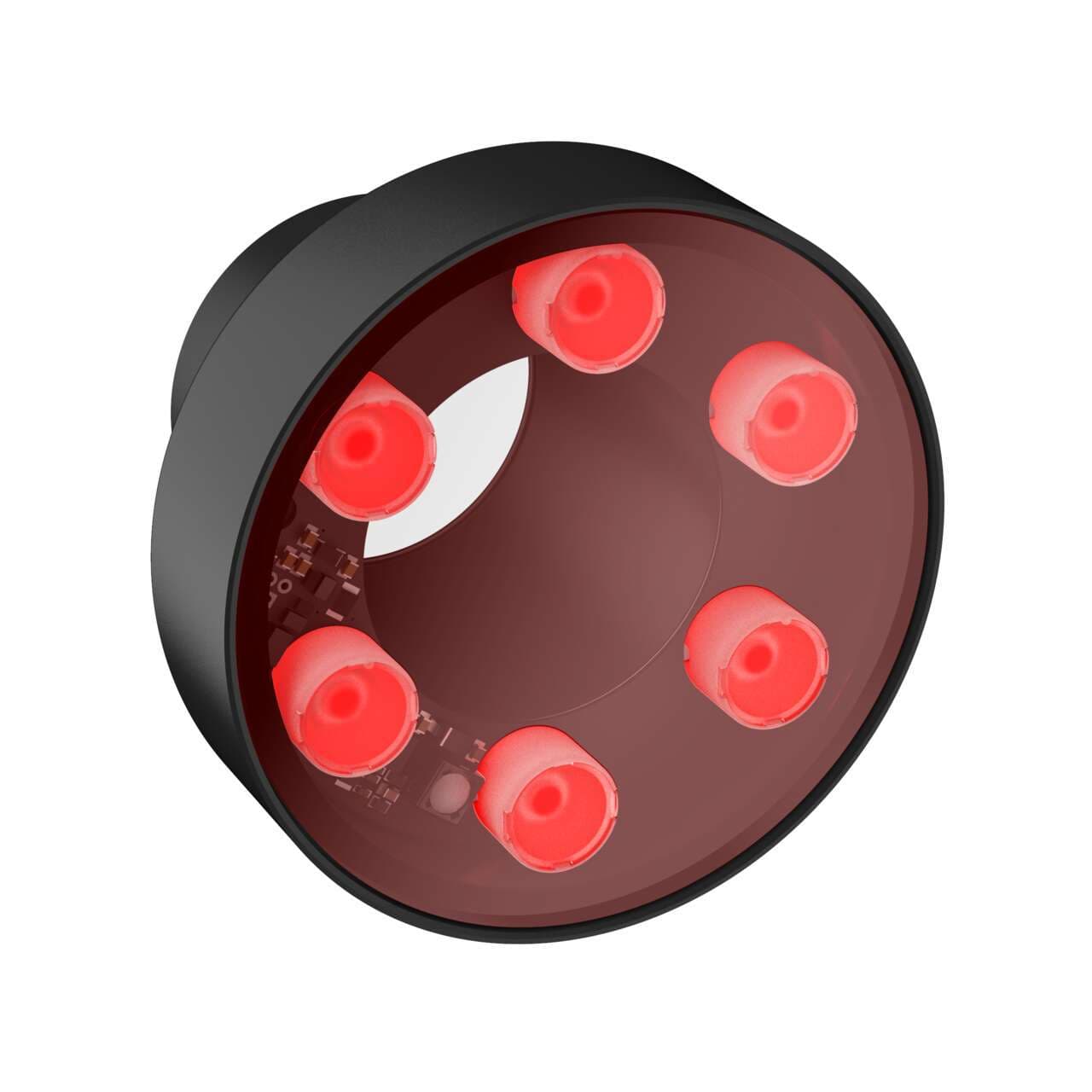

Banner Engineering LEDRRV75PM is a sealed high-intensity ring illumination light designed for various applications requiring focused illumination. This unit features visible red light emitted from a circular arrangement, housed in durable aluminum with a polycarbonate (PC) window for protection. It comes pre-wired with a 350mm pigtail that terminates in a 3-pin Pico-style M8 connector, facilitating easy and secure connections. The LEDRRV75PM operates on a 24Vdc supply voltage and is designed with a 98mm ring diameter. It is rated with a degree of protection of IP67, indicating its capability to withstand dust and immersion in water, making it suitable for challenging environments.

Related documents LEDRRV75PM Specs

LEDRRV75PM 208788.pdf
