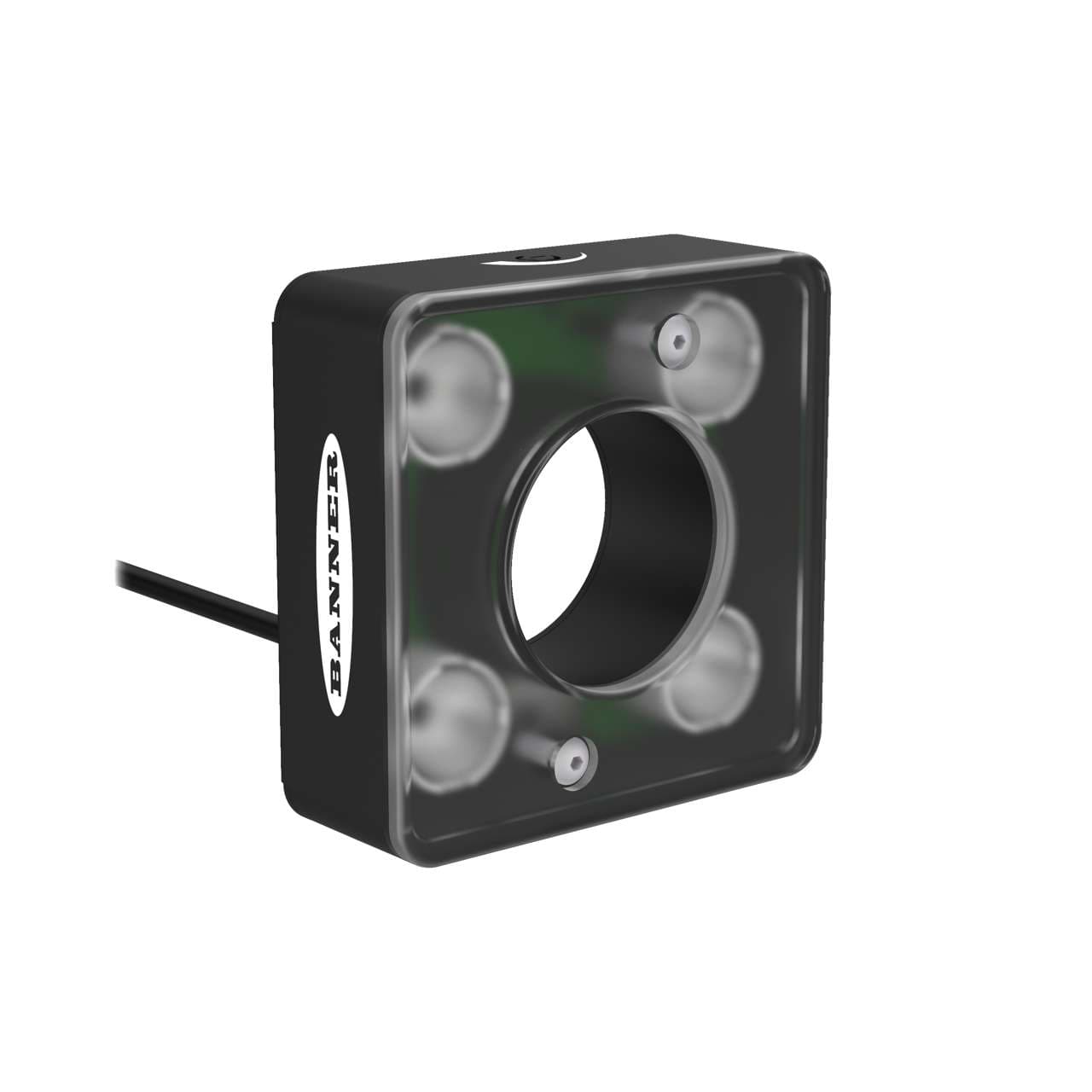

Banner LEDRR70XD5-XM LEDRR70XD5-XM Ring Light High Intensity w/o POT - Red
Banner

Part#:LEDRR70XD5-XM

Manufacturer:Banner

Alt. Part#:17265

Product Lifecycle:Active

Get a quick Quote!

LEDRR70XD5-XM Ring Light High Intensity w/o POT - Red

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDRR70XD5-XM Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    274.876752 g
  • Country Of Origin
    US
  • Physical Dimensions (LxWxH or DxH mm)
    76.2 x 76.2 x 38.7
  • Power
    DC
  • Supply Voltage
    24 V DC
  • Max Current Color (mA)
    350
  • Max Op. Temperature (°C)
    50
  • Primary Housing Material
    Anodized Aluminum
  • Window Material
    Acrylic
  • Connection Type
    Pigtail QD
  • Number of Input Pins/Conductors
    3
  • Color Technology
    Standard LED
  • Device Type
    Ring Light
  • Housing Style
    Rectangular
  • QD Type/Cable Length
    300 mm; M8 (Pico)
  • Color
    Red

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDRR70XD5-XM Description

Banner Engineering LEDRR70XD5-XM is an illumination unit designed for ring illumination light applications. It features a fixed intensity with a built-in P4 bracket for high-intensity lighting. The dimensions of the unit are 70x70mm, and it emits visible red light. Its shape is rectangular with a ring passage that has a diameter of 38.4mm / 3". The housing is made of black anodized aluminum with a frosted acrylic window and a black anodized bracket, ensuring durability. It comes pre-wired with a 300mm pigtail that terminates with a 3-pin Pico-style M8 connector for easy installation. The unit operates on a 24Vdc supply voltage.

Related documents LEDRR70XD5-XM Specs

LEDRR70XD5-XM 153910.pdf
