LEDRLA290XP6-PHQ Banner Vision Accessories

LEDRLA290XP6-PHQ on Powermatic Associates
Banner

Part#:LEDRLA290XP6-PHQ

Manufacturer:Banner

Alt. Part#:81791

Product Lifecycle:Active

Get a quick Quote!

LINEAR ARRAY RED ACRYLIC 1 FT DIMMABLE ACT.HIGH

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDRLA290XP6-PHQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    816.4656 g
  • Country Of Origin
    MX
  • Physical Dimensions (LxWxH or DxH mm)
    332.6 x 59.4 x 32.6
  • Feature: Quick Disconnect
    Yes
  • Max Op. Temperature (°C)
    50
  • Lens Focusing Angle (°)/Field of View
    6.5
  • Supply Voltage
    24 V DC
  • Max Current Color (mA)
    1000
  • Color Technology
    Standard LED
  • Number of Input Pins/Conductors
    5
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Device Type
    Bar Light
  • Connection Type
    Integral QD
  • Window Material
    Acrylic
  • Intensity Adjustment
    Potentiometer and Analog
  • Primary Housing Material
    Anodized Aluminum
  • Color
    Red
  • Housing Style
    Linear Strip
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDRLA290XP6-PHQ Description

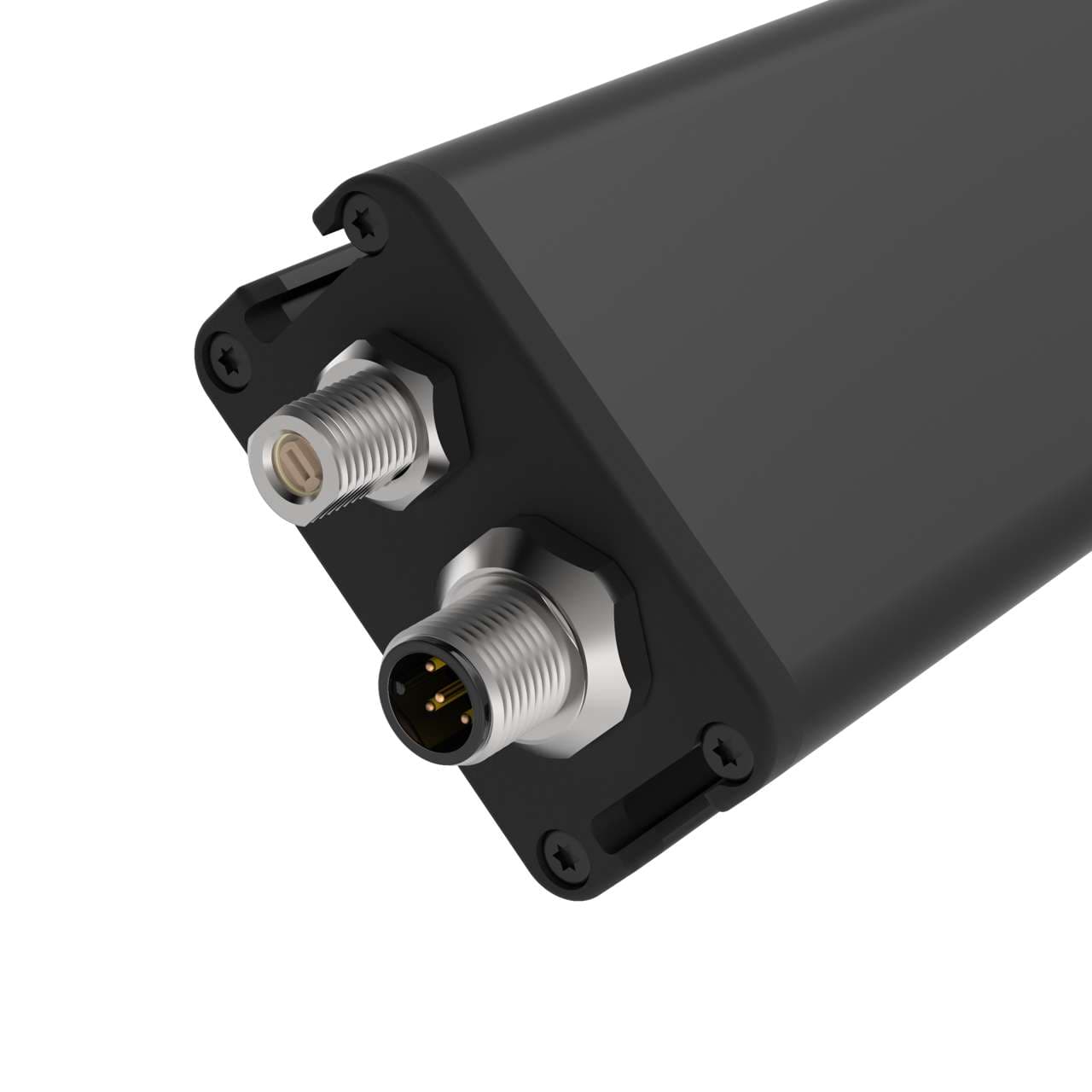

Banner Engineering LEDRLA290XP6-PHQ is an illumination unit designed for linear array illumination backlight applications. It features intensity adjustment capabilities, allowing for dimming via a potentiometer or analog input, and delivers high-intensity visible red light. The unit measures 290mm in array length and is housed in black anodized aluminum with a clear acrylic window, shaped in a rectangular form. It comes pre-equipped with a 5-pin Euro-style M12 connector for connectivity. The LEDRLA290XP6-PHQ operates on a 24Vdc supply voltage and offers a degree of protection rated at IP50. It includes 1 x digital input (24Vdc; high-polarity) for strobe control and 1 x analog input (0-10Vdc) for intensity control.

Related documents LEDRLA290XP6-PHQ Specs

LEDRLA290XP6-PHQ 150944.pdf
