LEDILB145XW6-XQ Banner Vision Accessories

LEDILB145XW6-XQ on Powermatic Associates
Banner

Part#:LEDILB145XW6-XQ

Manufacturer:Banner

Alt. Part#:29659

Product Lifecycle:Active

Get a quick Quote!

Vision Light-Linear Back Light 145 mm; Voltage: 24 V dc; Environmental Rating: IP50 Color: Infrared; 5-pin M12 QD

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDILB145XW6-XQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    453.592 g
  • Country Of Origin
    MX
  • Physical Dimensions (LxWxH or DxH mm)
    187.1 x 59.4 x 32.6
  • Color Technology
    Standard LED
  • Feature: Quick Disconnect
    Yes
  • Supply Voltage
    24 V DC
  • Max Op. Temperature (°C)
    50
  • Max Current Color (mA)
    500
  • Color
    Infrared
  • Primary Housing Material
    Anodized Aluminum
  • Connection Type
    Integral QD
  • Number of Input Pins/Conductors
    5
  • Device Type
    Linear Array Backlight
  • Housing Style
    Linear Strip
  • Power
    DC
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Window Material
    Acrylic

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDILB145XW6-XQ Description

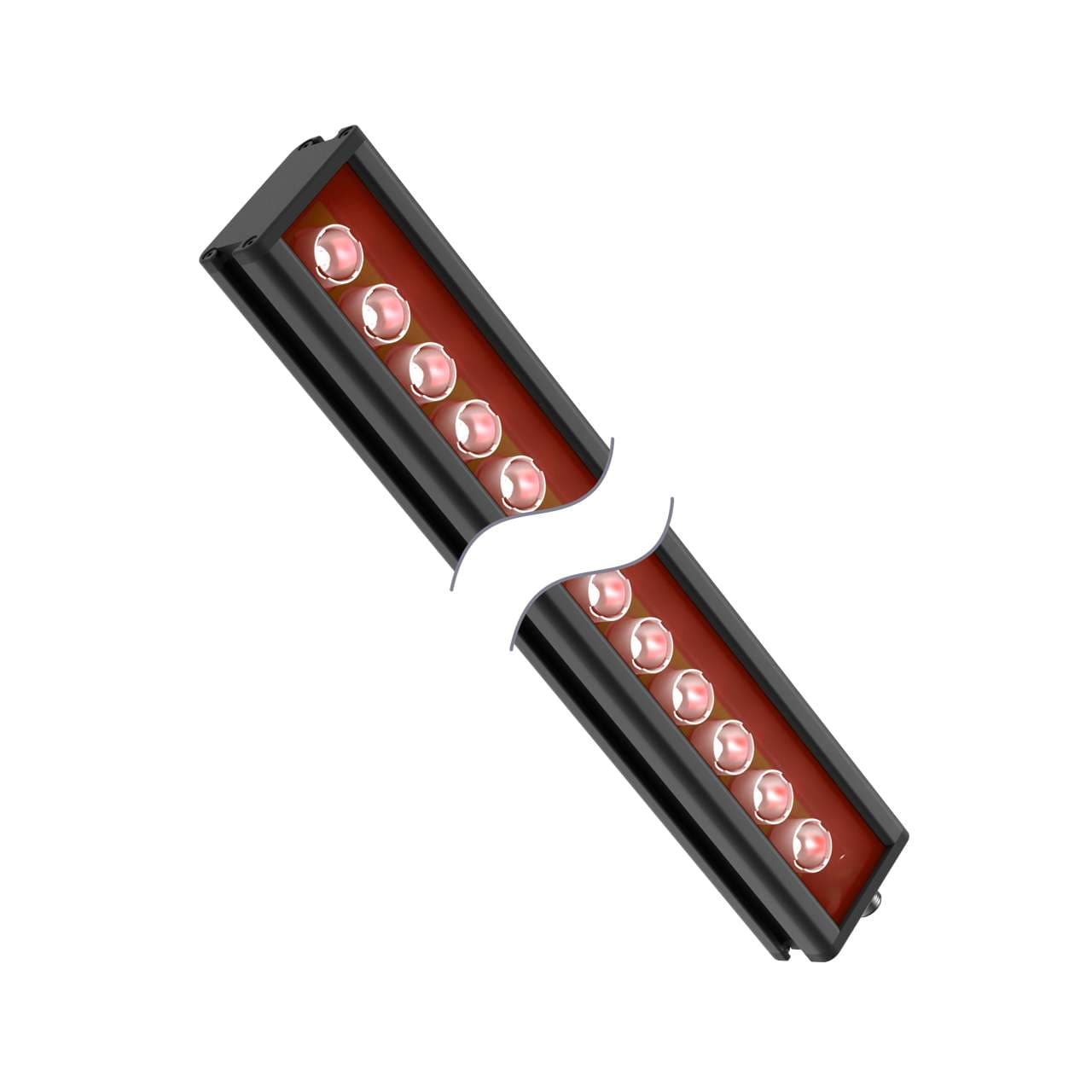

Banner Engineering LEDILB145XW6-XQ is an illumination unit designed for linear array illumination backlight applications. It features a high-intensity design with a 145mm / 5.7" array length. The light color is infrared (IR), and it has a rectangular shape. The unit is constructed with a black anodized aluminum housing and a white acrylic window. It comes pre-equipped with a 5-pin Euro-style M12 connector for connectivity. The supply voltage required for operation is 24Vdc, and it has a degree of protection rated at IP50.

Related documents LEDILB145XW6-XQ Specs

LEDILB145XW6-XQ 166314.pdf

Manufacturer warranty

$480.00

Request a quote, and we will send availability within minutes.

Select Qty:

$480.00

$480.00 each
