LEDILA870XD6-XQ Banner Vision Accessories

LEDILA870XD6-XQ on Powermatic Associates
Banner

Part#:LEDILA870XD6-XQ

Manufacturer:Banner

Category:Vision Accessories

Alt. Part#:14978

Product Lifecycle:Active

Get a quick Quote!

Vision Light - 870 mm Linear Array - IP50; 36 High Intensity IR LEDs - 24 V dc; Diffusing Plastic Window; Requires Cable MQDC20-xxx

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDILA870XD6-XQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    2063.8436 g
  • Country Of Origin
    MX
  • Lens Focusing Angle (°)/Field of View
    6.5
  • Max Op. Temperature (°C)
    50
  • Supply Voltage
    24 V DC
  • Physical Dimensions (LxWxH or DxH mm)
    914.6 x 59.4 x 32.6
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Max Current Color (mA)
    3000
  • Color Technology
    Standard LED
  • Connection Type
    Integral QD
  • Window Material
    Diffuse Acrylic
  • Number of Input Pins/Conductors
    5
  • Color
    Infrared
  • Primary Housing Material
    Anodized Aluminum
  • Device Type
    Bar Light
  • Housing Style
    Linear Strip
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDILA870XD6-XQ Description

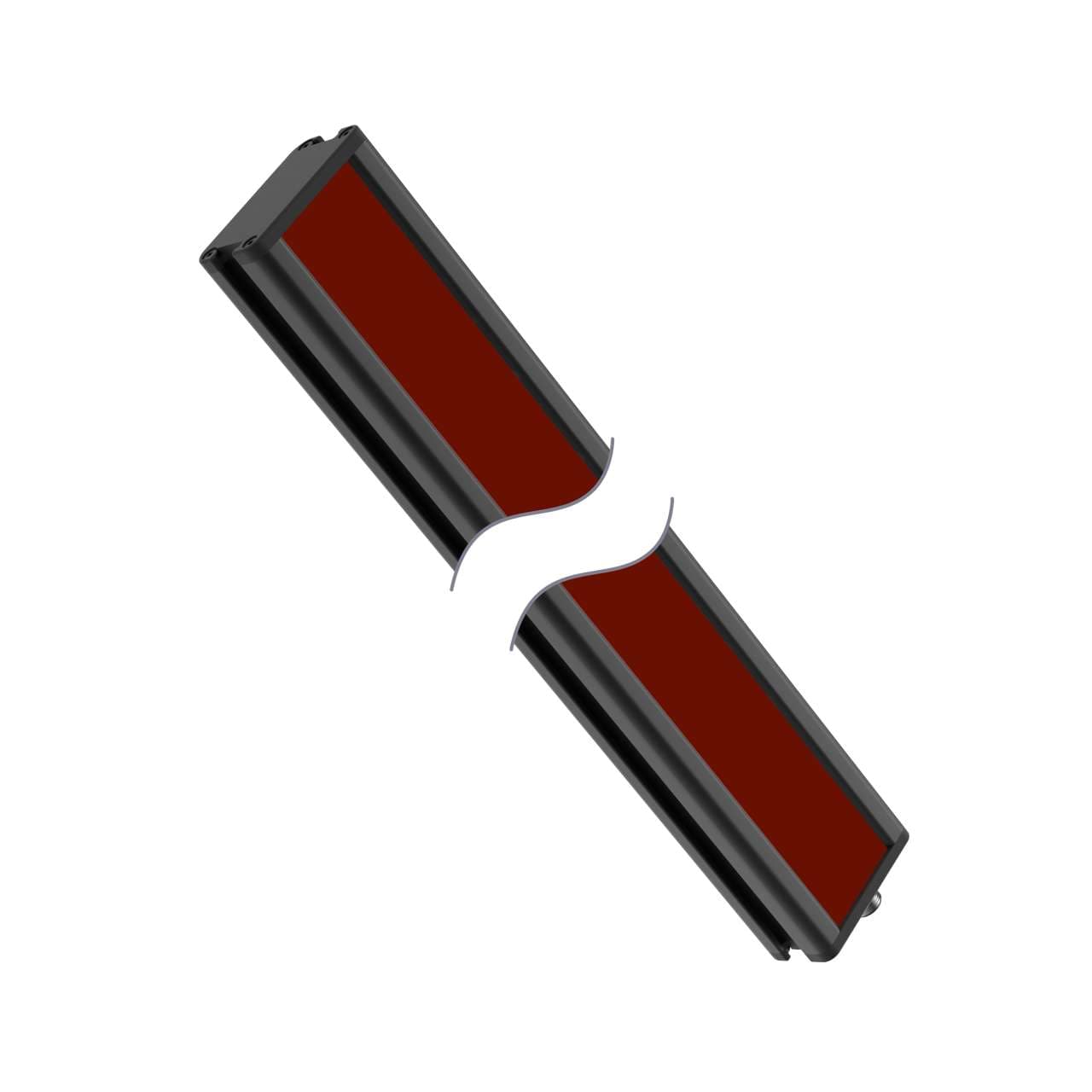

Banner Engineering LEDILA870XD6-XQ is an illumination unit designed for linear array illumination backlight applications. It features a high-intensity design with an 870mm (34.2 inches or approximately 3 feet) array length. The unit emits light in the infrared (IR) spectrum and has a rectangular shape. It is constructed with a black anodized aluminum housing and a diffused acrylic window. This model is pre-equipped with a 5-pin Euro-style M12 connector for connectivity. It operates on a 24Vdc supply voltage and has an IP50 degree of protection.

Related documents LEDILA870XD6-XQ Specs

LEDILA870XD6-XQ 151466.pdf

Manufacturer warranty

$2,782.00

Request a quote, and we will send availability within minutes.

Select Qty:

$2,782.00

$2,782.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
