LEDILA870XD6-PLQ Banner Vision Accessories

LEDILA870XD6-PLQ on Powermatic Associates
Banner

Part#:LEDILA870XD6-PLQ

Manufacturer:Banner

Alt. Part#:82671

Product Lifecycle:Active

Get a quick Quote!

LINEAR ARRAY IR ACRY DIFF DIMM AVTIVE LOW 3 FT

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDILA870XD6-PLQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    1995.8048 g
  • Country Of Origin
    US
  • Color Technology
    Standard LED
  • Number of Input Pins/Conductors
    5
  • Max Op. Temperature (°C)
    50
  • Max Current Color (mA)
    3000
  • Feature: Quick Disconnect
    Yes
  • Supply Voltage
    24 V DC
  • Lens Focusing Angle (°)/Field of View
    6.5
  • Physical Dimensions (LxWxH or DxH mm)
    914.6 x 59.4 x 32.6
  • Housing Style
    Linear Strip
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Connection Type
    Integral QD
  • Intensity Adjustment
    Potentiometer and Analog
  • Color
    Infrared
  • Primary Housing Material
    Anodized Aluminum
  • Device Type
    Bar Light
  • Power
    DC
  • Window Material
    Diffuse Acrylic

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDILA870XD6-PLQ Description

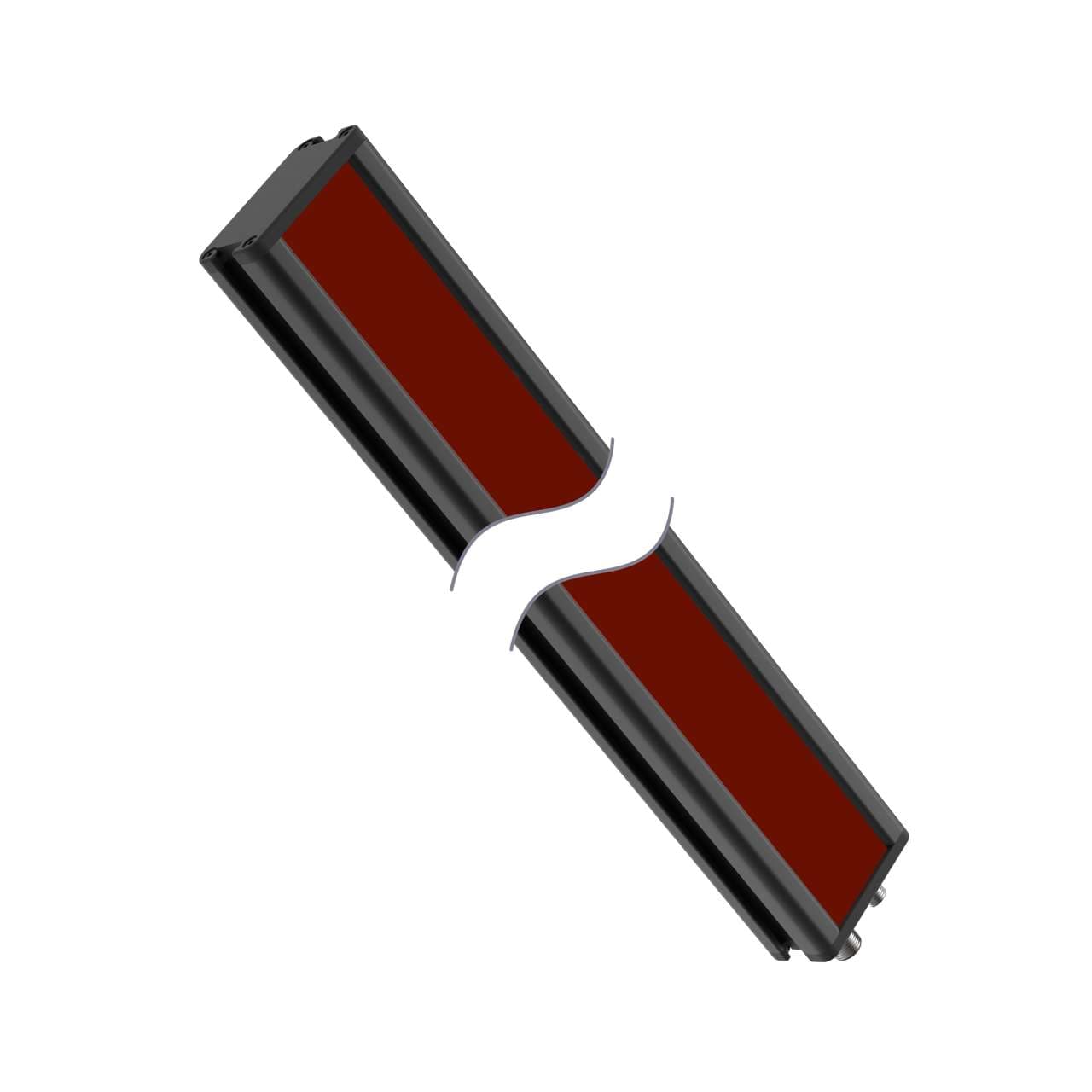

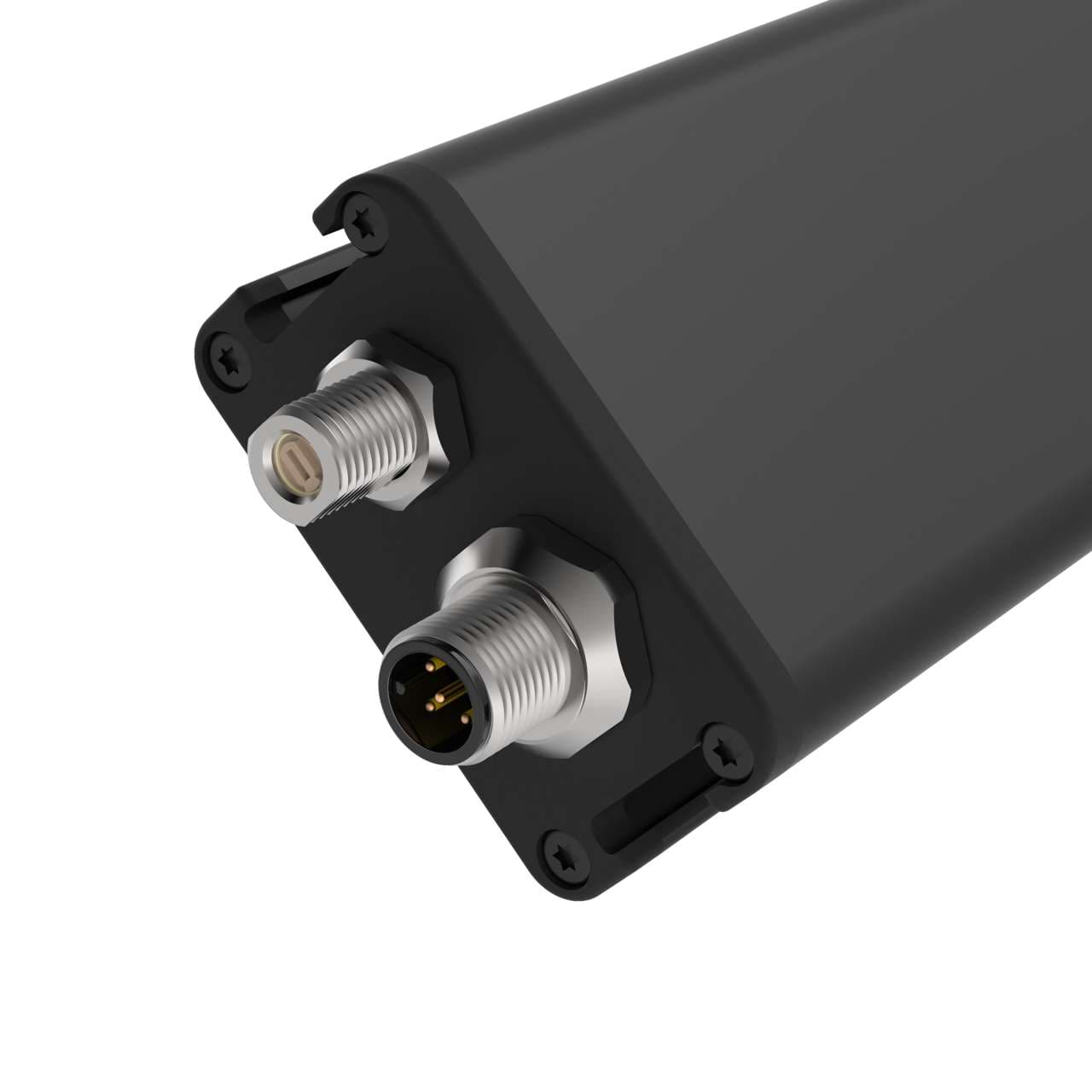

Banner Engineering LEDILA870XD6-PLQ is an illumination unit designed for linear array illumination backlight applications. It features intensity adjustment capabilities, allowing for dimming via a potentiometer or analog input, and delivers high-intensity lighting. The unit measures 870mm in length and is equipped with an infrared (IR) light source. Its rectangular shape is encased in a black anodized aluminum housing with a diffused acrylic window. For connectivity, it comes pre-equipped with a 5-pin Euro-style M12 connector. The LEDILA870XD6-PLQ operates on a 24Vdc supply voltage and offers a degree of protection rated at IP50. It includes 1 x digital input (24Vdc; low-polarity) for strobe control and 1 x analog input (0-10Vdc) for intensity control.

Related documents LEDILA870XD6-PLQ Specs

LEDILA870XD6-PLQ 150944.pdf
